Key Features:

• ECU Read/Write functions.
• EEPROM, IROM, and XROM memory operations (where supported).
• ECU programming via OBD / Boot / Bench / Tricore modes.
• Automatic K-Line and CAN communication detection.
• ECU recovery functions after failed programming.
• TPROT protected ECU programming support (for supported models).
• Checksum correction functions.
• Supports VAG Simos PCR and Simos 8 unlocking with external EEPROM.
• Wide ECU coverage for VAG, BMW, Mercedes-Benz, PSA, Renault, Fiat, and other vehicle brands.

Supported Operating Systems:

• Windows 7 (32/64 bit)
• Windows 10 (64 bit)

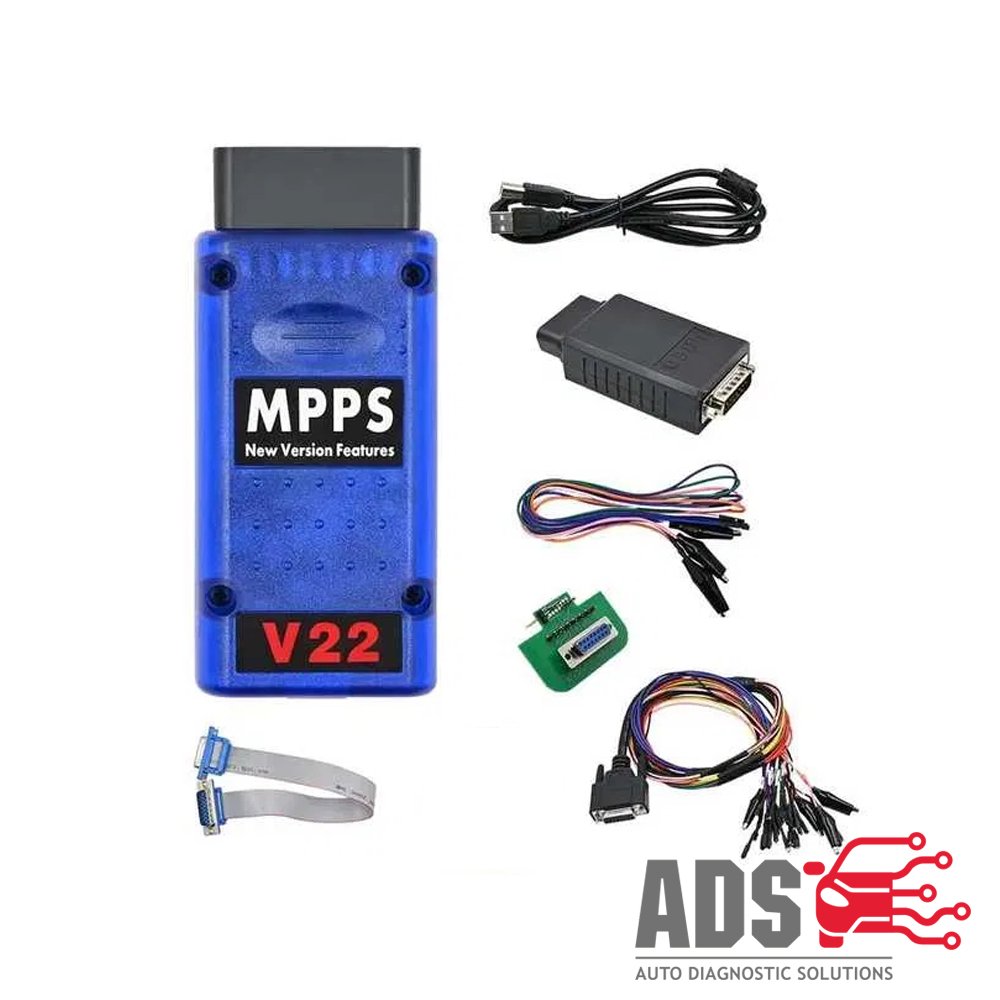

MPPS V22 Tricore Adapter Features:

• BOSCH Tricore ECU programming support.
• Boot mode programming.
• Bench programming without vehicle connection.
• Professional ECU connection adapters included.

Professional Solution:

MPPS V22 Master is designed for ECU cloning, software updating, chip tuning, and professional engine control unit programming applications.

Main Features:

• Advanced ECU recovery functions. In some cases, MPPS can recover ECUs where other tools cannot establish communication.
• On certain controllers, it can work even when no program is present in memory (blank memory).
• Selectable full or partial reading and writing when supported by the ECU.
• Adjustable reading and writing speed.
• “Changes Only” writing function for faster programming (when supported by the ECU).
• Automatic K-Line / CAN communication detection.
• Option to bypass automatic detection and force the preferred communication method.
• Temporary immobilizer bypass for bench flashing of ME7 systems.
• Boot Mode support for ECUs using C167 and ST10 processors.
• EEPROM read/write functions for supported ECU types.

Supported Vehicle Brands:

Alfa Romeo, Audi, Bentley, BMW, Chevrolet, Chrysler, Citroen, Dodge, Ducati, Fiat, Ford, Generic, Holden, Honda, Hyundai, Isuzu, Iveco, Jaguar, Jeep, Kia, KTM, Lancia, Land Rover, London Taxis International, Mazda, MCC-Smart, Mercedes-Benz, MG, Mini, Mitsubishi, Nissan, Opel, Peugeot, Renault, Porsche, Volkswagen, Volvo, Vauxhall, Seat, Saab.

Tricore Boot + OBD Unlock Module Features

• TPROT / DS Check function to test whether TPROT protection is active without opening the ECU.
• Automatic ECU and processor type detection – no manual selection required.
• Read/Write of EEPROM, IROM, and XROM memories (where supported).
• OBD flash unlock function for TPROT ECUs in Boot Mode (currently supports VAG only).
• Supports unlocking of VAG Simos PCR and Simos 8 using external EEPROM.
• Checksum correction support:
  • Bosch MEDC17 IROM and EEPROM.
  • Simos PCR and Simos 8.
  • SID208, SID209, SID305, SID807 IROM.

New Features:

• Bosch Service Mode support for reading passwords on ECUs using TP12+ protection.
• Special file utility for creating OBD unlock files from VAS FRF/SGO containers.
• Enables complete OBD operation on locked ECUs (original flash containers required).
