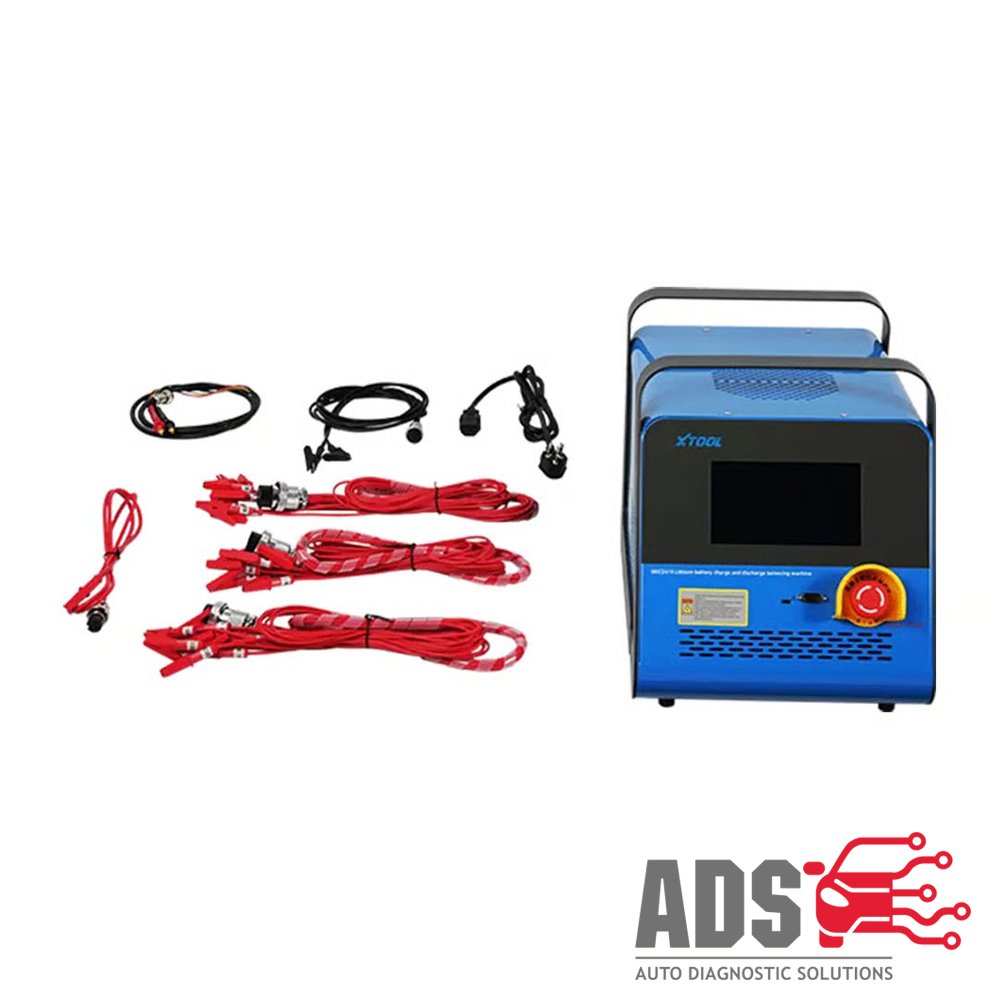

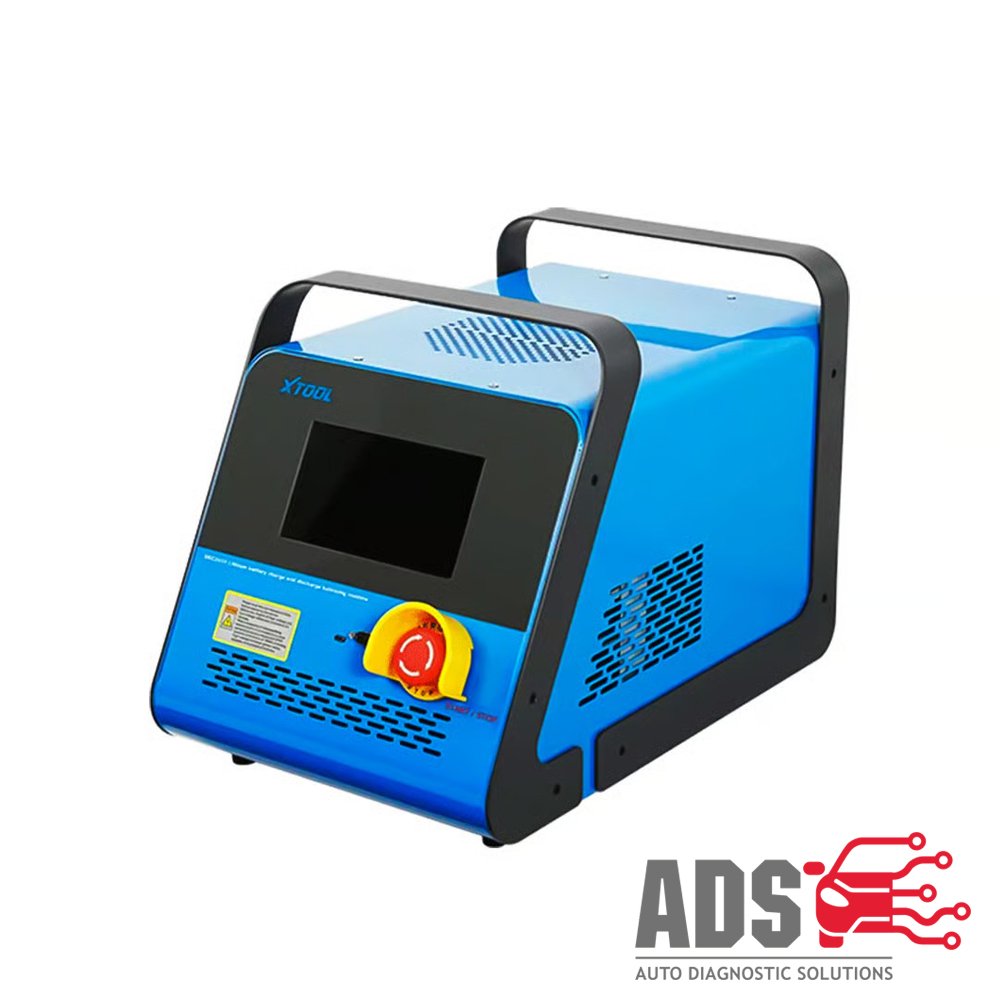

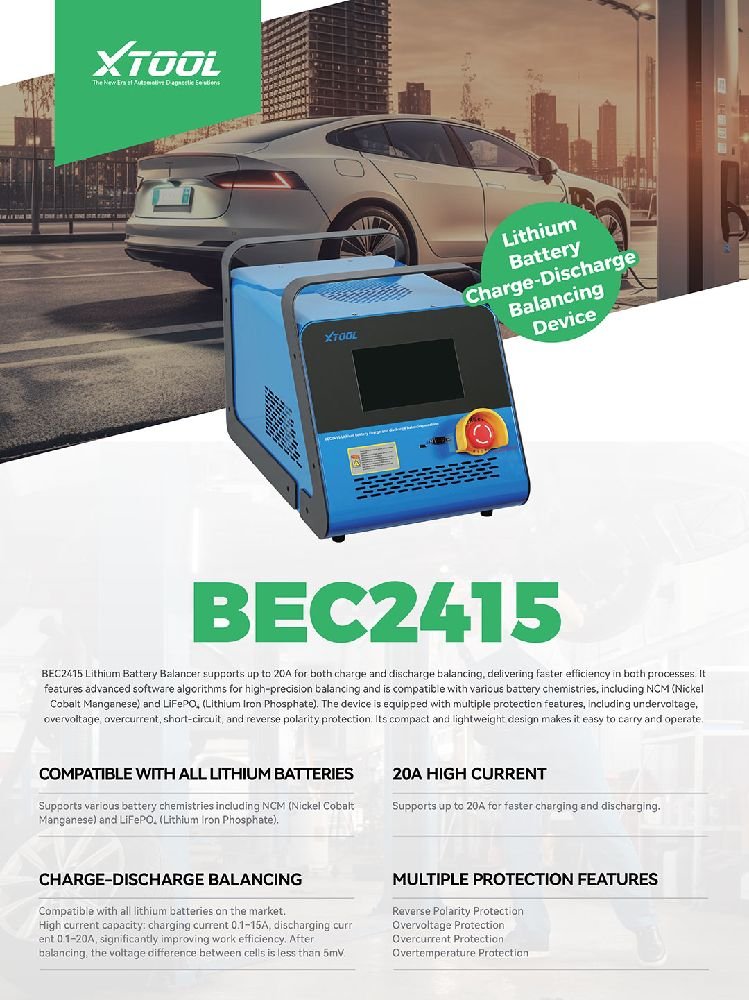

XTOOL BEC2415 EV Lithium Battery Equalizing Device

Key Features

• Lithium battery charge and discharge balancing.
• Automatic balancing mode selection.
• Built-in battery internal resistance testing.
• High-precision cell voltage measurement (±1 mV).
• Supports Lithium-ion (NCM) and LiFePO₄ battery packs.
• Maximum charging balance current: 15 A.
• Maximum discharging balance current: 20 A.
• High-definition color display.
• ARM Cortex-M3 processor.
• USB firmware update support.

Protection Functions

• Over-voltage protection.
• Under-voltage protection.
• Over-current protection.
• Short-circuit protection.
• Reverse polarity protection.
• Emergency Stop button for enhanced safety.

Technical Specifications

• Single-cell voltage range: 0–5 V.
• Voltage measurement accuracy: ±1 mV.
• Maximum discharge balancing current: 20 A.
• Maximum charge balancing current: 15 A.
• Internal resistance measurement accuracy: 0.5%.
• Power supply: 220 VAC / 50 Hz.
• Operating temperature: -10°C to +40°C.
• Dimensions: 425 × 306 × 344 mm.
• Weight: 15.5 kg.
