Key Features

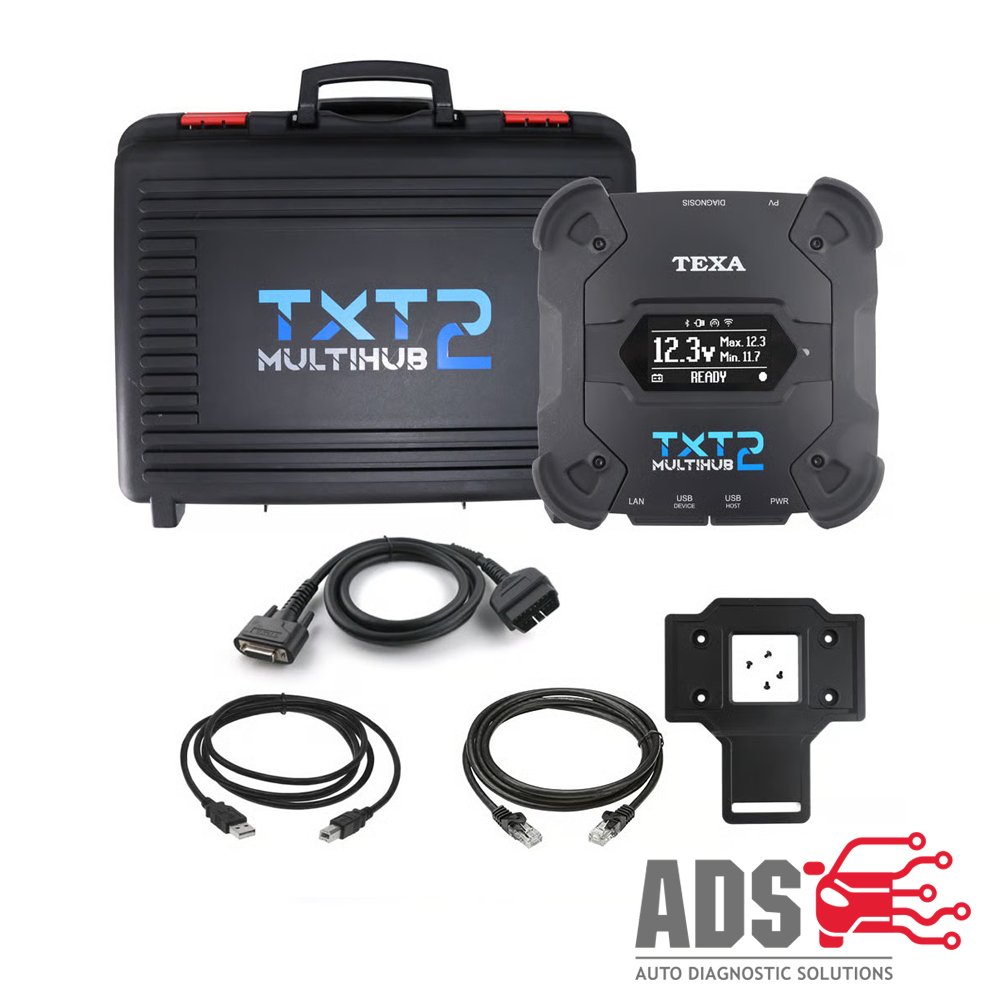

- Professional TEXA NAVIGATOR TXT MULTIHUB 2 diagnostic interface
- Full Truck Activation for extended heavy-duty vehicle diagnostics
- Designed for trucks, trailers and commercial vehicles
- Also supports cars, motorcycles, boats, agricultural and construction machinery
- Integrated 2.42″ backlit OLED display
- Real-time vehicle battery voltage monitoring
- CAN FD support with 4 channels
- Integrated DoIP (ISO 13400), including wireless DoIP via Wi-Fi
- Pass-Thru SAE J2534-1 / J2534-2
- Bluetooth and Wi-Fi connectivity
- USB connection for diagnostics and Pass-Thru
- Ethernet connection for DoIP diagnostics
- Automatic communication mode management
- Remote diagnostics capability
- Rugged reinforced housing
- IP53 protection rating
- Impact resistance tested according to MIL-STD 810G
Advanced Connectivity
TXT MULTIHUB 2 supports multiple communication modes:
- Wi-Fi – standard CAN, CAN FD and DoIP diagnostics
- Ethernet – DoIP diagnostics
- USB – diagnostics and Pass-Thru
- Bluetooth – conventional diagnostics
Its integrated Linux operating system intelligently manages communication channels according to the selected diagnostic mode.
DoIP and CAN FD
The integrated DoIP (Diagnostic over Internet Protocol) technology enables diagnostics on modern vehicles using Ethernet-based communication.
CAN FD provides higher data-transfer efficiency and supports up to 4 CAN FD channels, making the interface suitable for modern vehicle electronic systems.
Pass-Thru J2534
TXT MULTIHUB 2 supports SAE J2534-1 and SAE J2534-2 Pass-Thru standards. This allows compatible OEM software to communicate directly with vehicle control units, including ECU software update procedures.
Diagnostic Software
The interface is designed for use with TEXA IDC6 diagnostic software. Together with the appropriate TEXPACK subscription, IDC6 provides access to continuously updated vehicle coverage, diagnostic functions and support for new vehicle models.
Technical Specifications
Processor: iMX6, 1 GHz
RAM: 512 MB DDR3L
Internal storage: 8 GB eMMC
Power supply: 12–24 V DC
Display: OLED, 64 × 128 pixels, 2.42″
Bluetooth: BDR/EDR/LE
Wi-Fi: IEEE 802.11 b/g/n, 2.4 GHz
USB: USB 2.0 Host Type-A + USB 2.0 Device Type-B
Diagnostic connector: DSUB-26HD, ISO 22900-1
DoIP: Ethernet ISO 13400-3
Pass-Thru: SAE J2534-1 / J2534-2
CAN FD: 4 channels
Weight: approx. 600 g
Protection rating: IP53
Operating temperature: 0–50 °C
Dimensions: 176.1 × 175.4 × 46.8 mm
Main Supported Protocols
- CAN ISO 11898-2 High Speed
- CAN FD ISO 11898-2:2016
- CAN ISO 11898-3 Low Speed
- CAN SAE J2411 Single Wire
- SAE J1850 PWM
- SAE J1850 VPW
- ISO 9141-2
- ISO 14230
- SAE J1708
- SAE J2534-1
- Ethernet DoIP ISO 13400
- K / L Line
- Blink Codes
Applications
TEXA NAVIGATOR TXT MULTIHUB 2 is particularly suitable for professional workshops requiring one versatile diagnostic interface for:
- Trucks and heavy-duty vehicles
- Trailers and semi-trailers
- Passenger cars
- Motorcycles
- Agricultural machinery
- Construction equipment
- Boats
The Full Truck Activation provides extended TEXA heavy-duty vehicle diagnostic coverage, depending on the activated software and subscription.
