Multi-Language: English
Quality: Genuine
System updates: Available (12 Months free!)
Internet connections: Available
Warranty: 12 months
Manufacturer: OBDSTAR
OBDSTAR DC706 Highlights:
- Stand-alone without PC
- The tool this most closely resembles is IO Terminal. But it costs a third of the full version I/O Terminal.
- Clone car and motorcycle BCM, ECU, TCU, RFH modules.
- Supports MJD 8F2, MJD 8F3, MJD 6F3, IAW 8GF, 8GSF, 7GF, 9GF, 9GV, 10GF Cloning
- Supports GPEC2 GPEC2A GPEC3 GPEC4 read, write, clone in boot mode
- Supports Fiat RFH BCM clone, DSG clone, GM Acdelco GM E39 E39A E80 E84 E83 E90 etc clone
- 1 year free update online: OBDSTAR DC706 Full update subscription cost: Get 40% discount when purchasing your update subscription within 7 days of the expiration date or before the subscription expires
- Supports OBD, bench and boot mode
- User-friendly: Record every step you perform, showing wiring diagram and instruction guide
- Add DSG mileage reset functions for DQ380(0DE), DQ500(0DE), DQ381(0DE)
- Support checksum function, for the models with “Support CS”, that means it support the checksum function
- Does not clone VAG DQ250 before year 2008.
- Please follow OBDSTAR DC706 register manual to register it before your usage. OBDSTAR DC706 Distributor code: 0086A002
- OBDSTAR DC706 update frequently, please update the device to newest version before you test cars

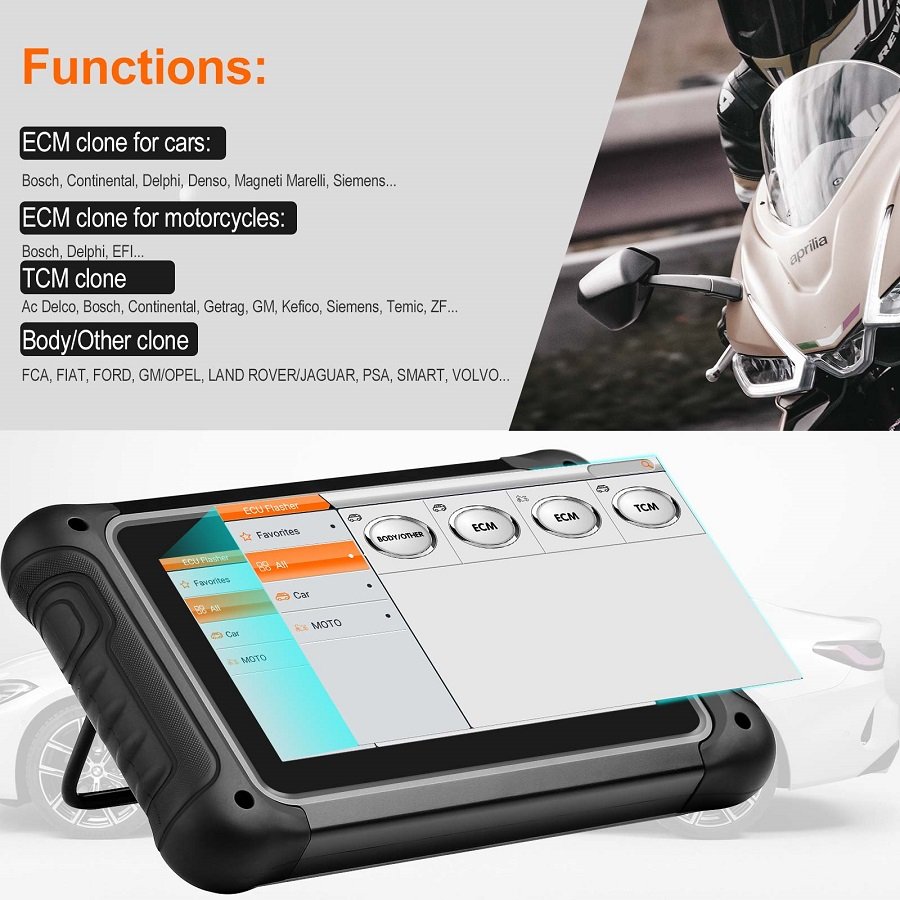

OBDSTAR DC706 Full Function:
- ECU Clone/ AlI by OBD,BENCH,BOOT,BDM or JTAG
- ECM clone for cars(Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens…)
- ECM clone for motorcycles(Bosch, Delphi, EFI…)
- TCM clone(Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF…)
- Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO…)
ECM:
OPELMarelli Multijet MJD 6O2 1.3 CAN Z13DTH MPC563+M58BW 016DB+95320 R/W EXT eeprom, R/W EXT flash, R/W INT flash
BUICK/CADILLAC/CHEVROLET/FERRARI/HOLDEN/OPEL/PONTI AC/SATURN MED9.6.1 AM29BDD160G (S29CD016J(G) Spansion) R/W EXT flash, R/W EXT eeprom
RENAULT SIEMENS SIRIUS 34 AM29F400BB Clear IMMO Code(IMMO OFF)
HYUNDAI /KIA SIEMENS/CONTINENTAL SIM2K-250(MT) TC1782 R/W INT eeprom, R/W INT flash
TCM:
CADILLAC /CHEVROLET /GMC BOSCH T93 SPC5888 R/W INT eeprom, R/W INT flash
HYUNDAI /KIA BOSCH GS14 MPC561/562(M58BW016-B) R/W EXT flash
LAND ROVER /JAGUAR /CHRYSLER /DADGE /JEEP /HONDA /ACURA /FIAT ZF 9HP R/W INT eeprom, R/W INT flash(BOOT)
Supported ECU Manufacturers:
ACDELCO
ALPS
ATE
AUTOLIV
BOSCH
CONTINENTAL
DELPHI
DENSO
DENSO DECE1C
EFI
GETRAG
GM
JC
KEFICO
LEAR
MAGNETI MARELLI
MARELLI
SIEMENS
SIMTEC
TEMIC
VALEO
VISTEON
YAZAKI
ZF
Supported Brands:
Car
ASTON MARTIN
BMW
FAW
FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT…)
FORD/LINCOLN
GM/OPEL
HYUNDAI/KIA
LAND ROVER/JAGUAR
LUXGEN
MASERATI
MAZDA
MITSUBISHI
NISSAN
OPEL
PSA
SMART
SUBARU
SUZUKI
VOLVO
VW/AUDI/SEAT/SKODA
Motorcycle:
APRILIA
BRP
CFMOTO
DERBI
GILERA
GUZZI
ITALJET
PEUGEOT
PIAGGIO
QJBENELLI
VESPA
Advanced Functions:
- R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery…
- Support 1880+ ECM types(Partial functions require P003 adapter.)
- Support 470+ TCM types
- Support 170+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM…)
- Support VW DQXXX (TCM) calibrate mileage
- Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
- Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
- Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
- Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
- Support automatic identification
- Strong help data files
- All by OBD or Bench mode
More functions in developing…
Specifications:
Operation system: Android 5.1.1
CPU: RK3128 quad-core ARM cortex A7
Battery: 3700mA, rechargeable polymer lithium battery
Extension memory card: 32G micro SD (TF) card supported
Storage capacity: 16GB
LCD: 7.0 inch
LCD resolution: 1024*600
Touch screen: Capacitive touch screen
Wifi: Supported
Working temperature: -20℃~55℃ (14℉~131℉)
Storage temperature: -20℃~70℃ (-4℉~158℉)
Weight: About 1.3kg
Dimension: 243mm*148mm*36mm

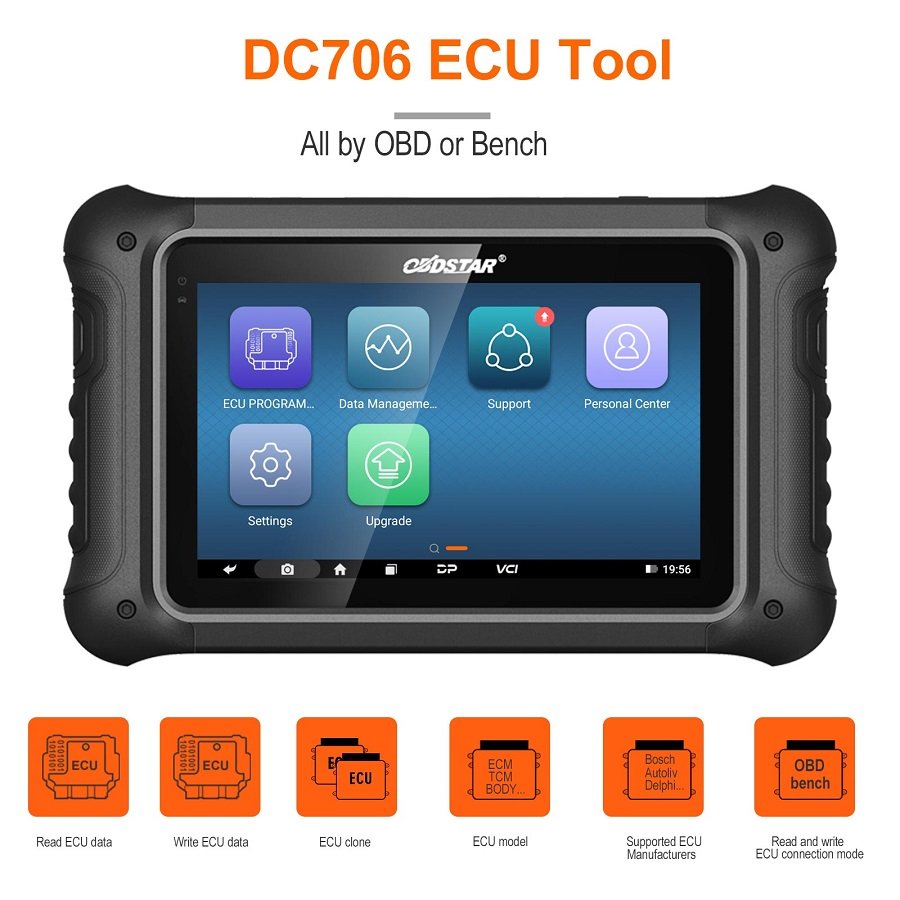

OBDSTAR DC706 ECU Flasher Function Display:

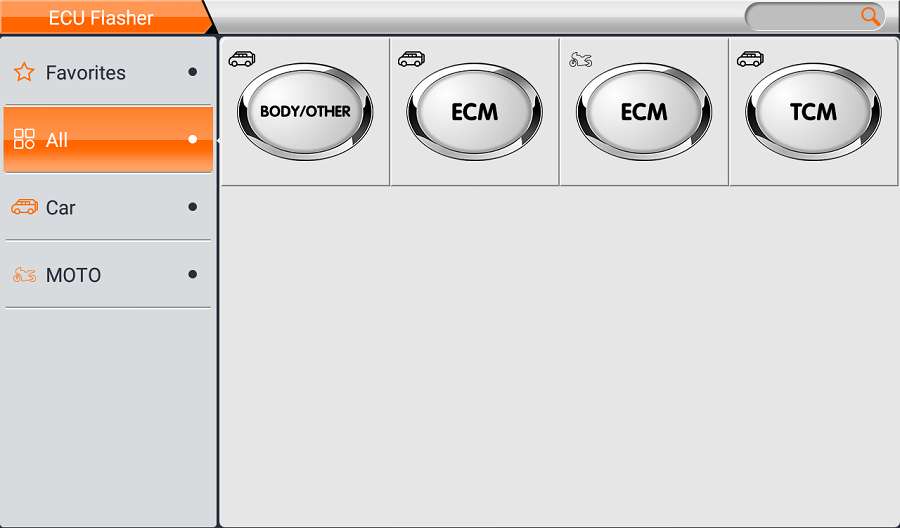

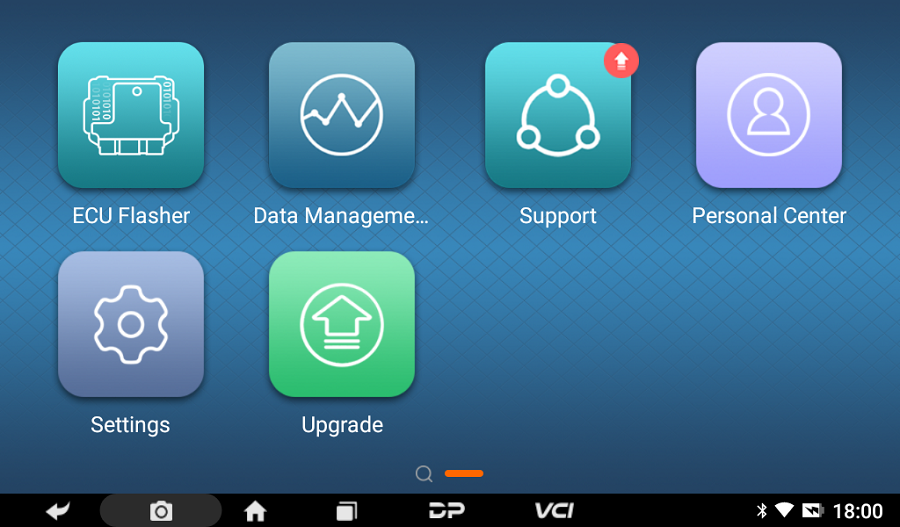

1) Main Page/Brand Supported

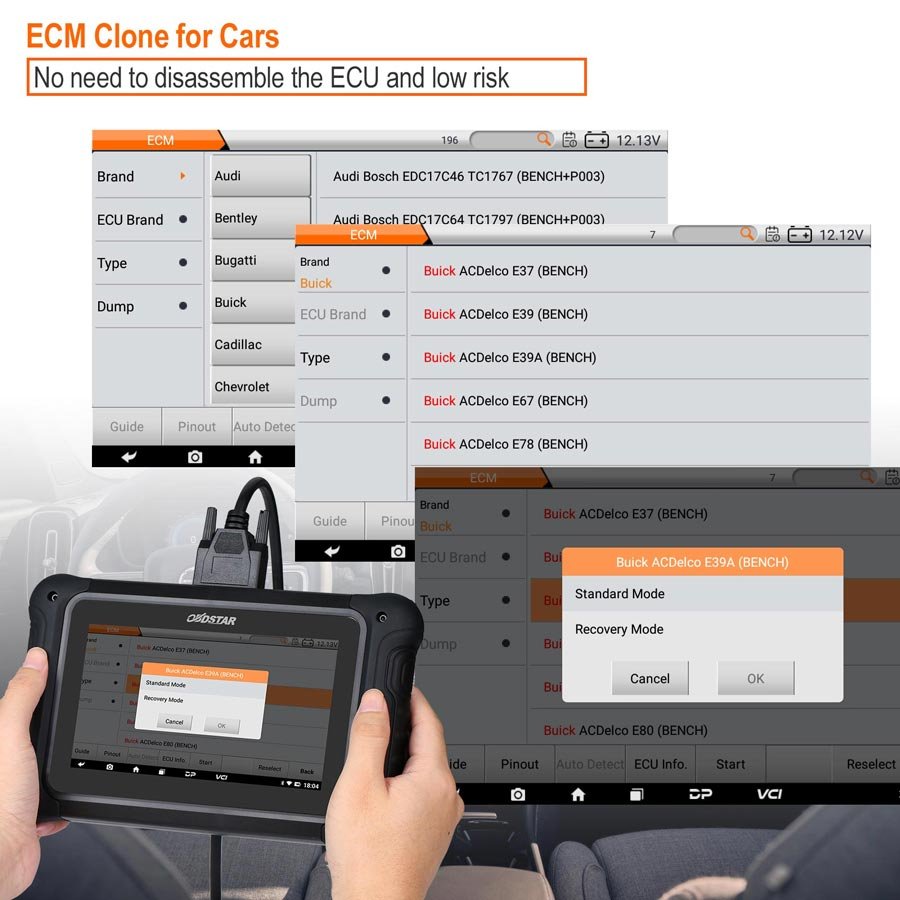

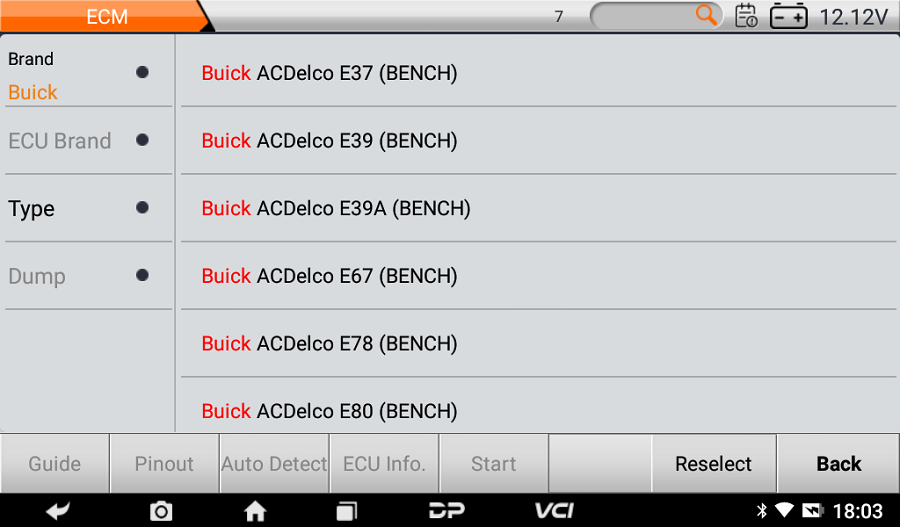

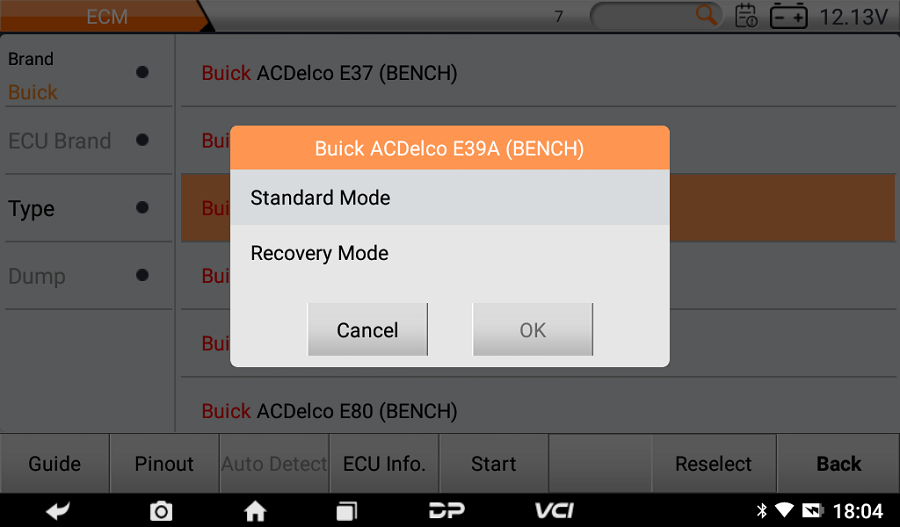

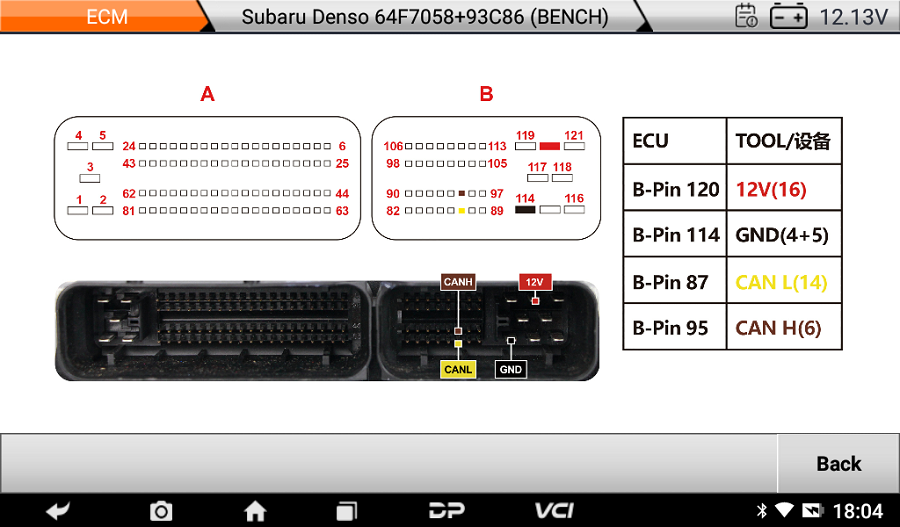

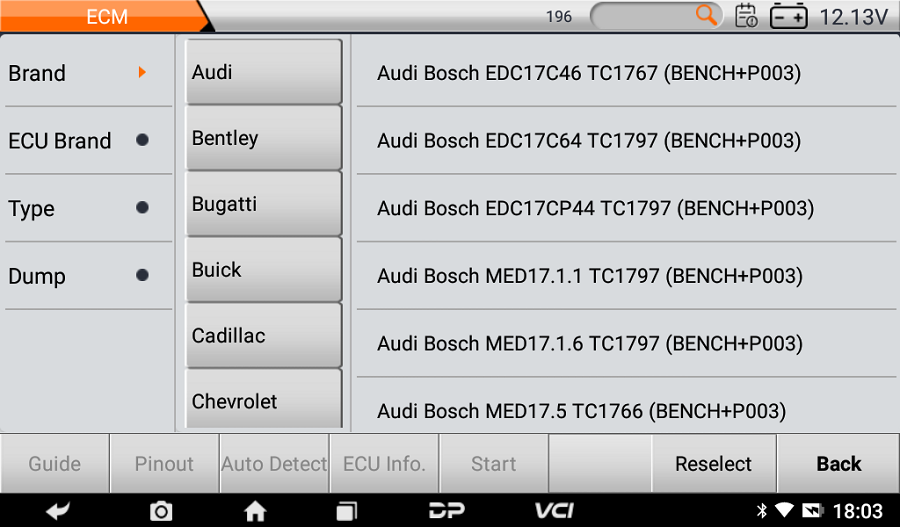

2) ECM Clone for Cars

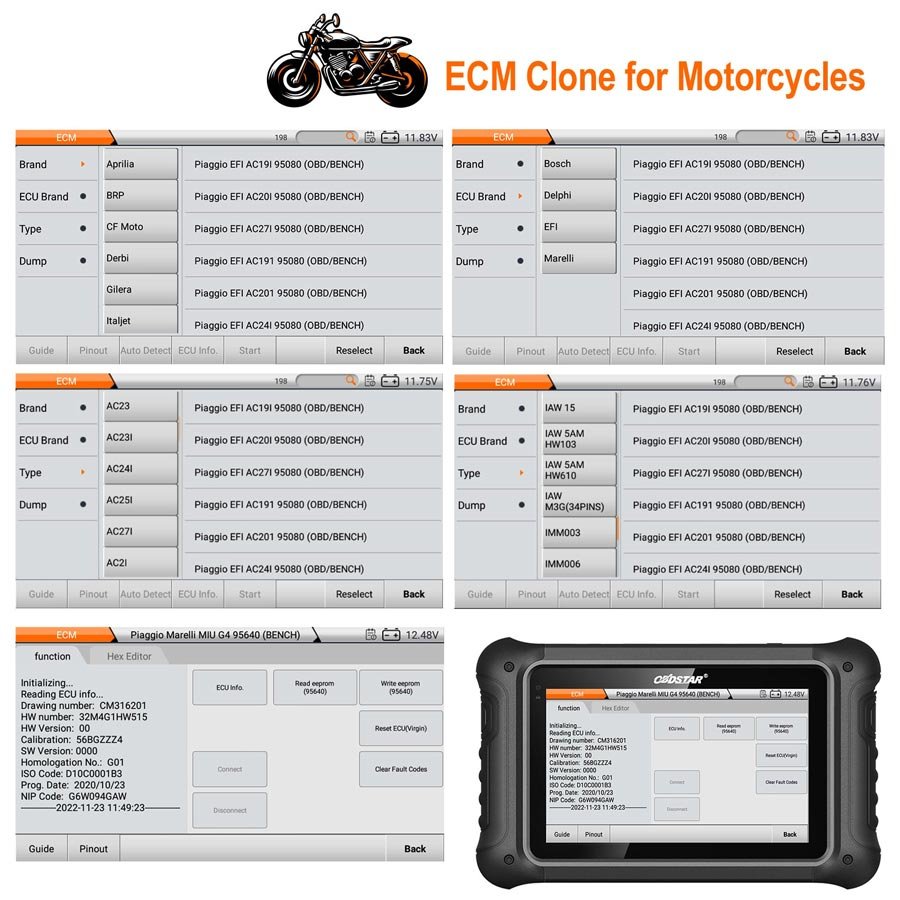

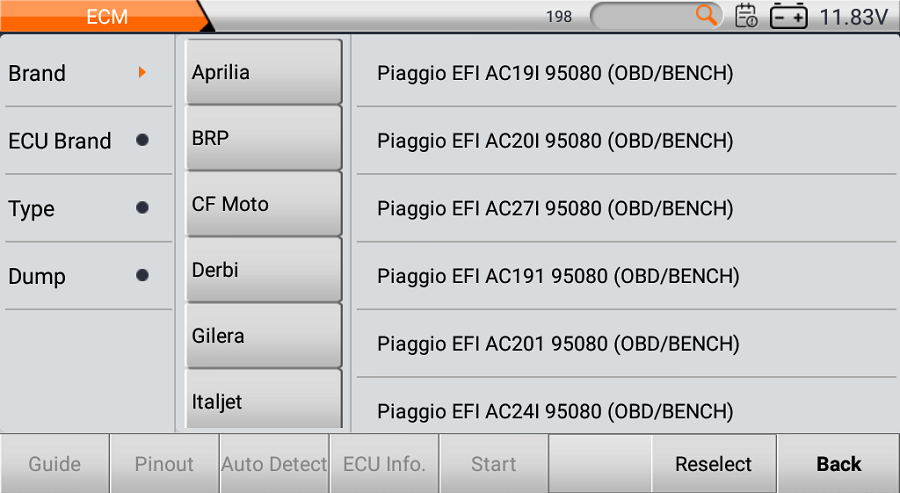

3) ECM Clone for Motorcycles

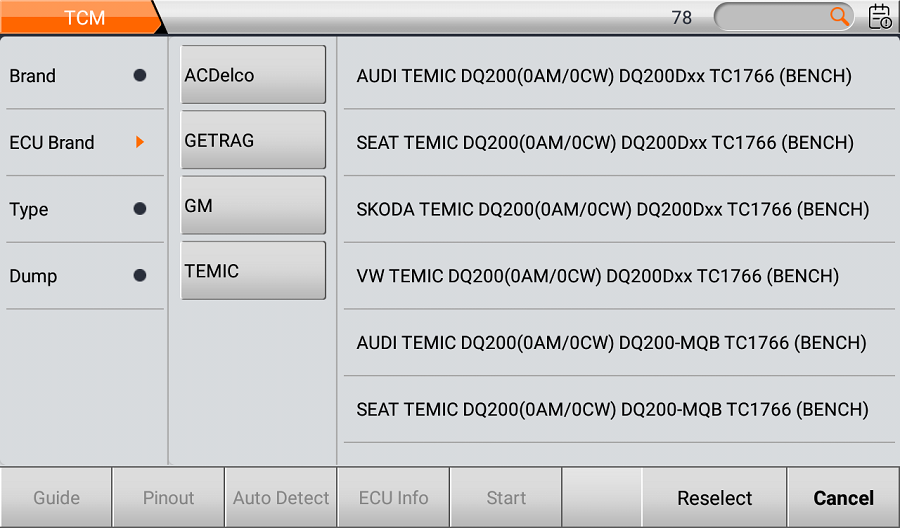

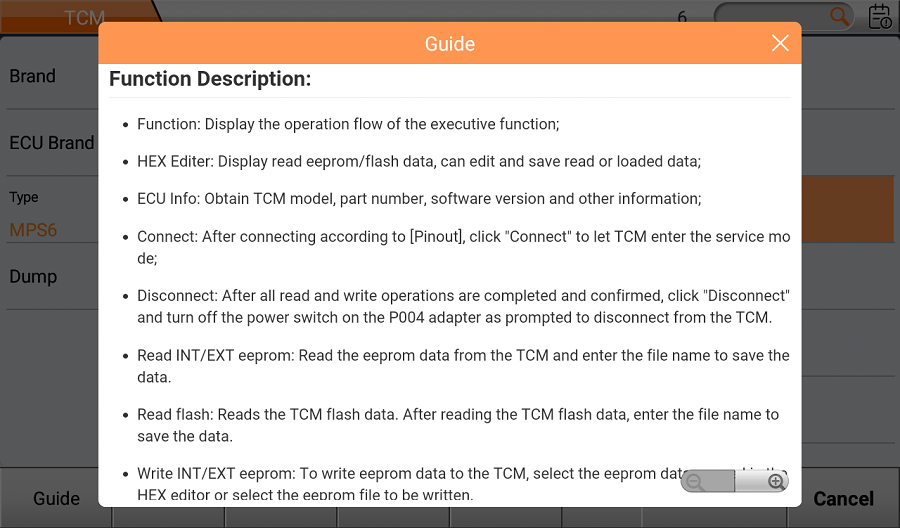

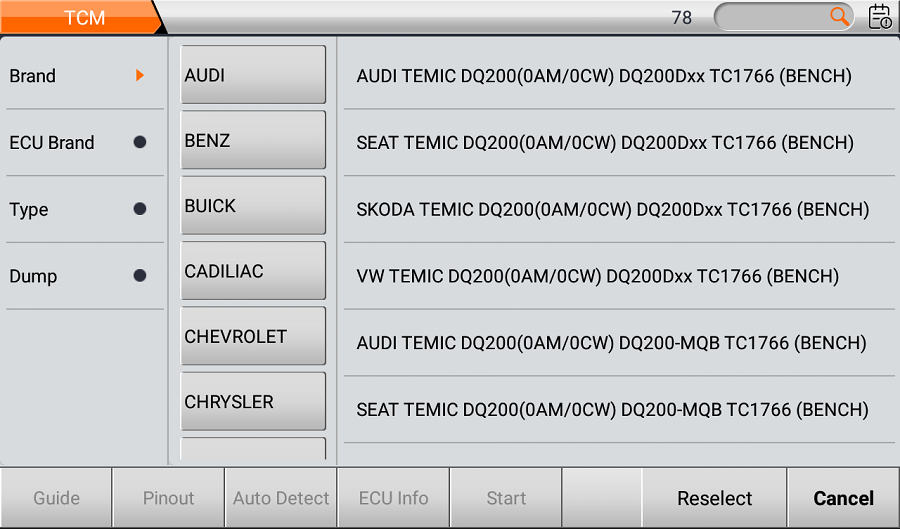

4) TCM Clone

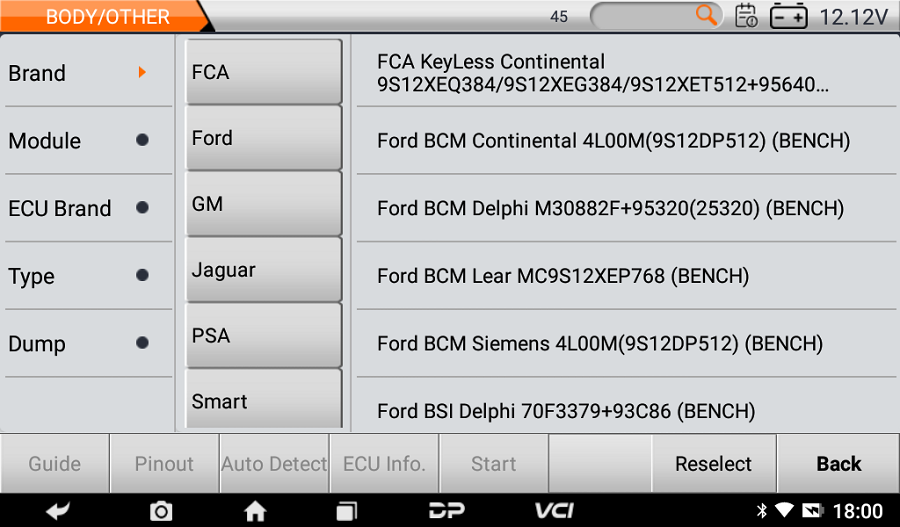

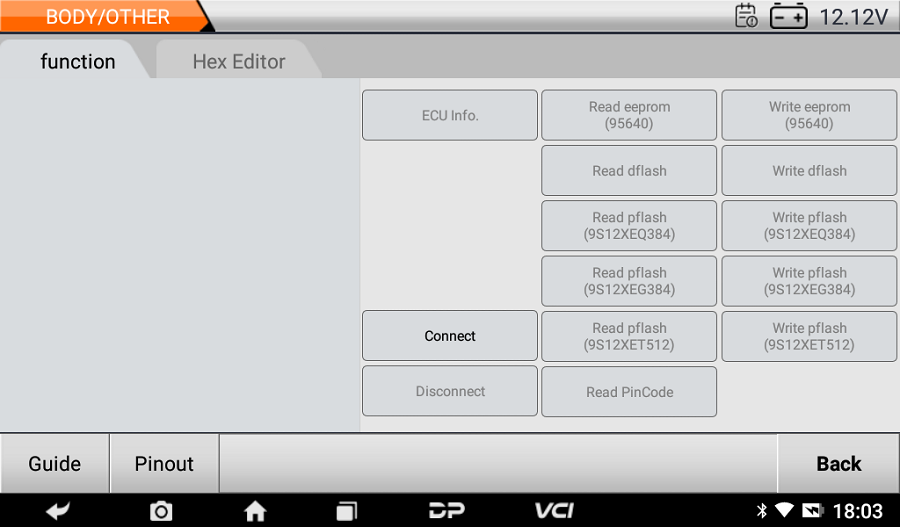

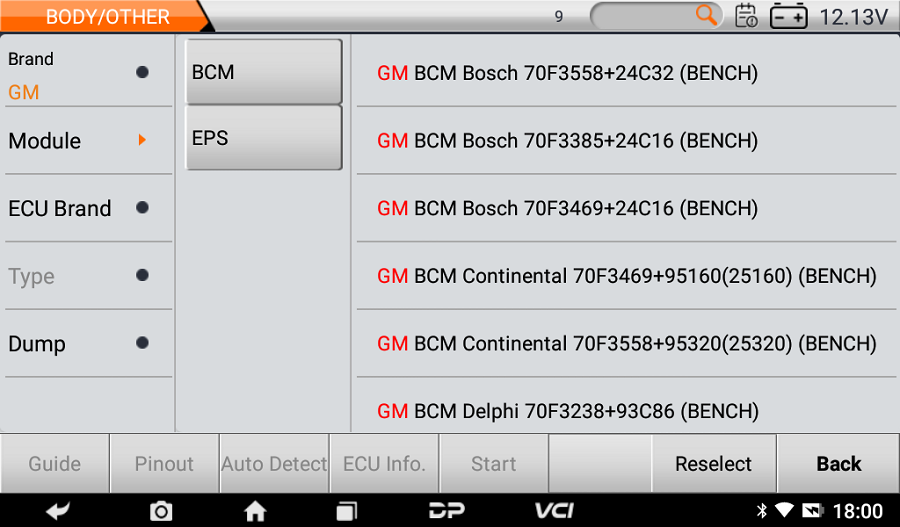

5) Body/Other Clone
