OBDSTAR D800 A+B+C+D (Full Configuration) Marine Diagnostic Tool for Jet Ski/ Outboard/ Inboard/ Generator

2,300.00

OBDSTAR D800 A+B+C+D (Full Configuration) Marine Diagnostic Tool for Jet Ski/ Outboard/ Inboard/ Generator Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth. D800 adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The equipment, with its fast upgrade performance and built-in help materials, is a good helper for marine maintenance engineers!

Package contains:

1 x OBDSTAR D800 Tablet
1 x M000A 4 meters extension cable
1 x M001B main cable
1 x M002D 6 meters power cable
1 x M003A multi functional jumper
1 x M015A adapter for Honda
1 x M021A adapter for PARSUN
1 x M043 adapter for BRP
1 x M060 adapter for MERCURY
1 x M061 adapter for YAMAHA
1 x M062 adapter for SUZUKI
1 x M063 adapter for PCM-6
1 x M064 adapter for MERCURY
1 x M065 adapter for EVINRUDE
1 x M068 adapter for KAWASAKI
1 x M070 adapter for TOHATSU
1 x M071 adapter for TOHATSU
1 x M072 adapter for MERCRUISER
1 x M073 adapter for INDMAR-6
1 x M074 adapter for YANMAR-3
1 x M075 adapter for YANMAR-6
1 x M078 adapter for MERCURY DIESEL-9
1 x M080 adapter for CATERPILLAR-9
1 x M081 adapter for MAN-8
1 x M083 adapter for CUMMINS-9
1 x M084 adapter for SCANIA-4
1 x M086 adapter for VOLVO-6
1 x 12V 2A Charger

Warehouse: Preorder
LT/LV/EE Delivery time: 4-7 working days
Europe Delivery time: 4-7 working days
International Delivery time: 7-10 working days
Express Delivery time: 1-3 working days

Multi-Language: English
Quality: Genuine
System updates: Available (12 Months free!)
Internet connections: Available
Warranty: 12 months
Manufacturer: OBDSTAR



OBDSTAR D800 A+B+C+D Full Configuration Marine Diagnostic Tool for Jet Ski/ Outboard/ Inboard/ Generator

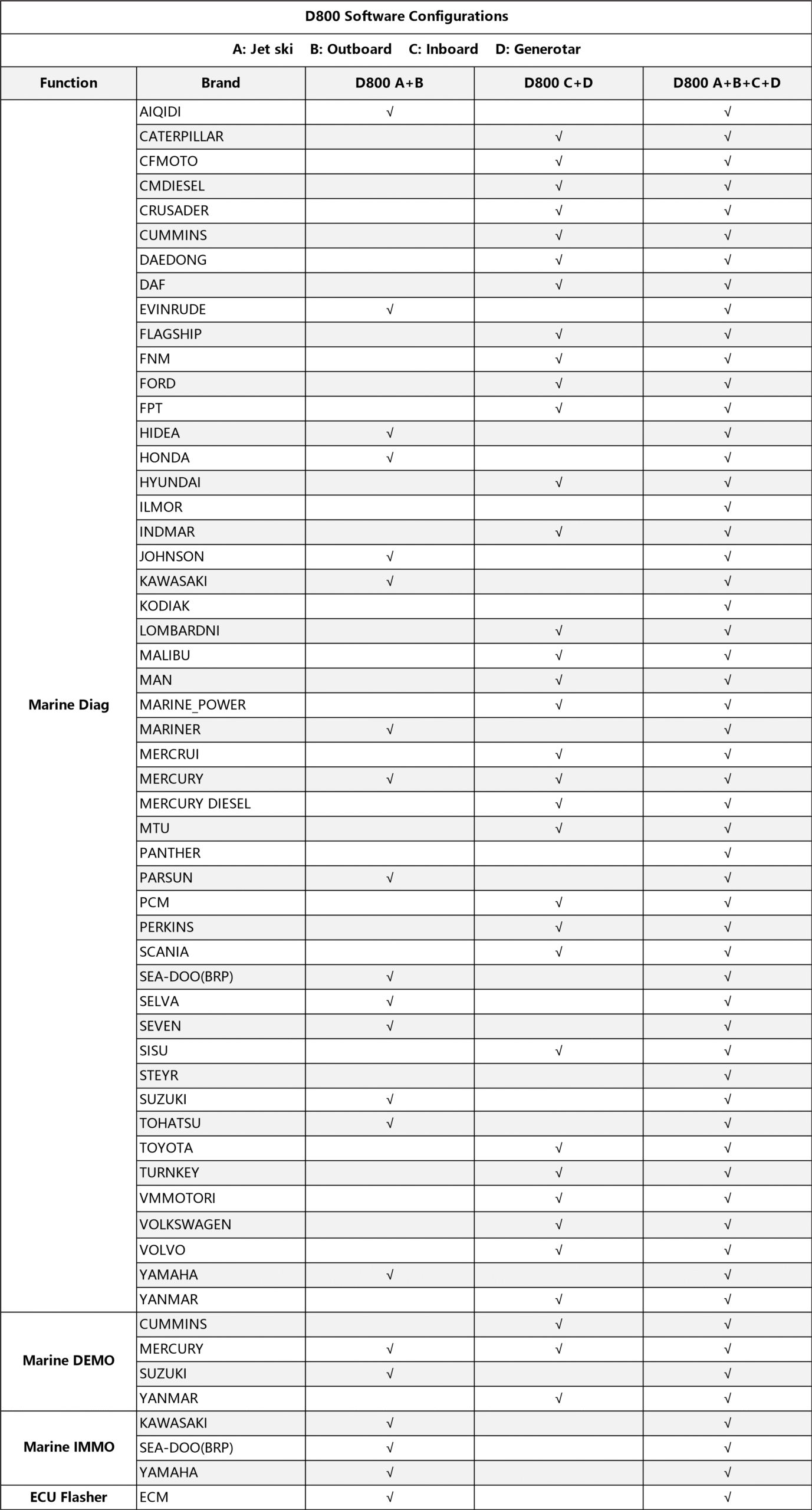

Please check the Supported list before buying:

OBDSTAR D800 A+B+C+D DIAG List (2025-02-14)
OBDSTAR D800 A+B+C+D ECU List (2025-02-14)
OBDSTAR D800 A+B+C+D IMMO List (2025-02-14)
OBDSTAR D800 A+B+C+D ODO List (2025-02-14)
OBDSTAR D800 User Manual

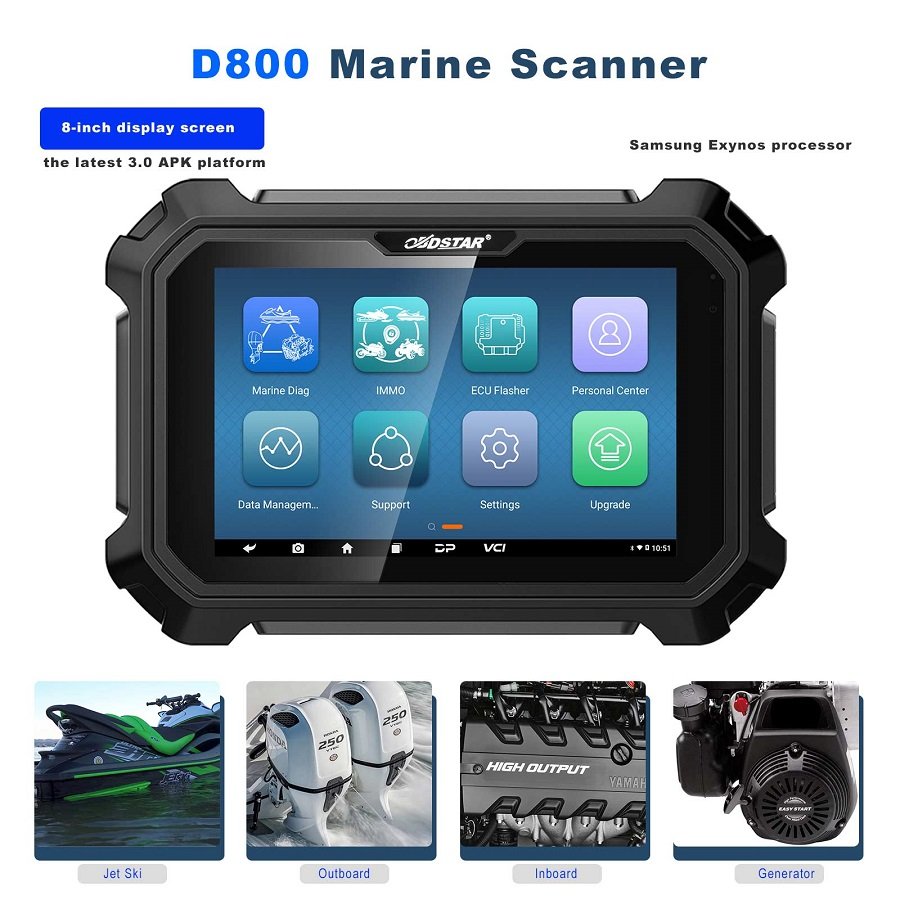

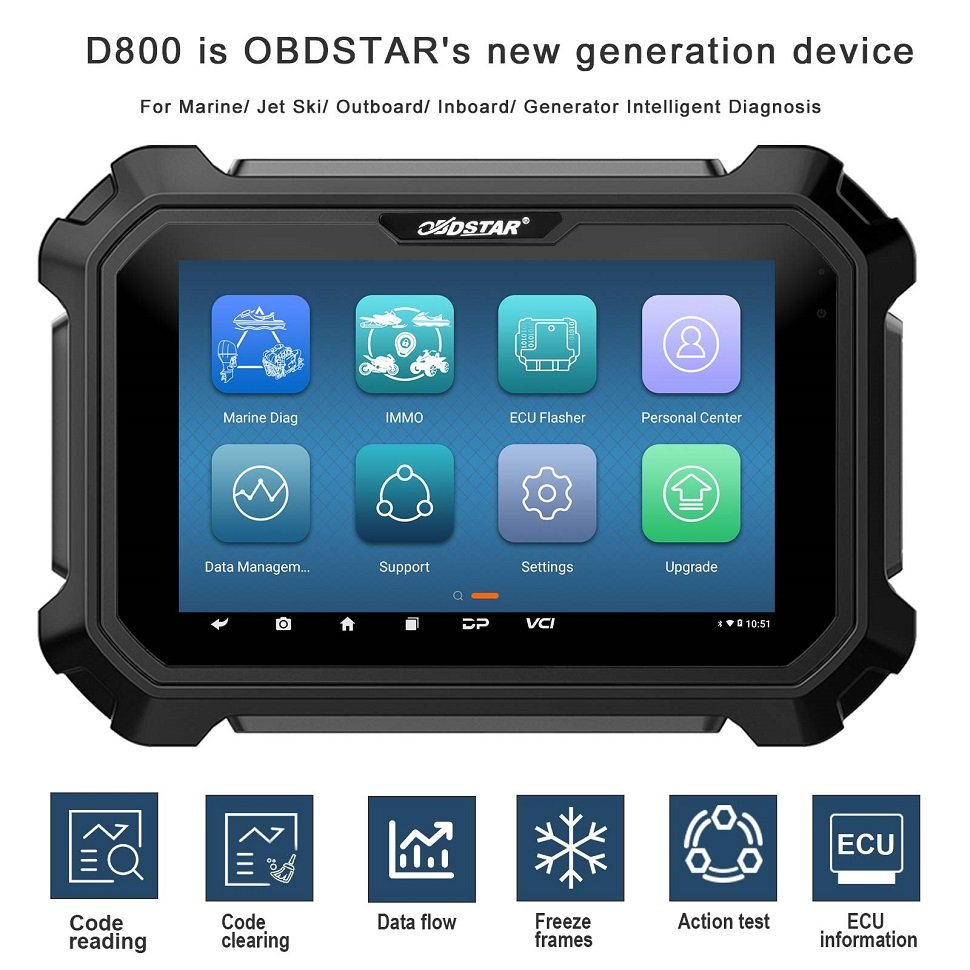

D800 is OBDSTAR’s new generation device for marine (jet ski/ outboard/ inboard/ generator) intelligent diagnosis.

Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth.

D800 adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The equipment, with its fast upgrade performance and built-in help materials, is a good helper for marine maintenance engineers!

Product Features:

1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

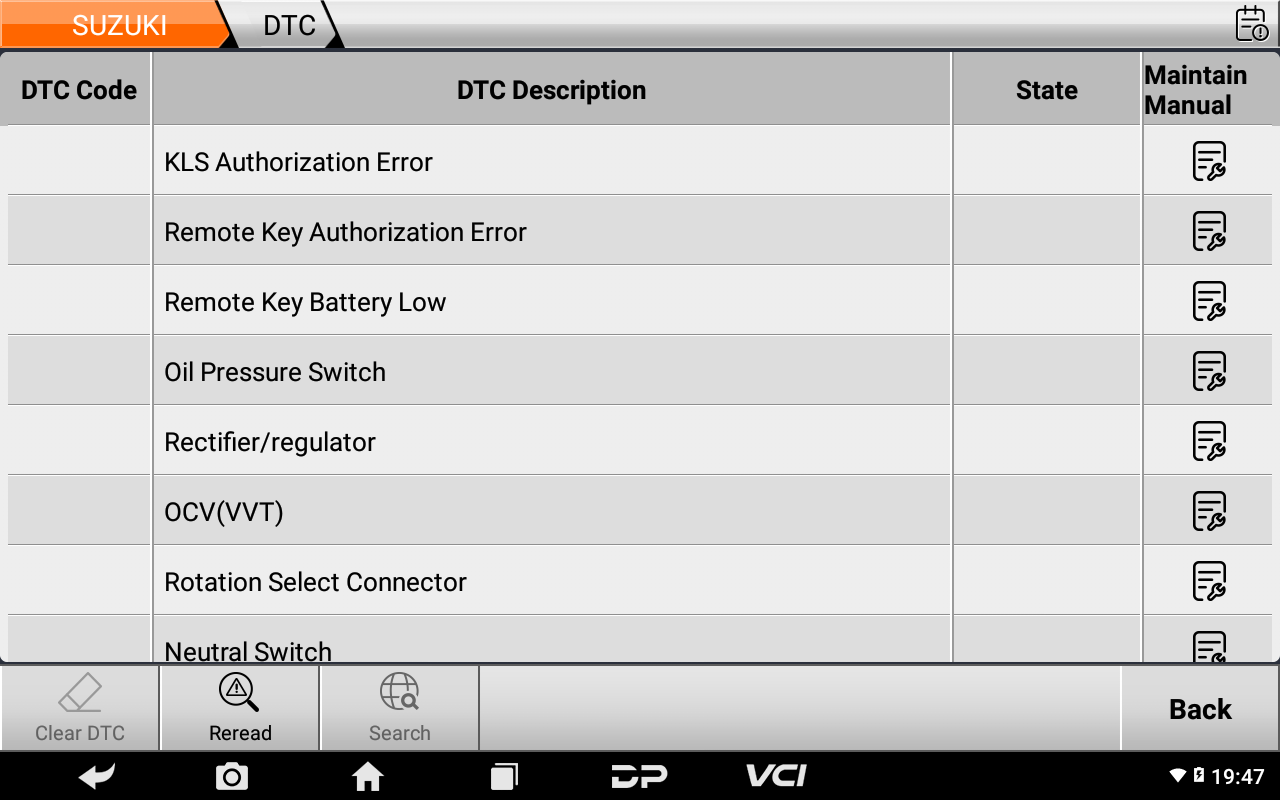

3. Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding etc;
4. Record and play back real-time flow, quickly and accurately locate sensor and component faults;
5. Wi-Fi connection to the internet, one-click software upgrade;
6. One-click remote function, OBDSTAR technical staff remote assistance.
7. Free upgrade for one year. 300 USD for another year of update. (There is a promotion, if you buy the one year update before it expires, 180 USD for one year update)
8. English only, can’t change to other languages

Advanced Functions:

1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with D800 to make marine diagnosis more accurately and efficiently (some functions are only available for D800 users to check for free);
2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;
3. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyse faults;
4. Auto Scan, Active Trim Configuration, Active Trim GPS Configuration, Auxiliary Joystick Configuration, BCM Simulator, Compass Configuration, Device Initialization, Drive Alignment, Helm Setup, Instance Setting, Maintenance Setting, Merc TDS Reset, Remote Control Reset, Set Engine Location, Set Tach Link, Set Tilt Limit, SMUX Configuration, Steering Wheel Centering, System Calibration, Torque Adjustment, Trackpad Configuration, Vessel Personality, and other functions.

Supported Brands:

AIQIDI, CATERPILLAR, CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, EVINRUDE, FLAGSHIP, FNM MARINE, FORD MARINE, FPT (Fiat Powertrain Technologies), HIDEA, HONDA, HYUNDAI SEASALL, ILMOR, INDMAR, JOHNSON, KAWASAKI, KODIAK MARINE, LOMBARDINI MARINE, MALIBU, MAN MARINE, MARINER, MARINE POWER, MERCRUISER, MERCURY, MERCURY DIESEL, MTU, PARSUN, PANTHER AIRBOATS, PCM Marine Engines, PERKINS, SCANIA MARINE, SEA-DOO(BRP), SELVA MARINE, SEVEN MARINE, SISU, STEYR MOTORS, SUZUKI, TOHATSU, TOYOTA MARINE, TURNKEY, VM MOTORI, VOLKSWAGEN, VOLVO PENTA, YAMAHA, YANMAR…

More functions are under development…

Product Specifications:

Operation system:  Android 5.1.1
CPU: Exynos4418 qual core ARM cortex A9
Battery: 3700mA, rechargeable polymer lithium battery
Extension memory card: 32G micro SD (TF) card supported
Storage capacity: 32GB
LCD: 8.0 inch
LCD resolution: 1280*800
Touch screen: Capacitive touch screen
Wi-Fi: Supported
Camera: 5 mega rear view camera
Working temperature: -10℃~55℃ (14℉~131℉)
Storage temperature: -20℃~70℃ (-4℉~158℉)
Weight: 1kg (main unit)
Dimension: 254mm*174mm*35mm



Function Display-(From OBDSTAR Mobile App)

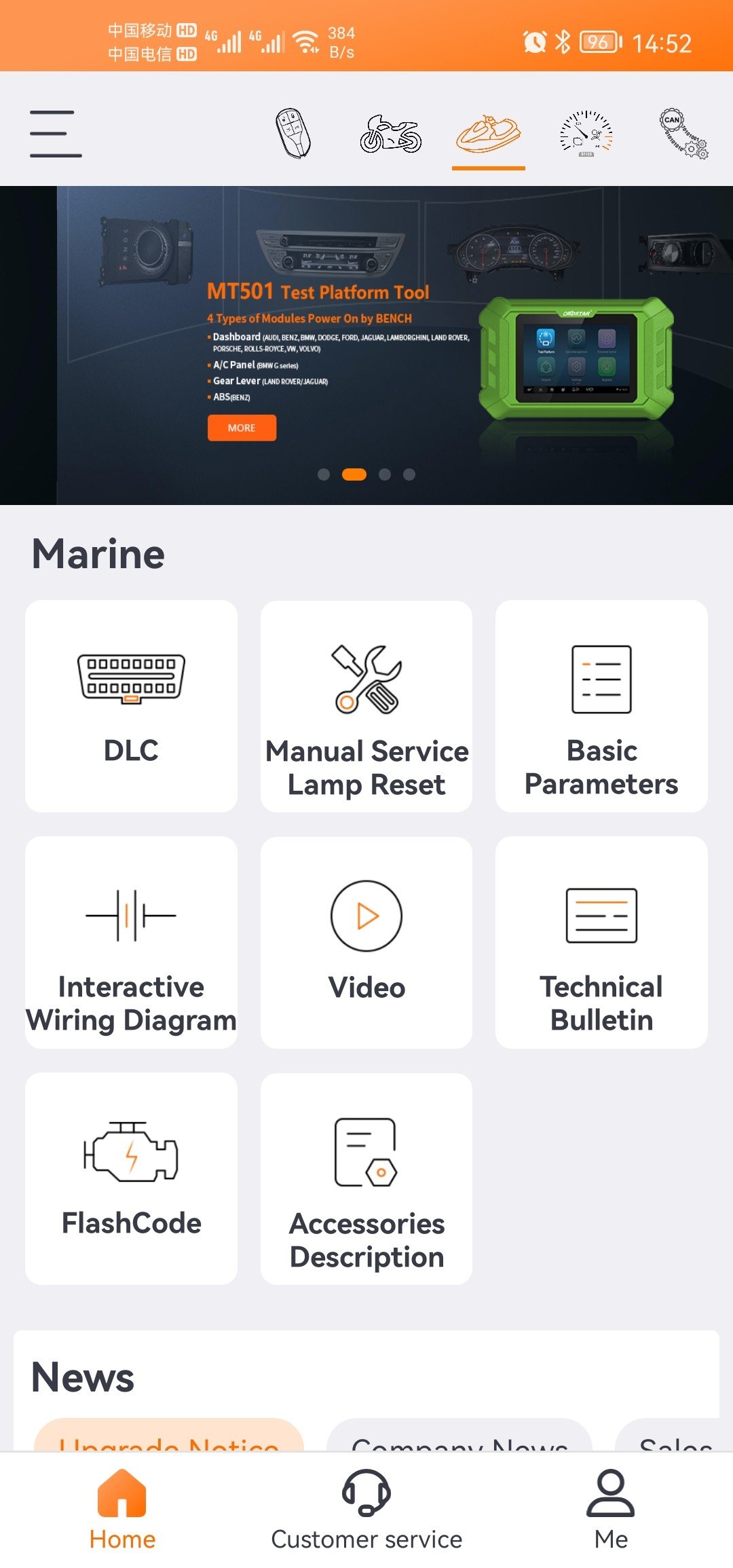

1) Main Page

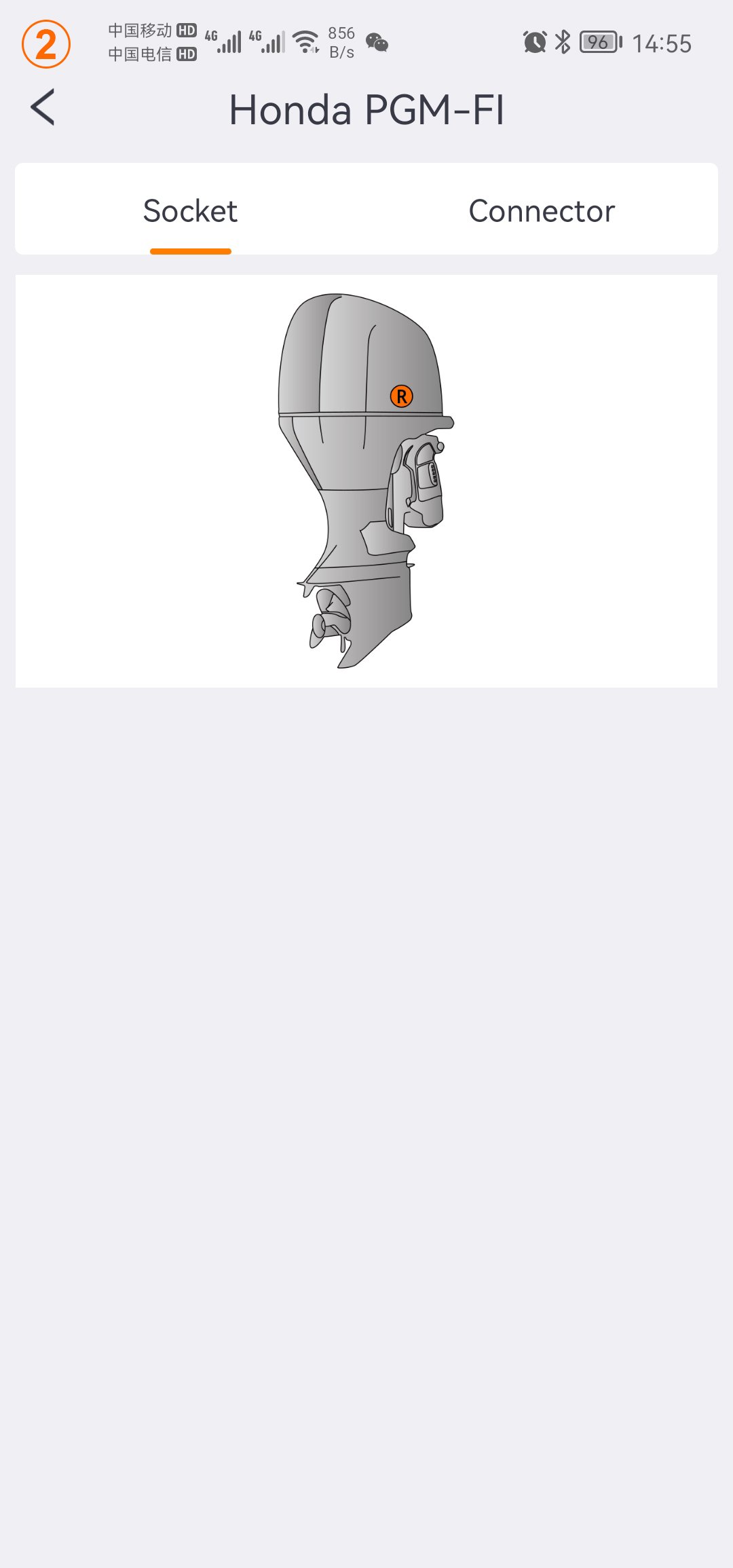

2) Diag Socket/Diag Connector Location

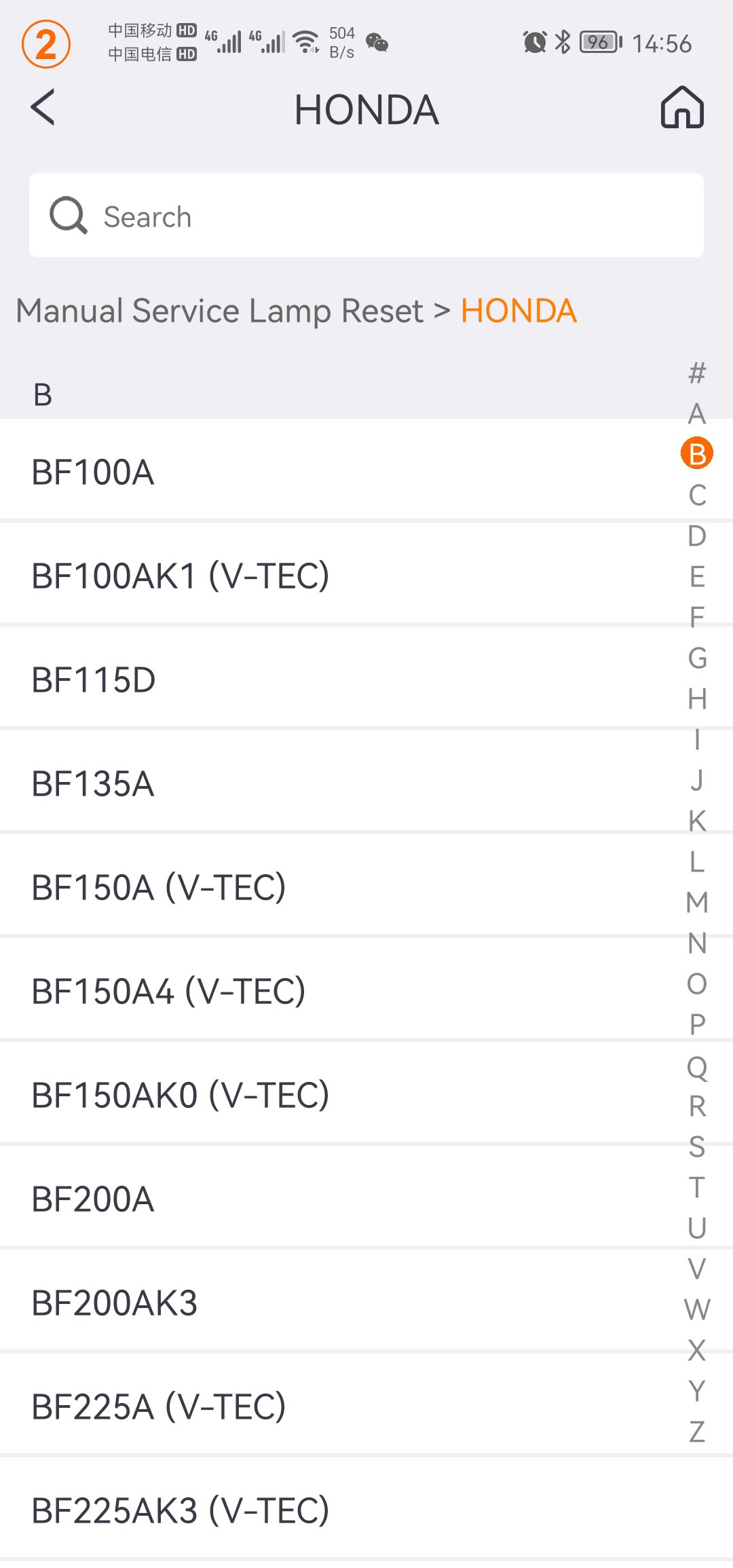

3) Manual Service Function (Service Light Reset)

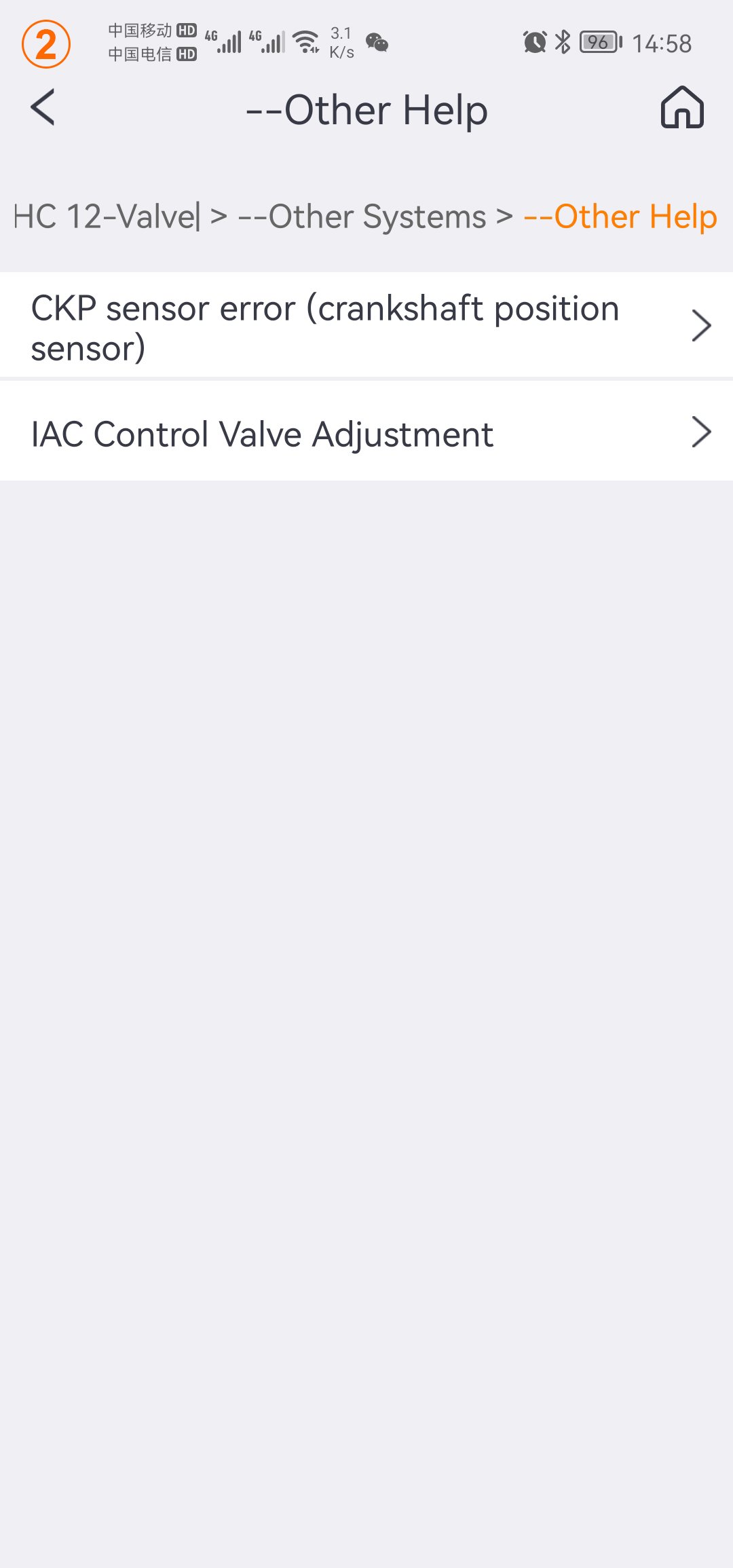

4) Technical Bulletin

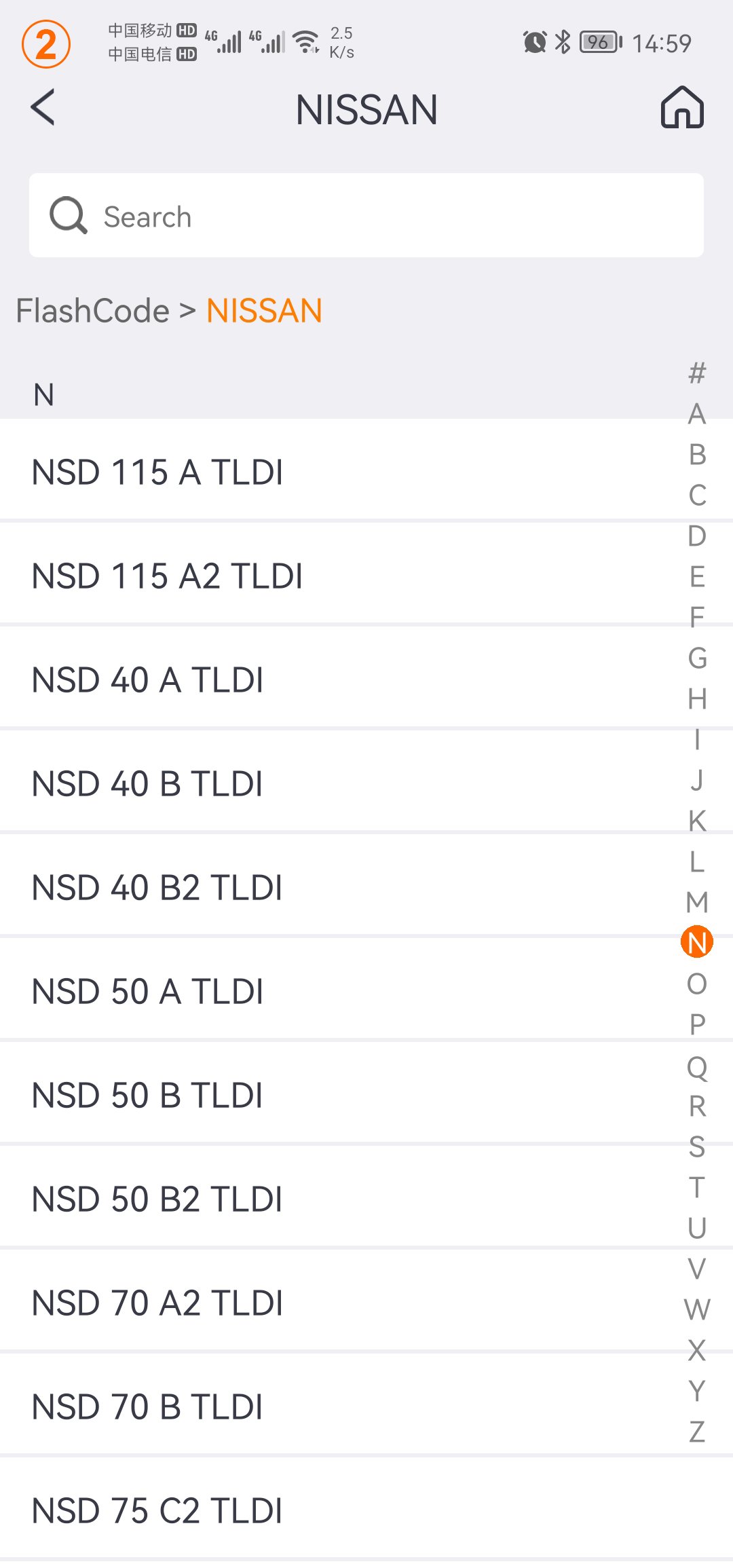

5) Flash Code

Function Display–(from D800)

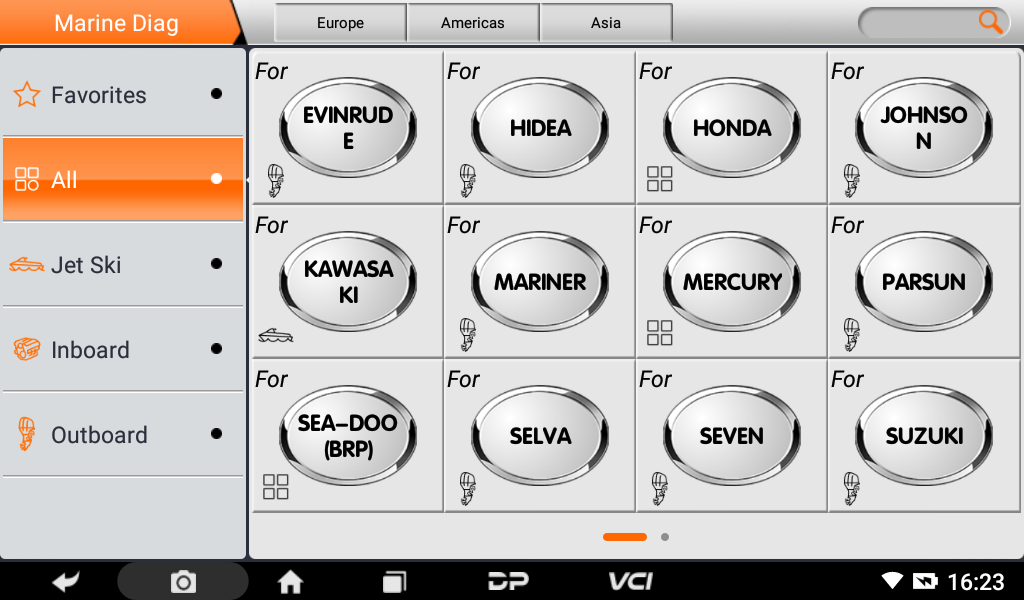

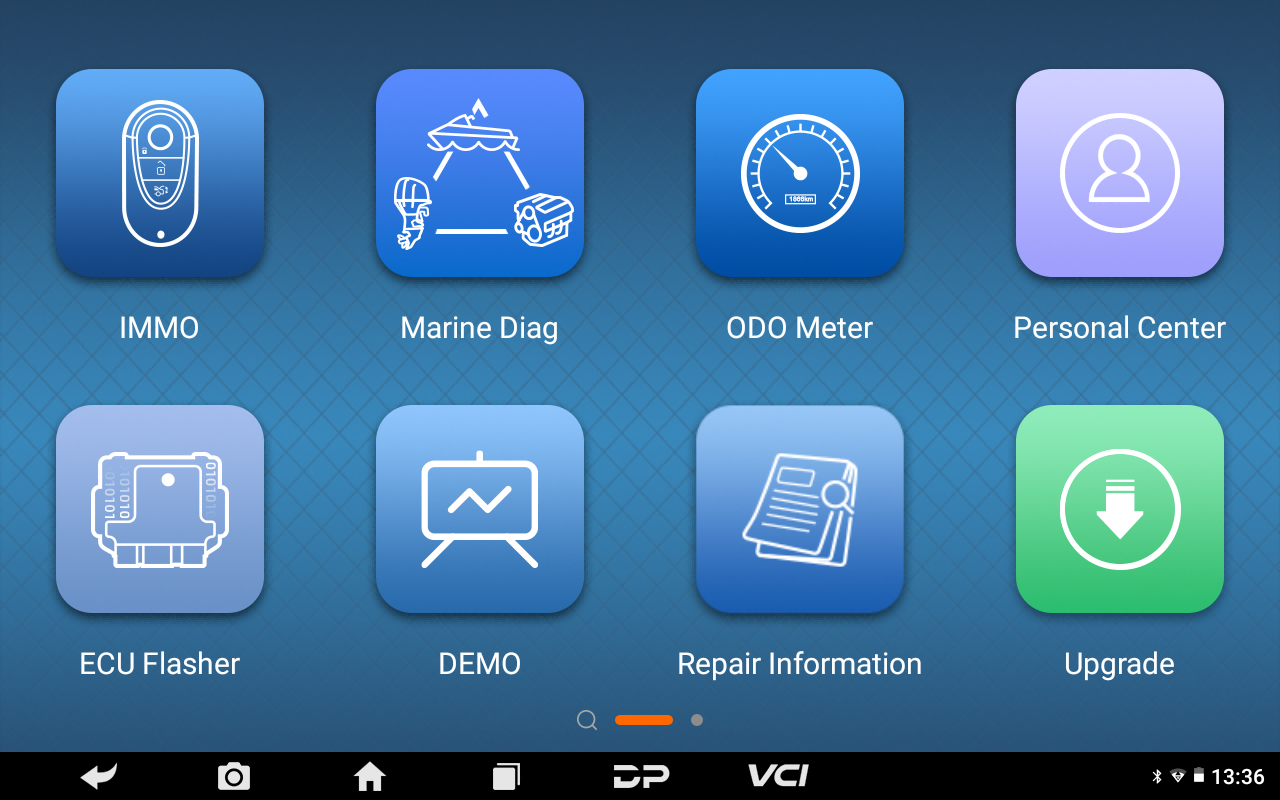

1) Main Page/Brand Supported

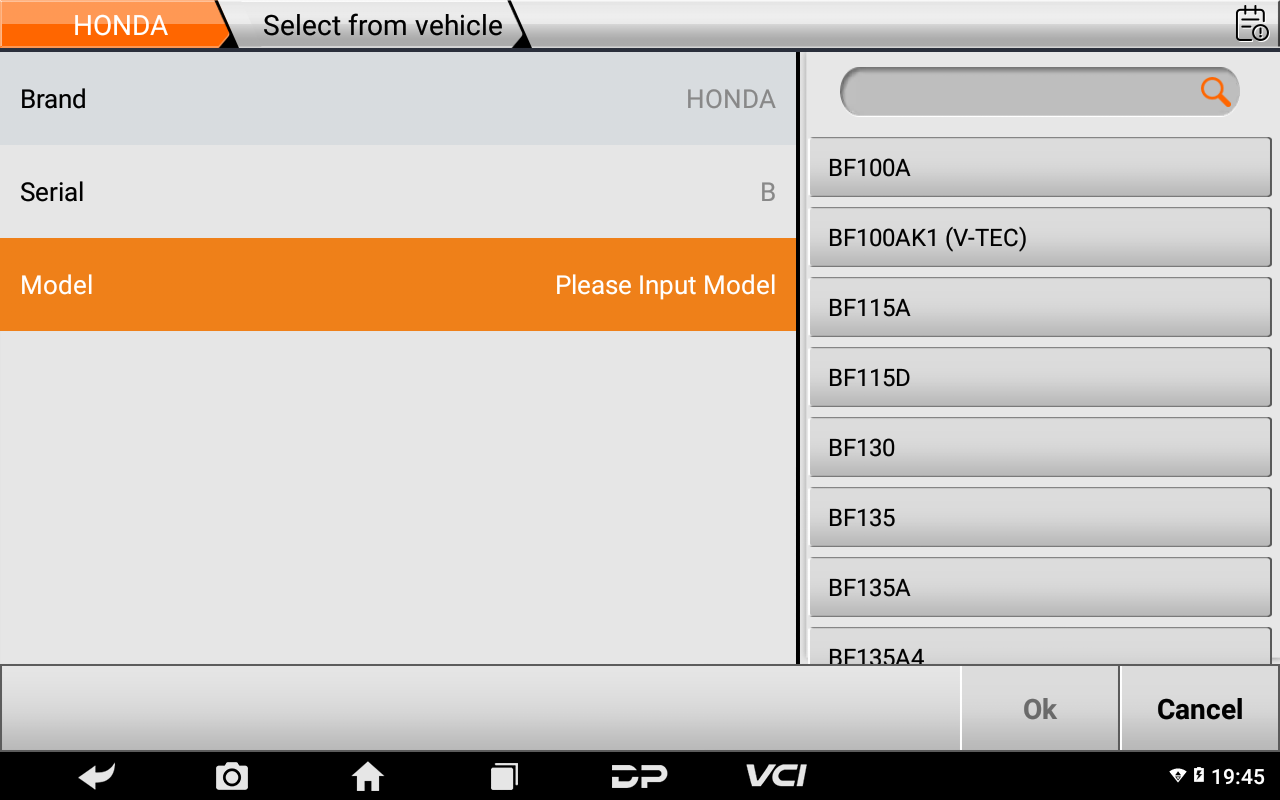

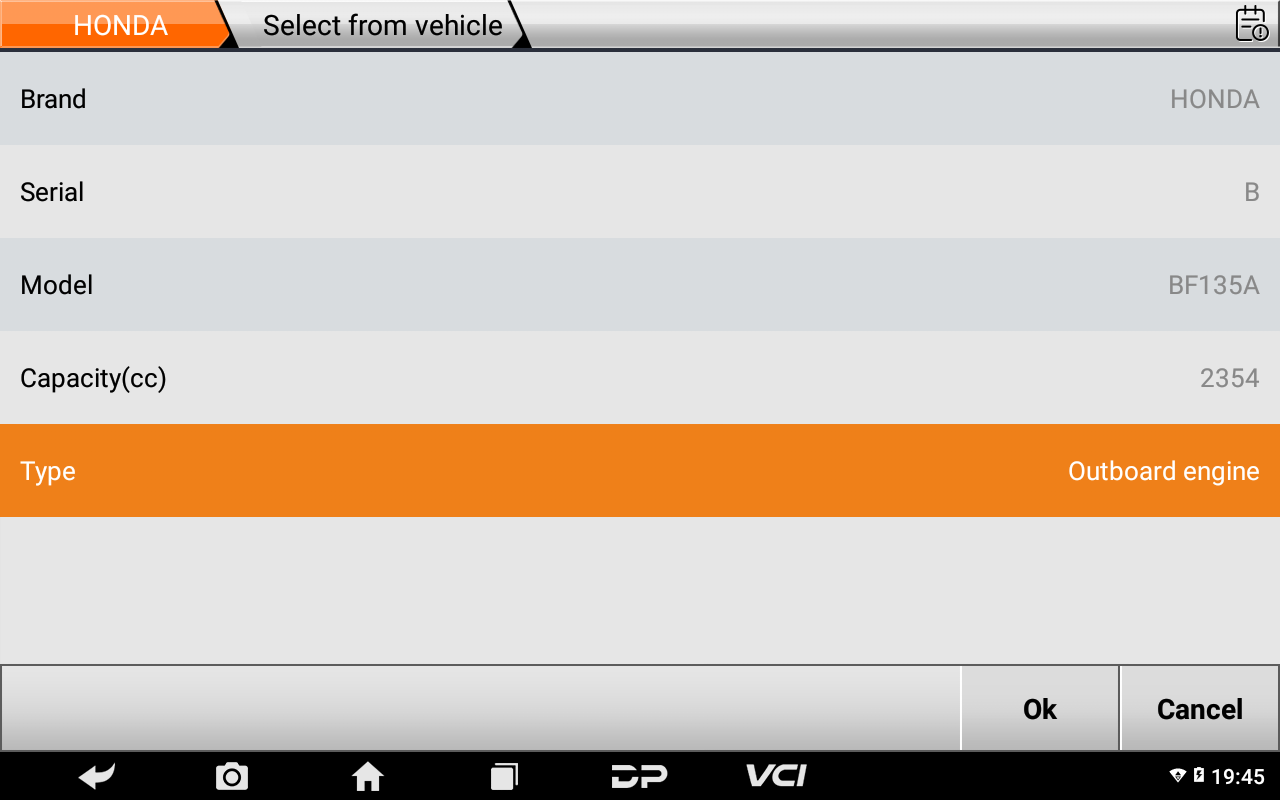

2) Menu Selection

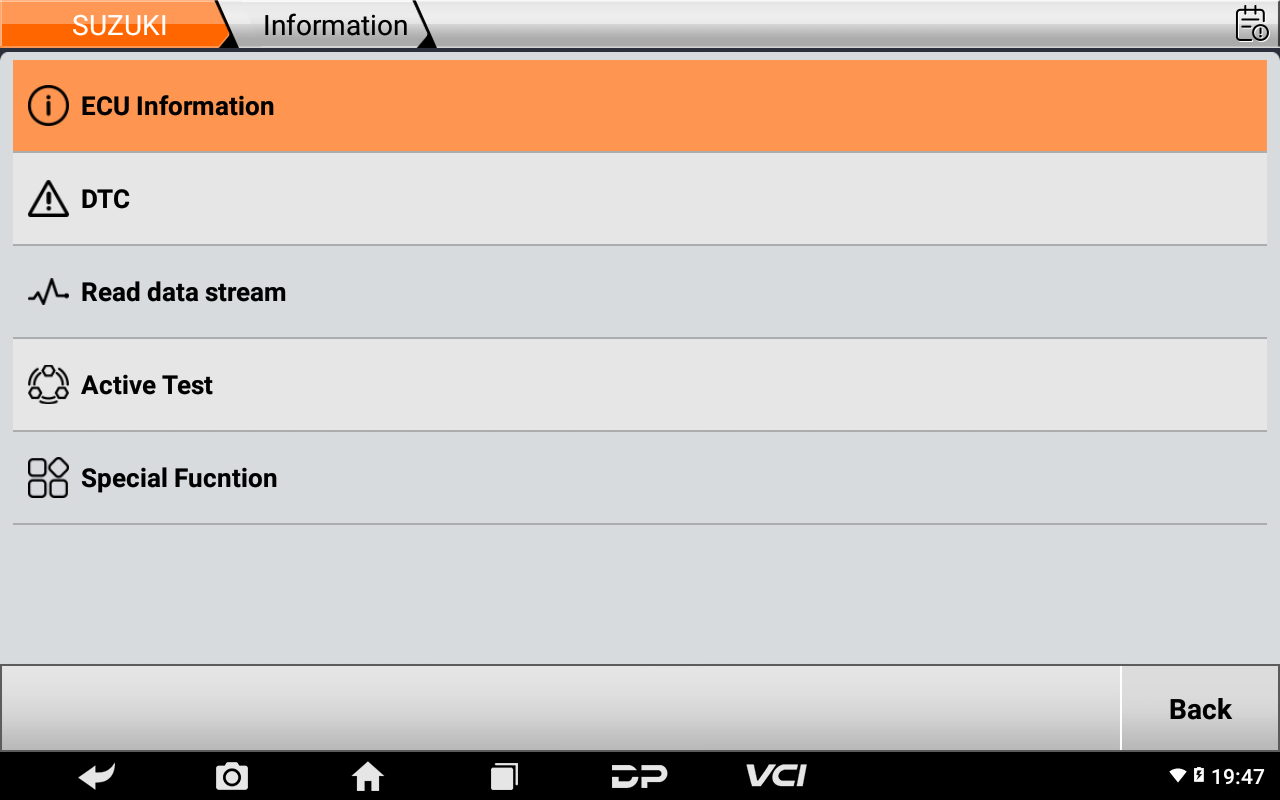

3) Function Menu

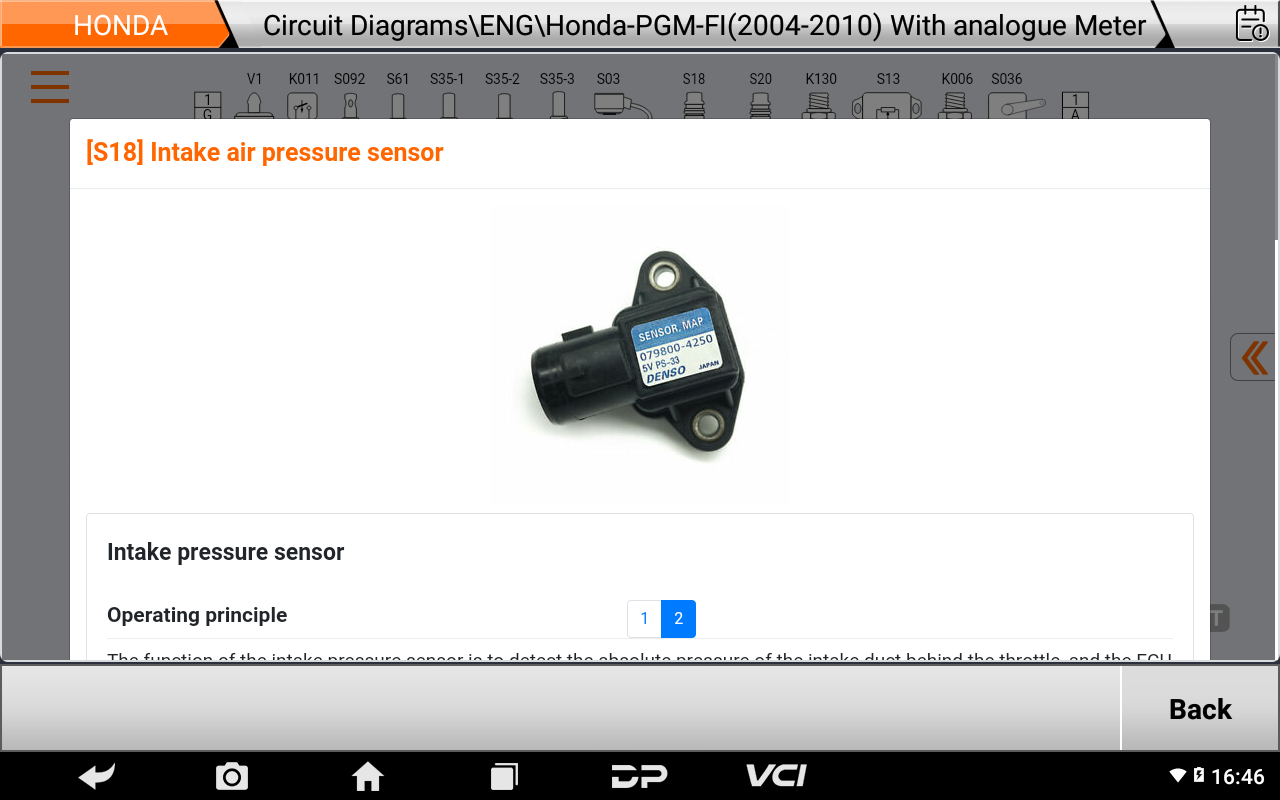

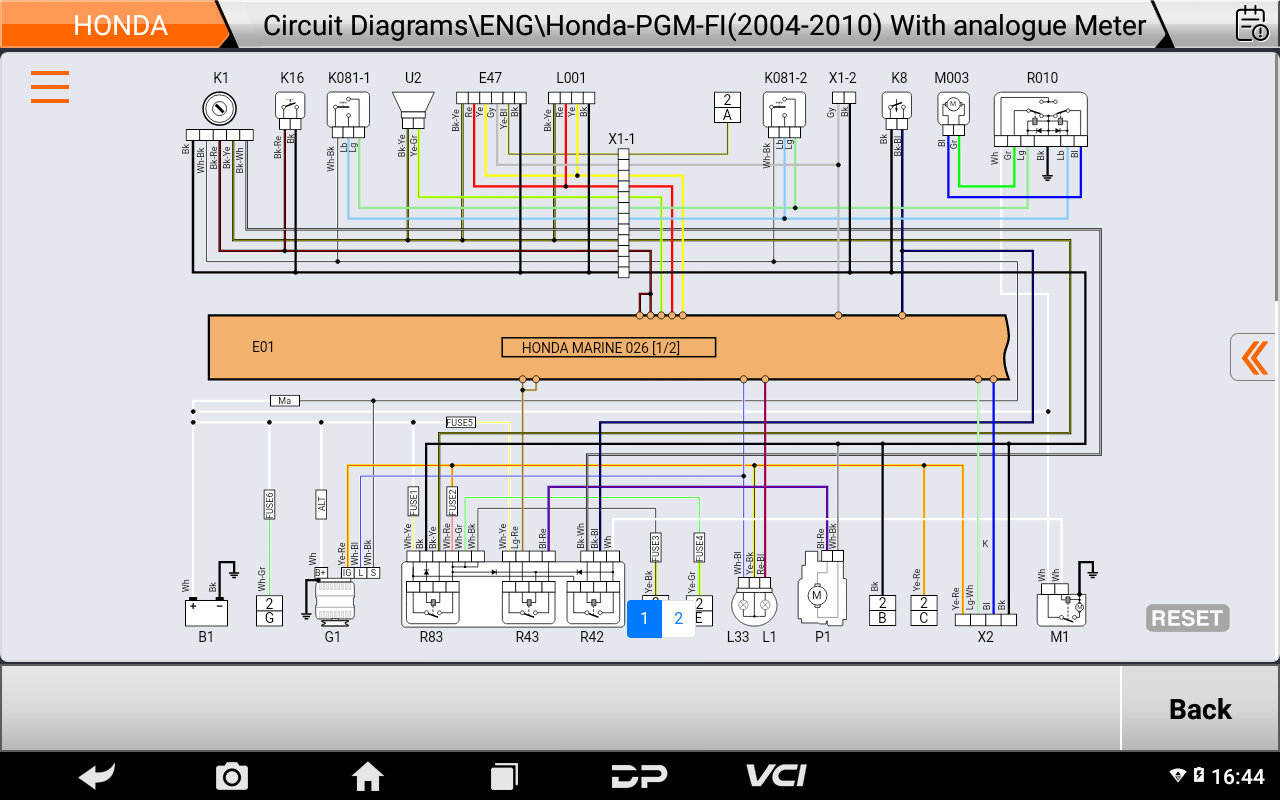

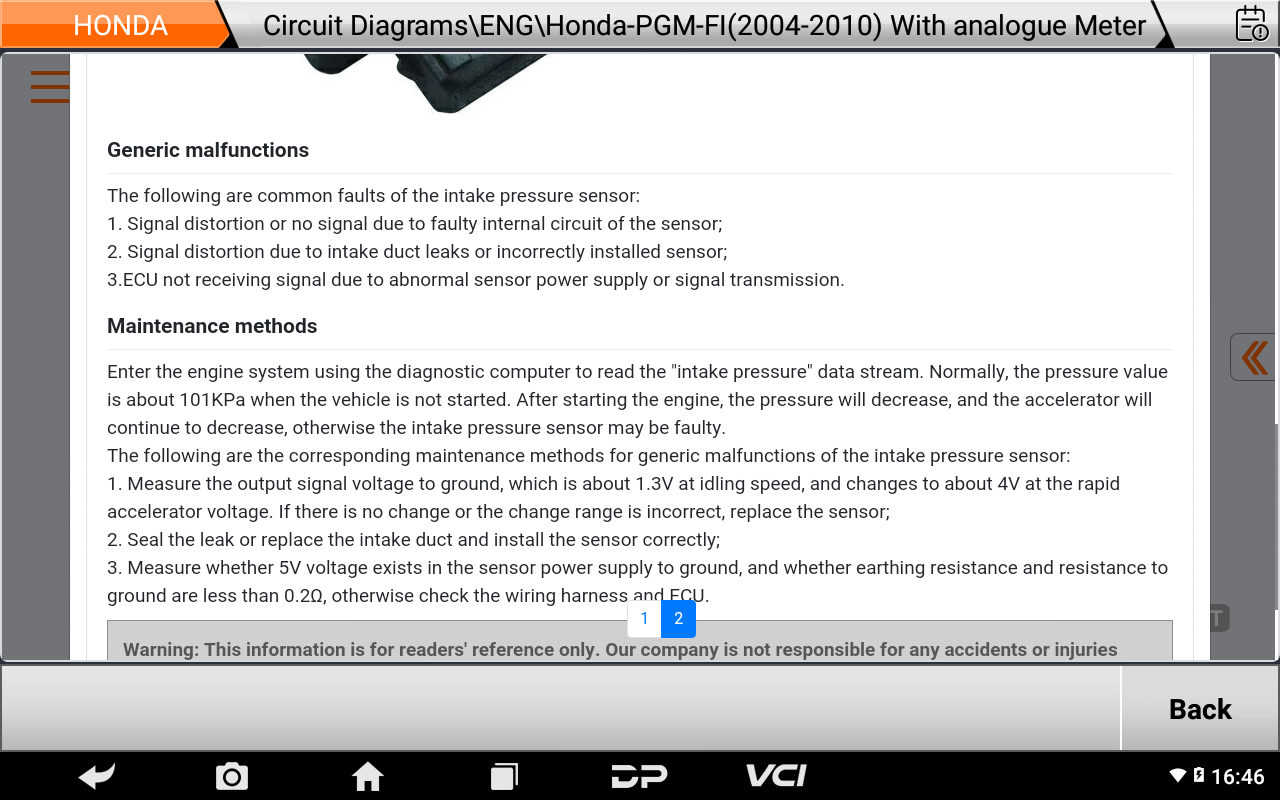

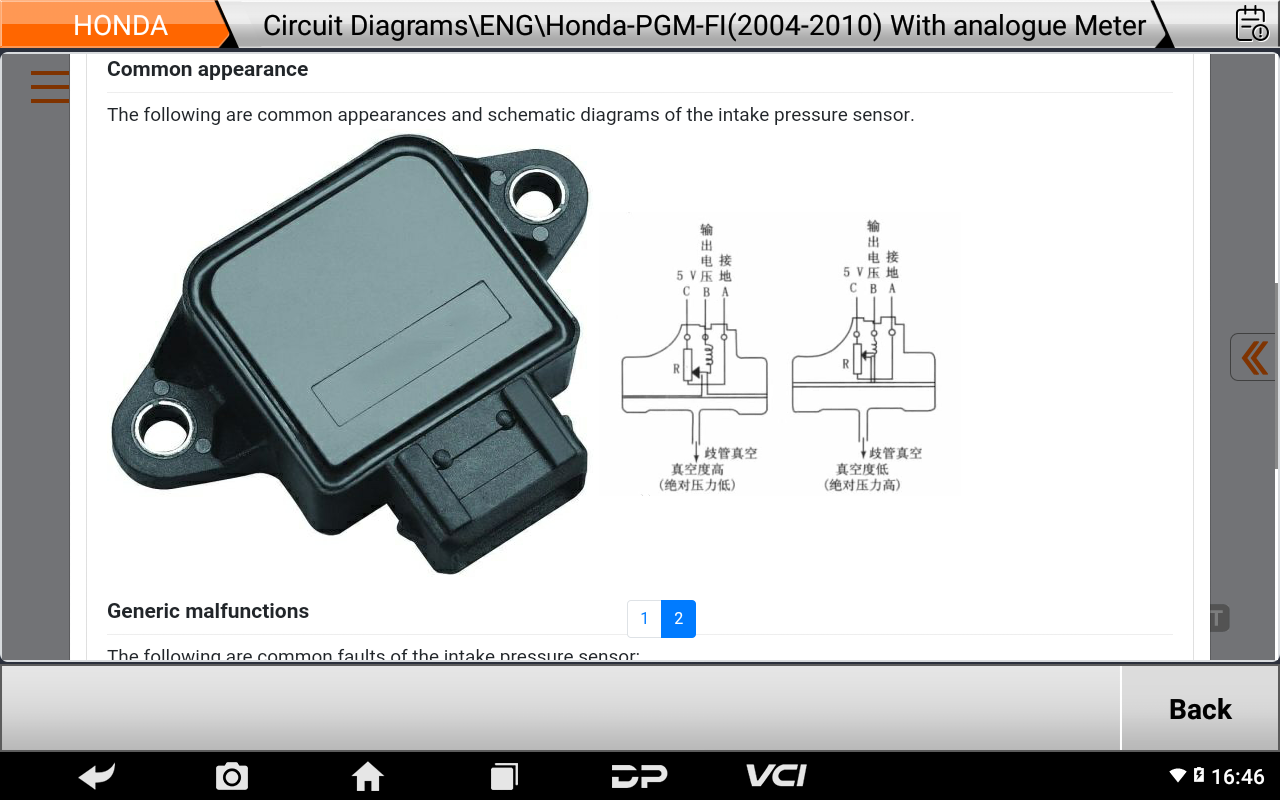

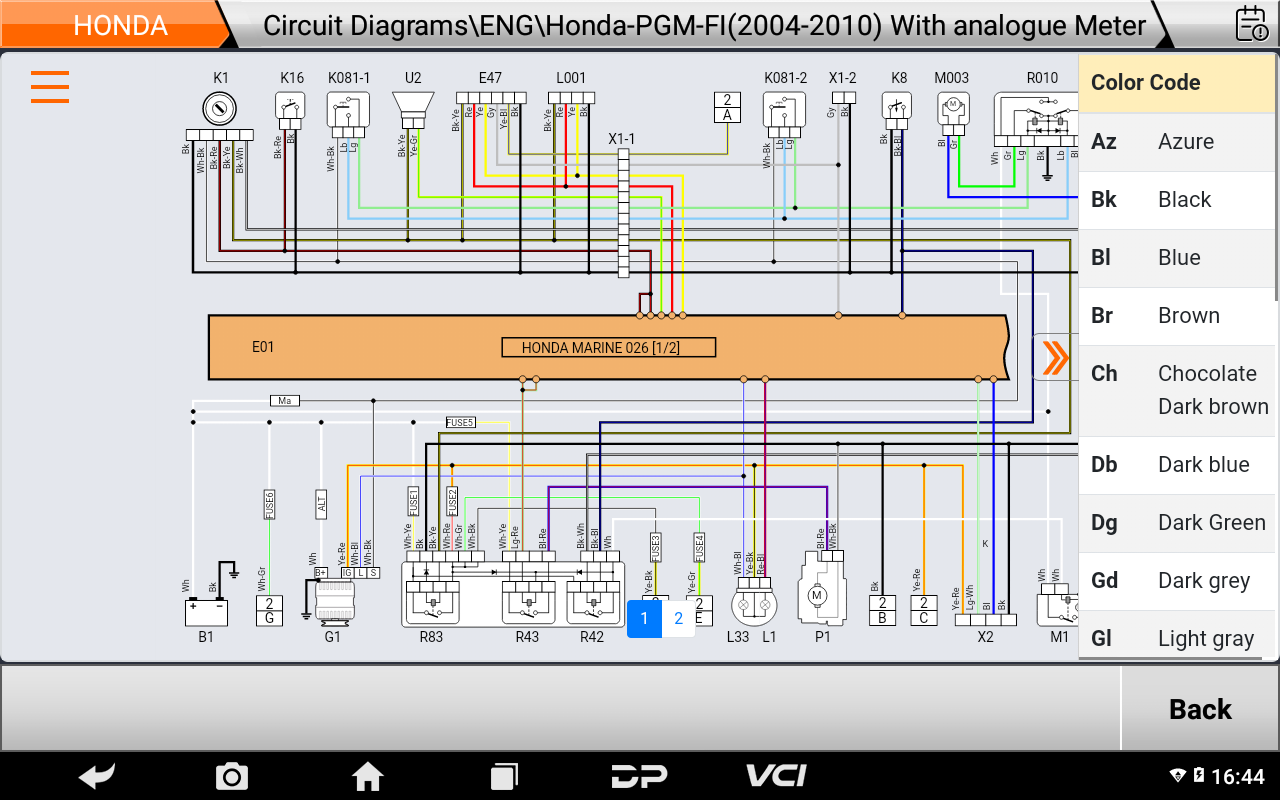

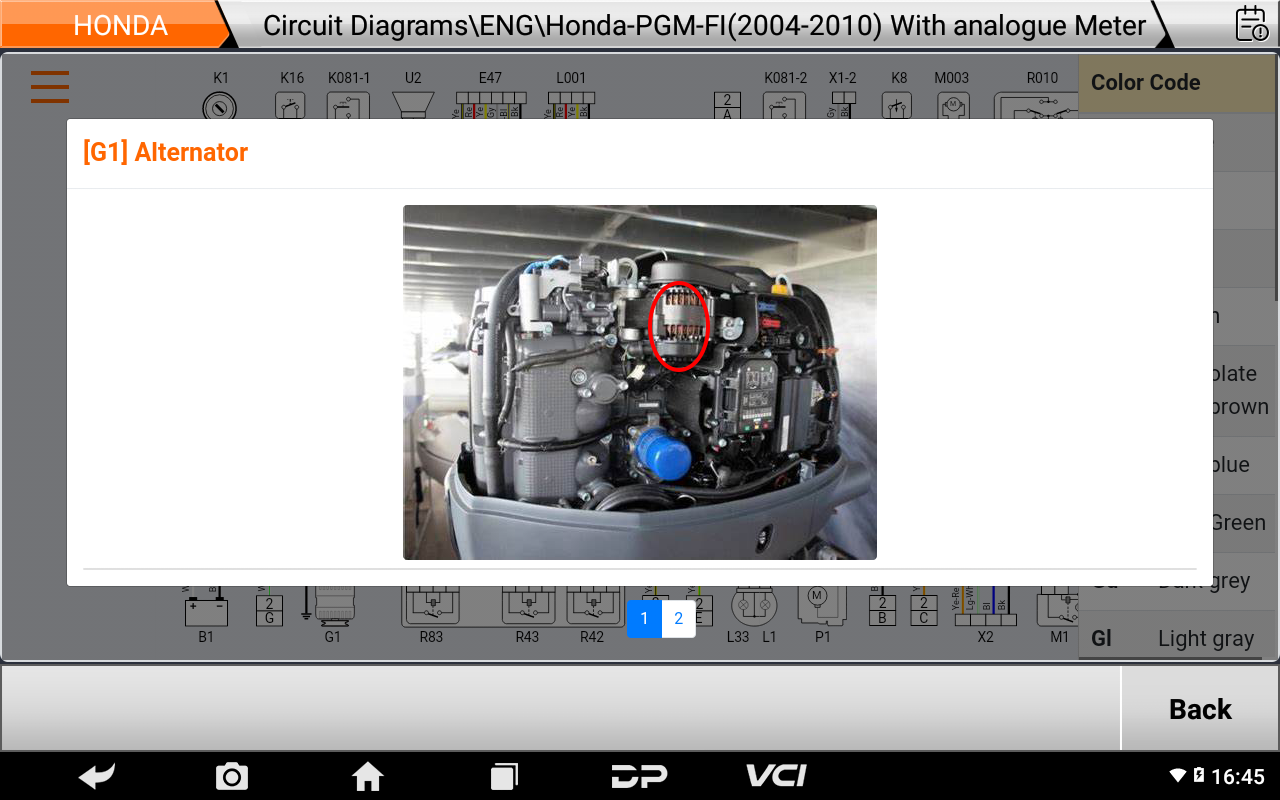

4) Interactive Circuit Diagram

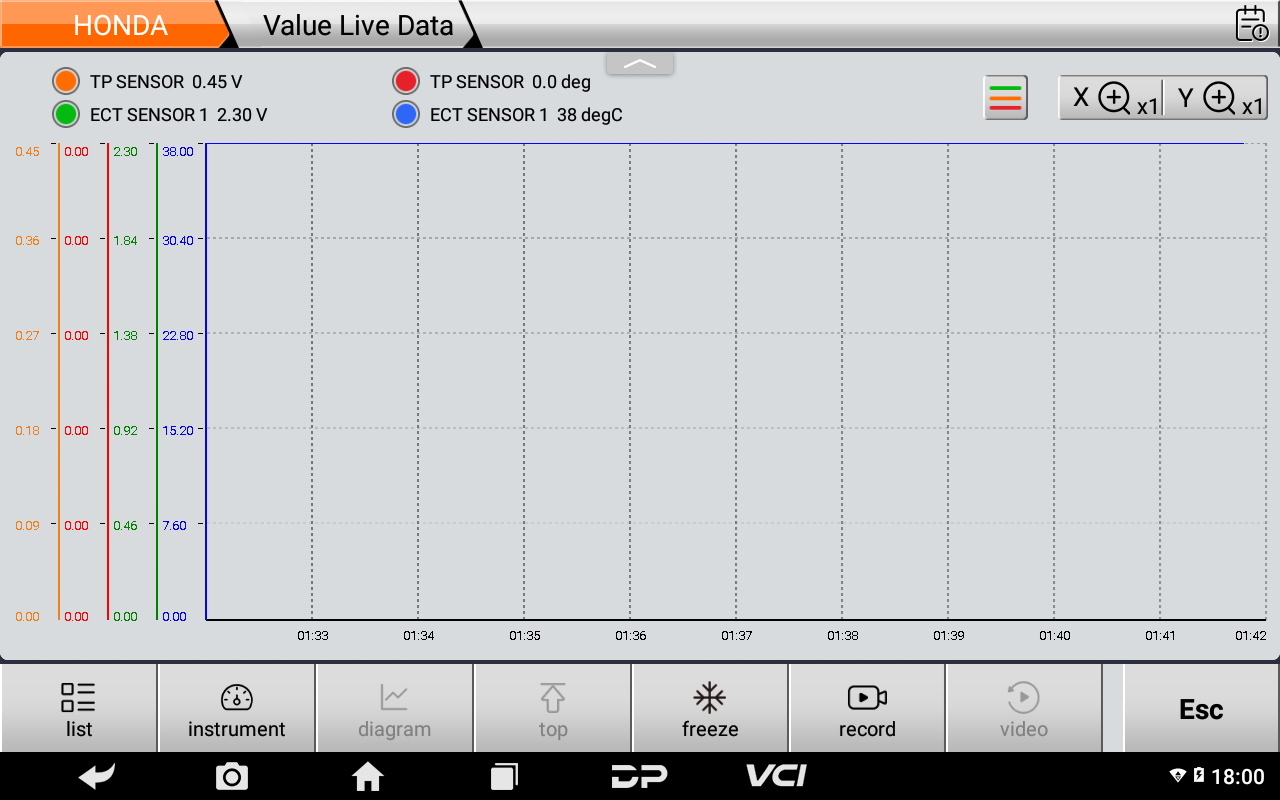

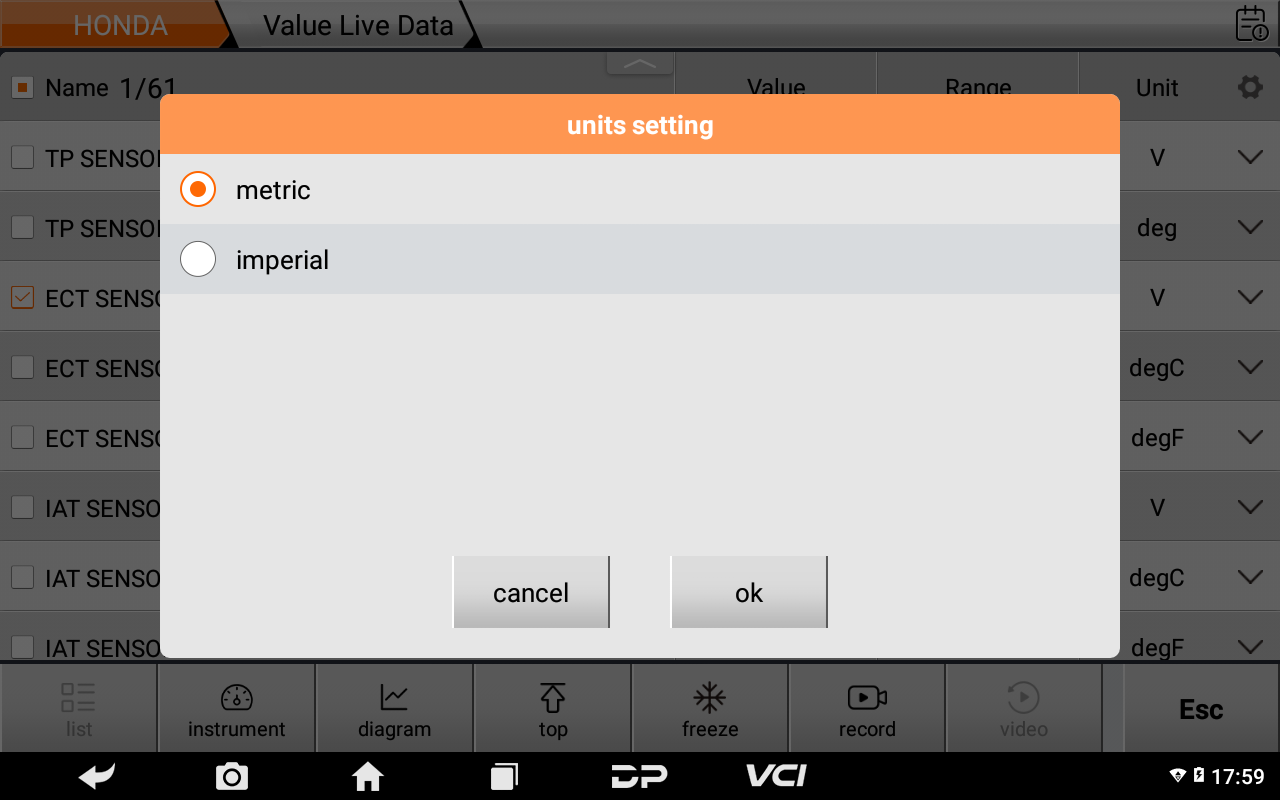

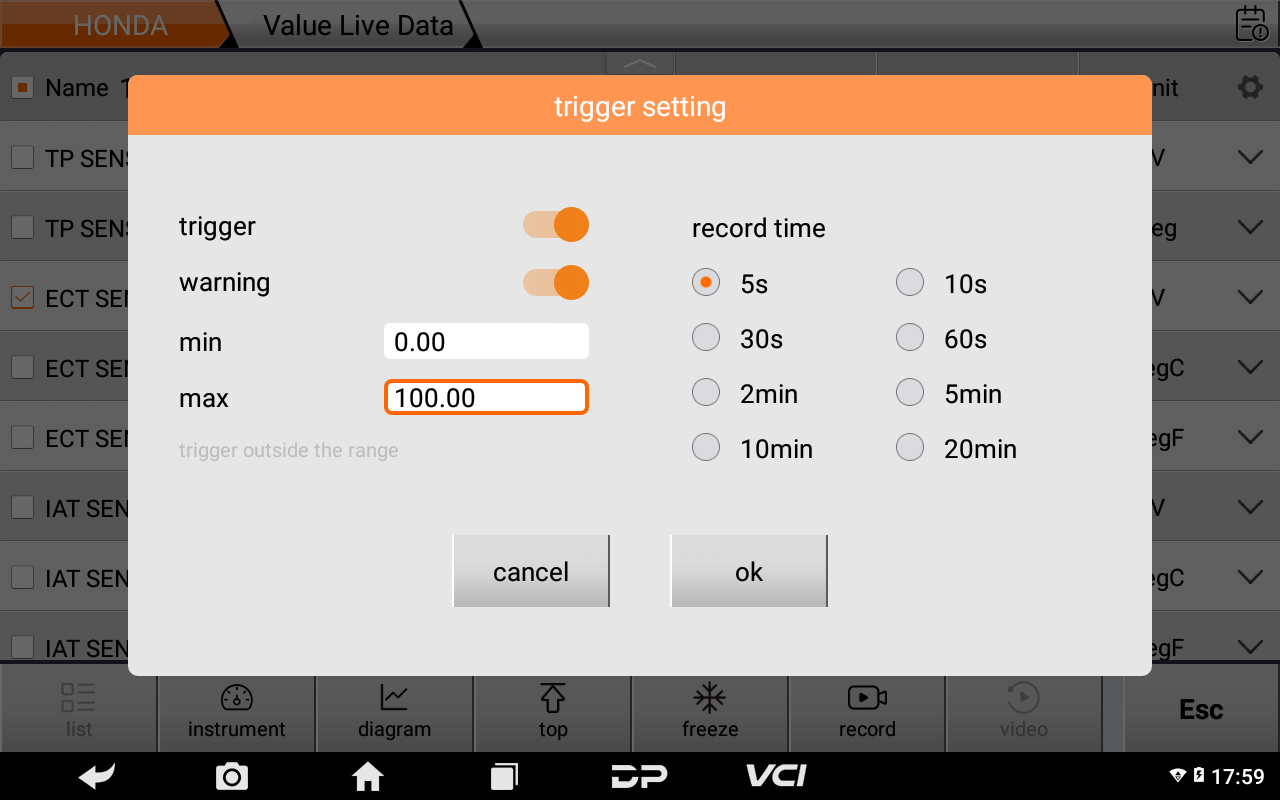

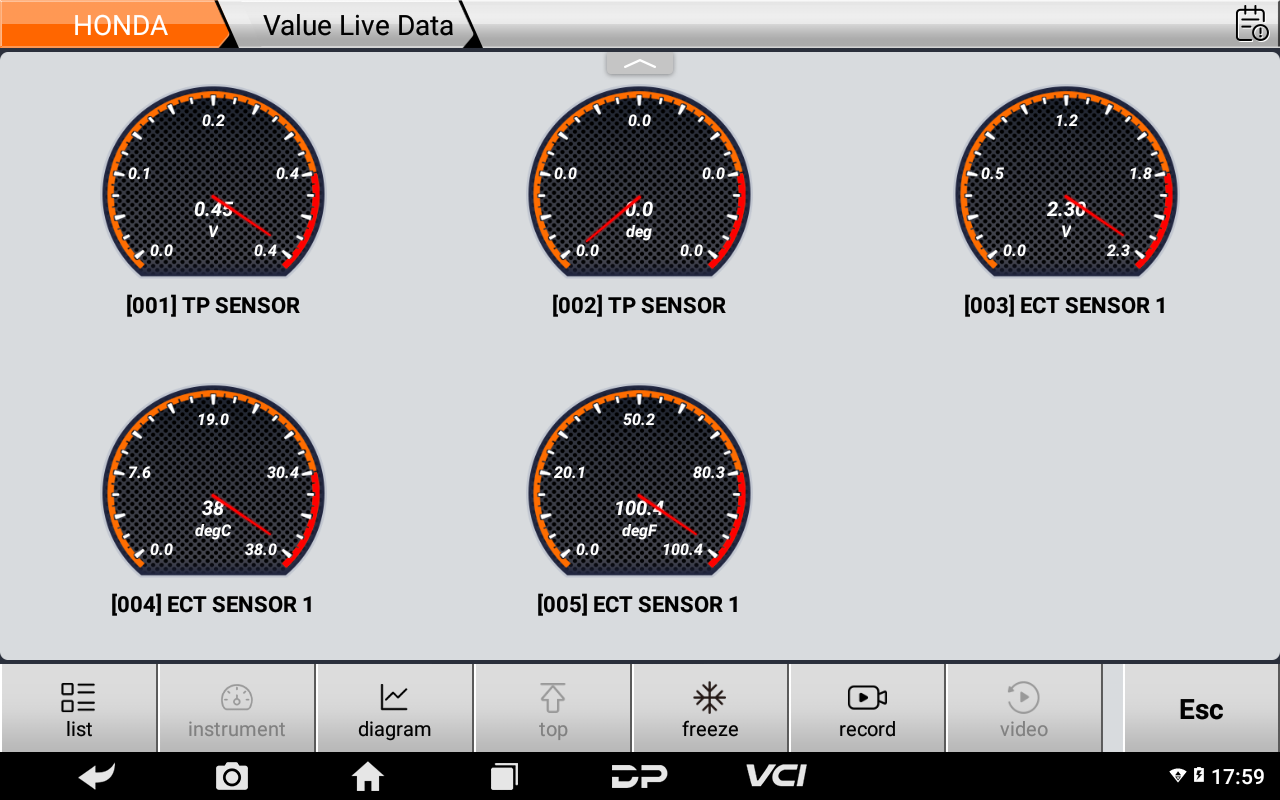

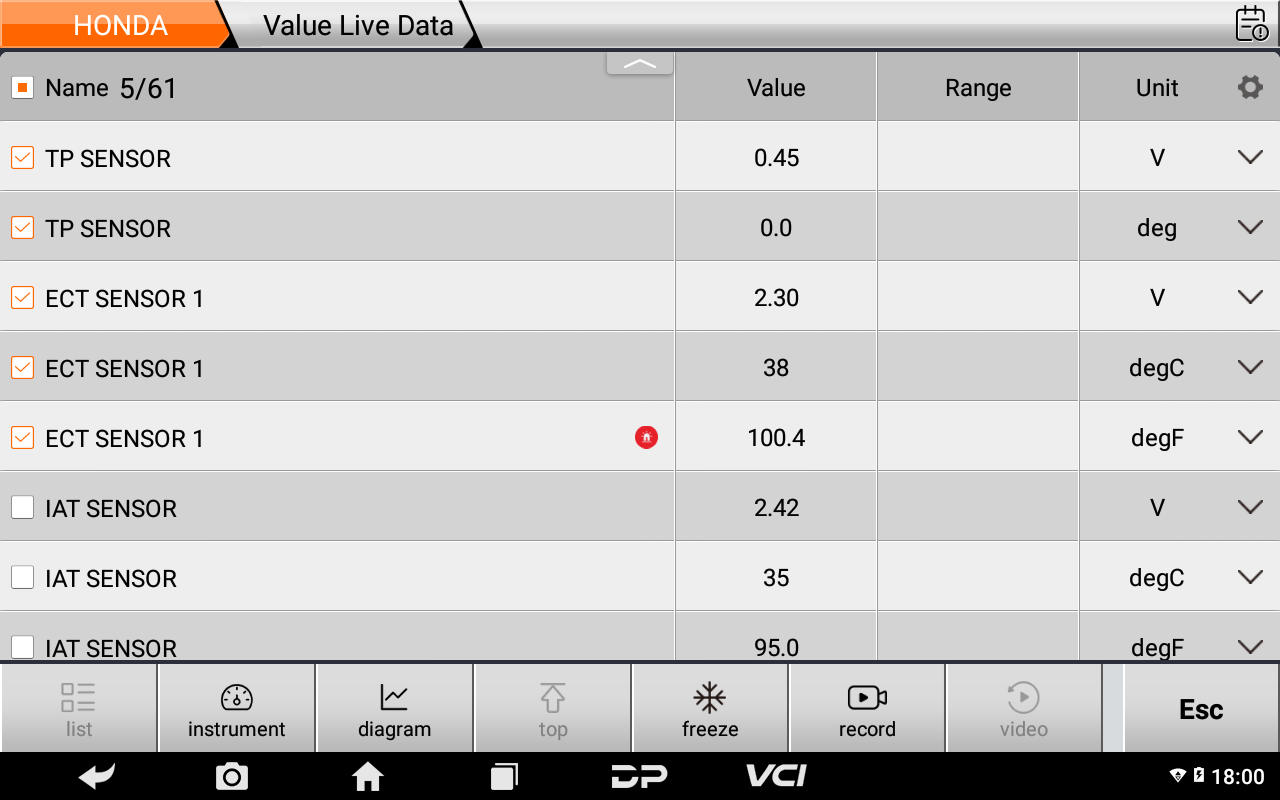

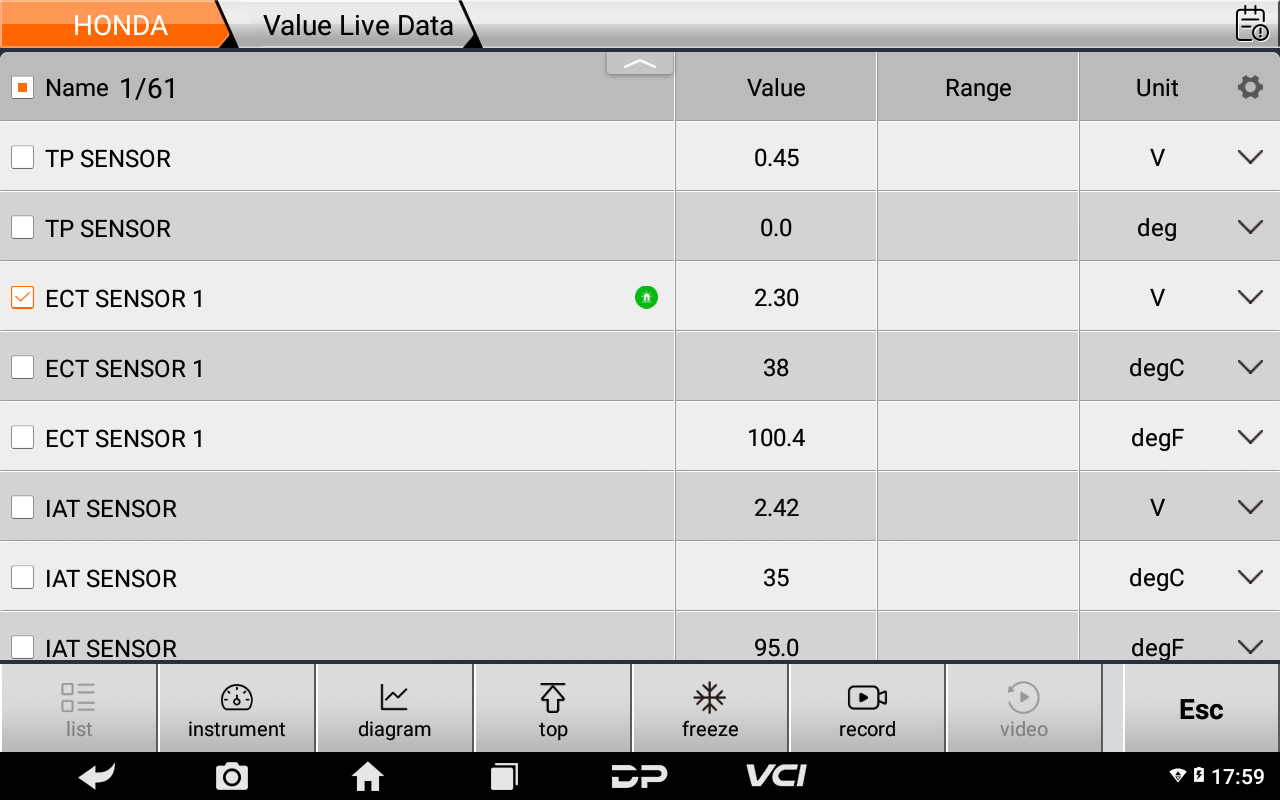

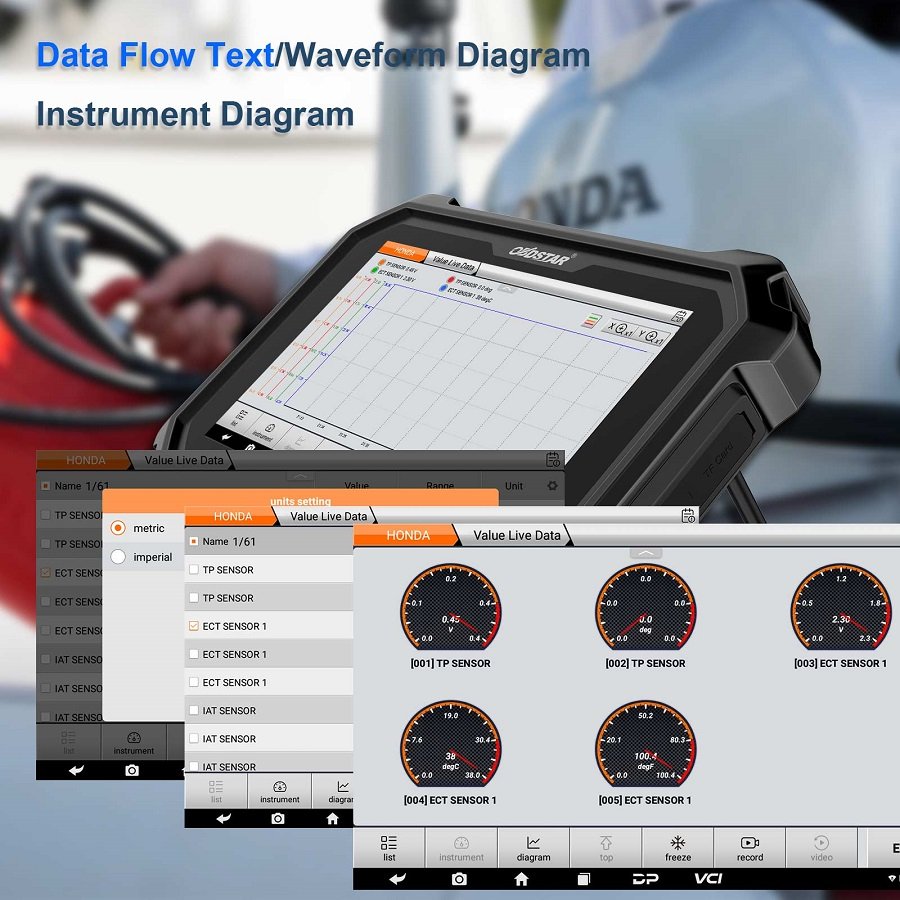

5) Data Flow Text/Waveform Diagram/Instrument Diagram

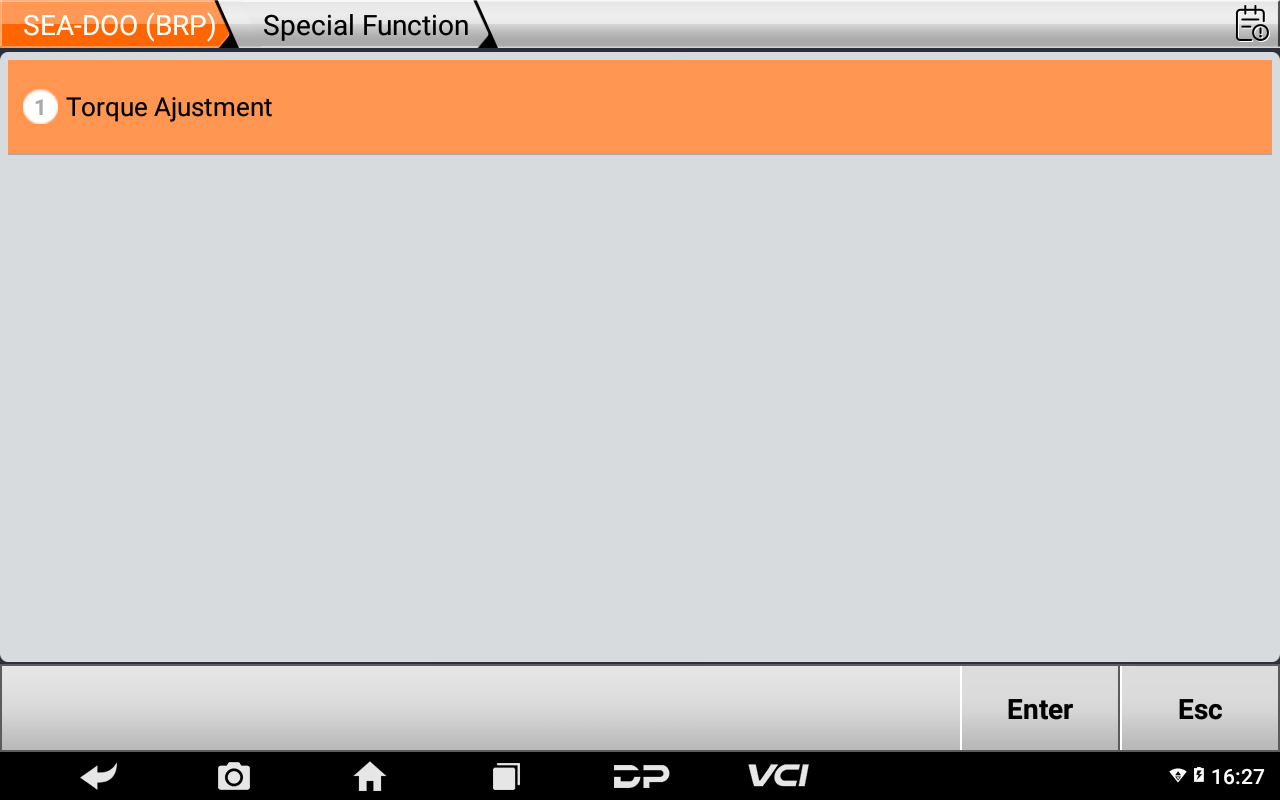

6) Special Functions-BRP

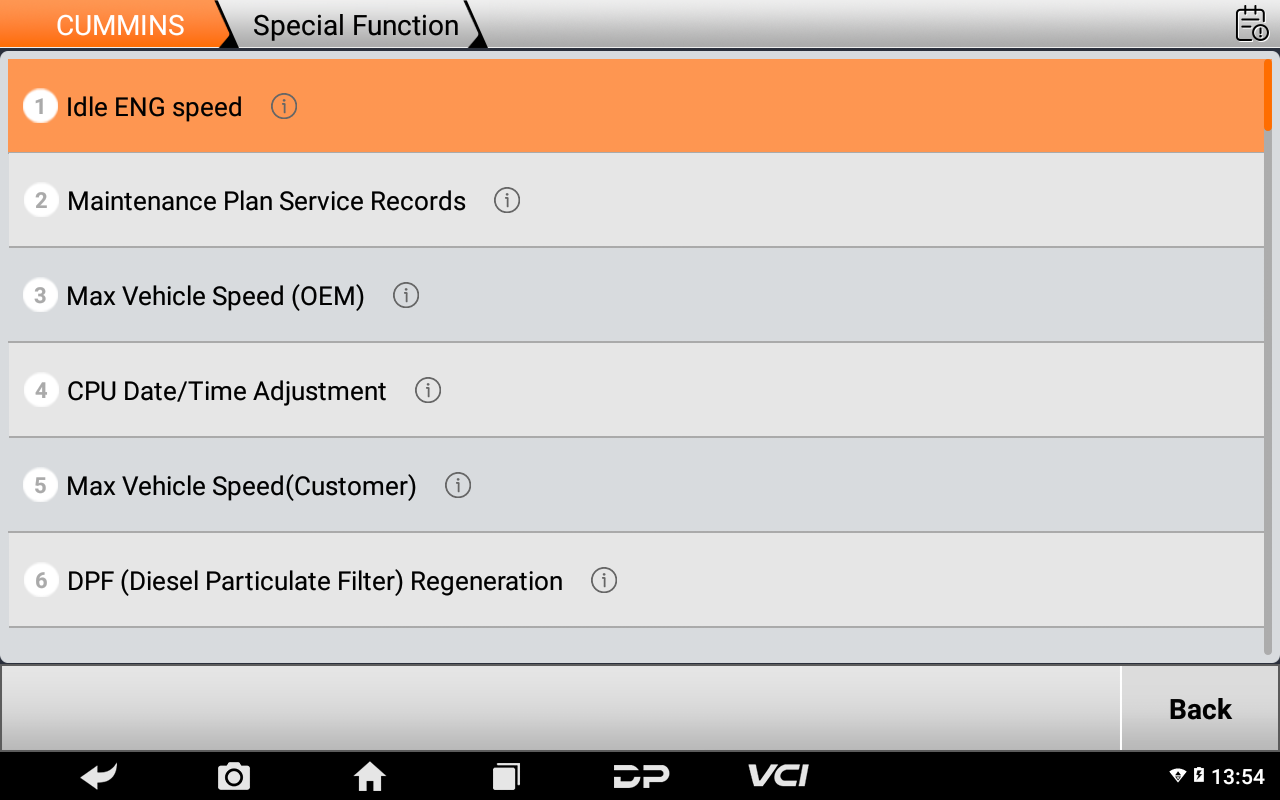

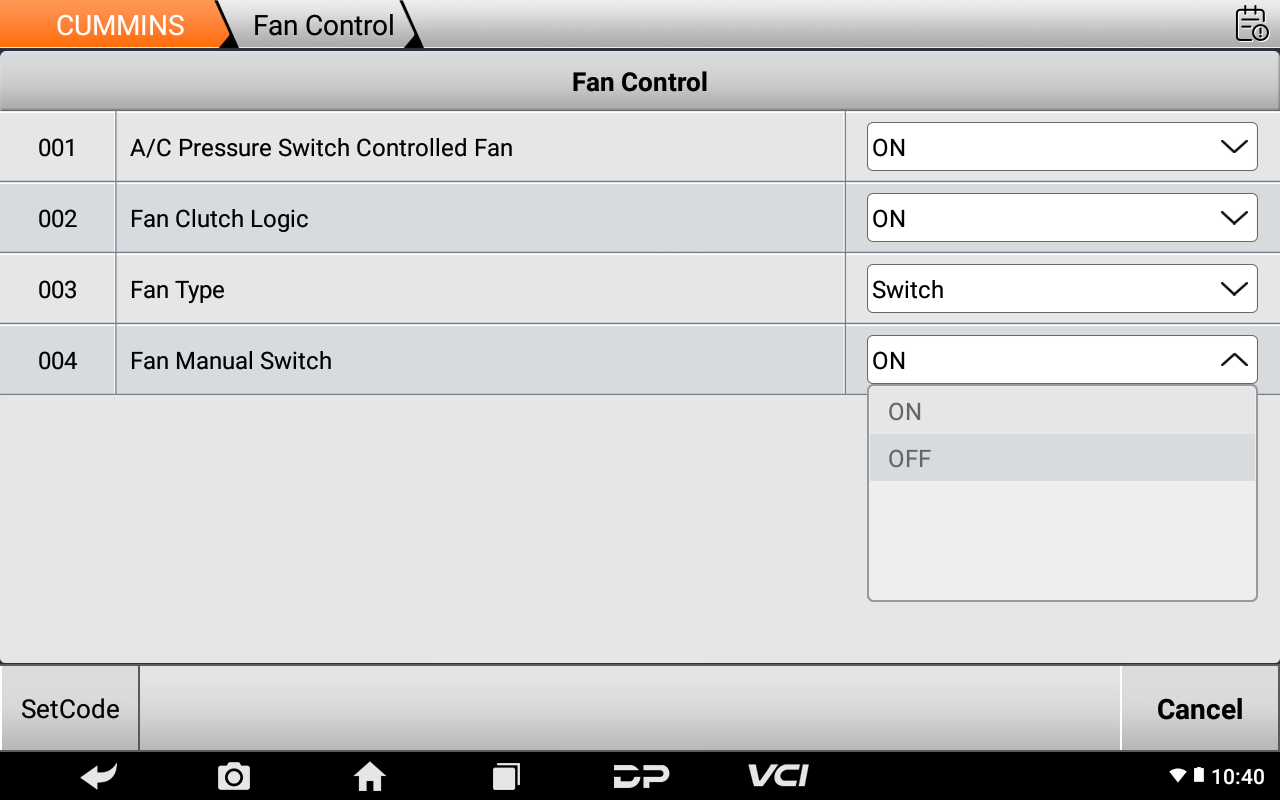

7) Special Functions-CUMMINS

8) Special Functions-EVINRUDE

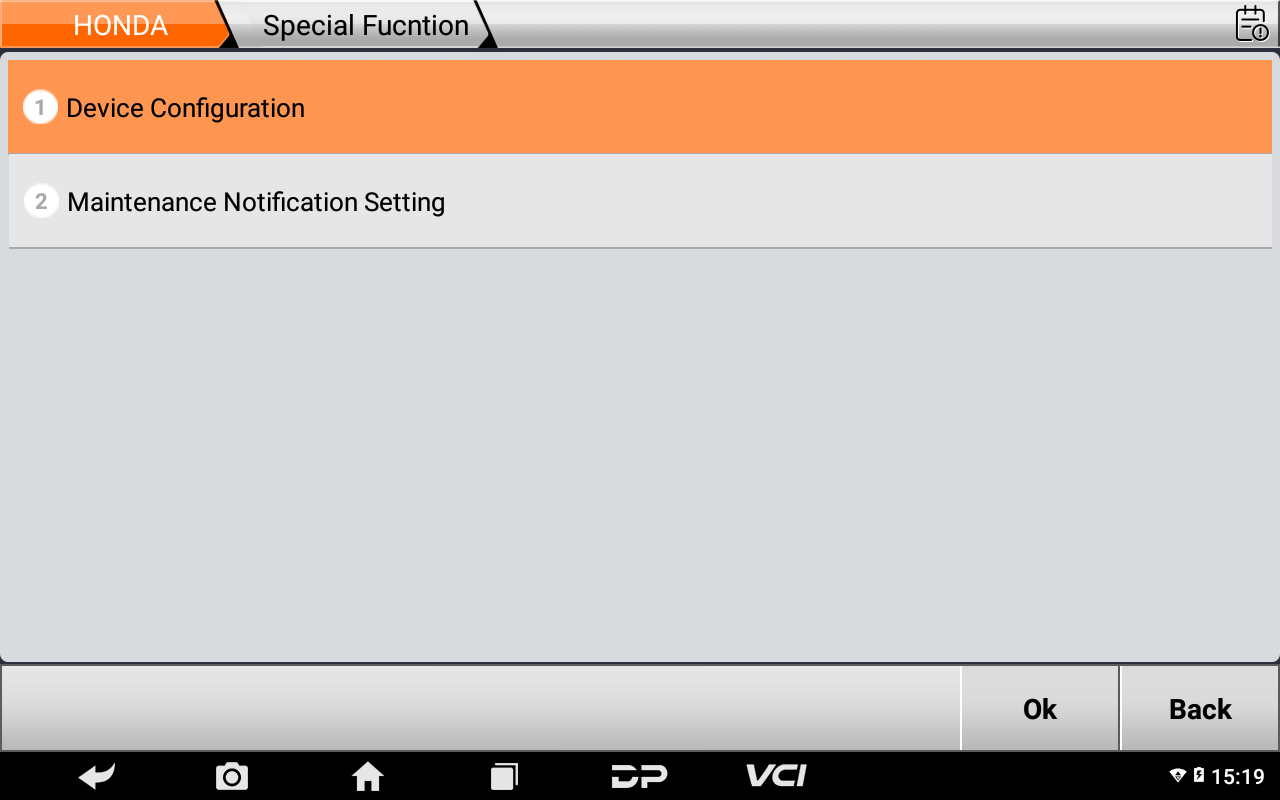

9) Special Functions-HONDA

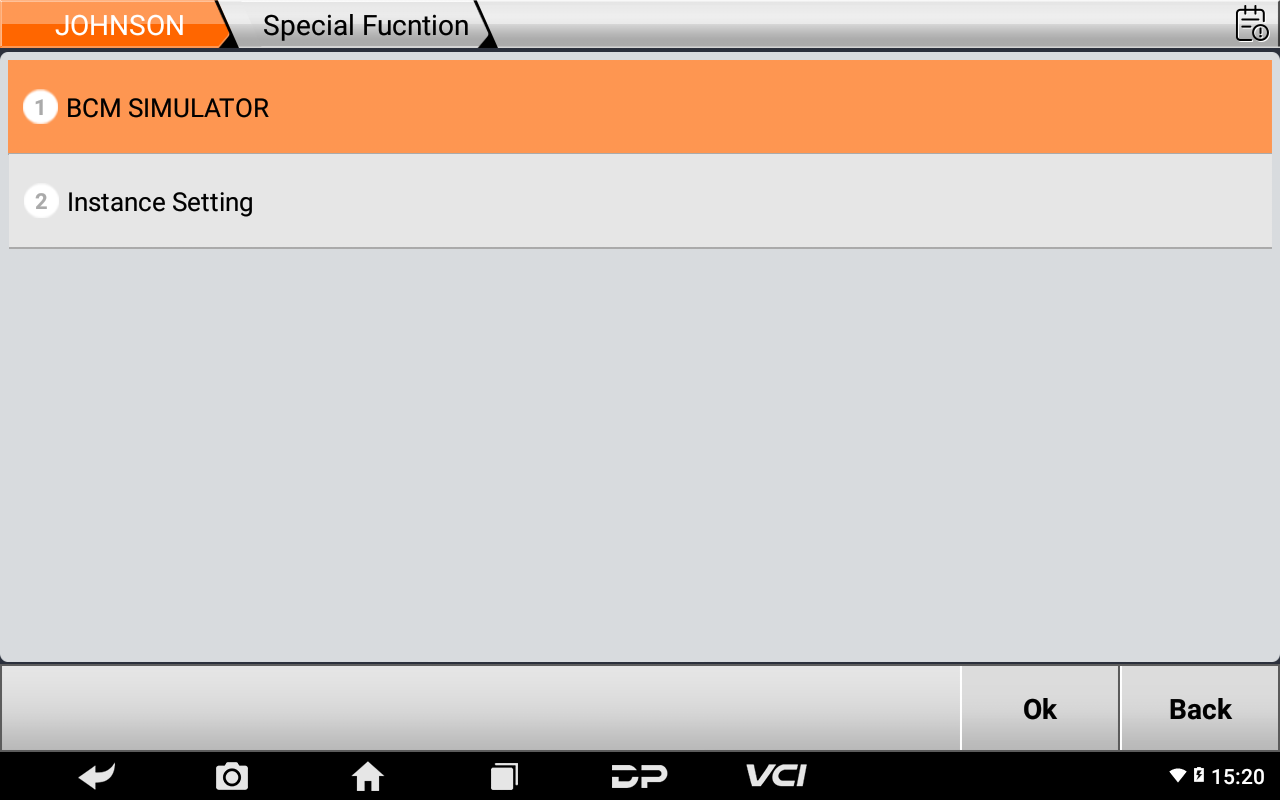

10) Special Functions-JOHNSON

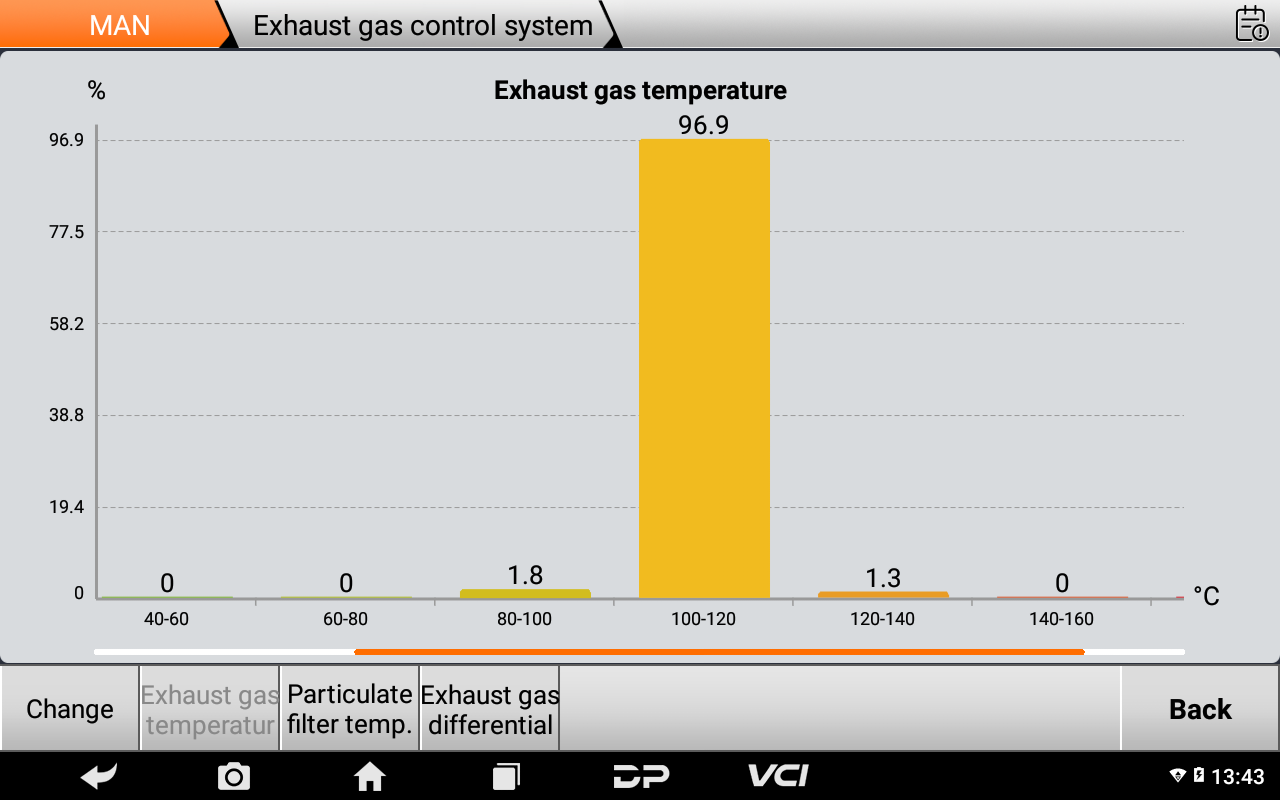

11) Special Functions-MAN

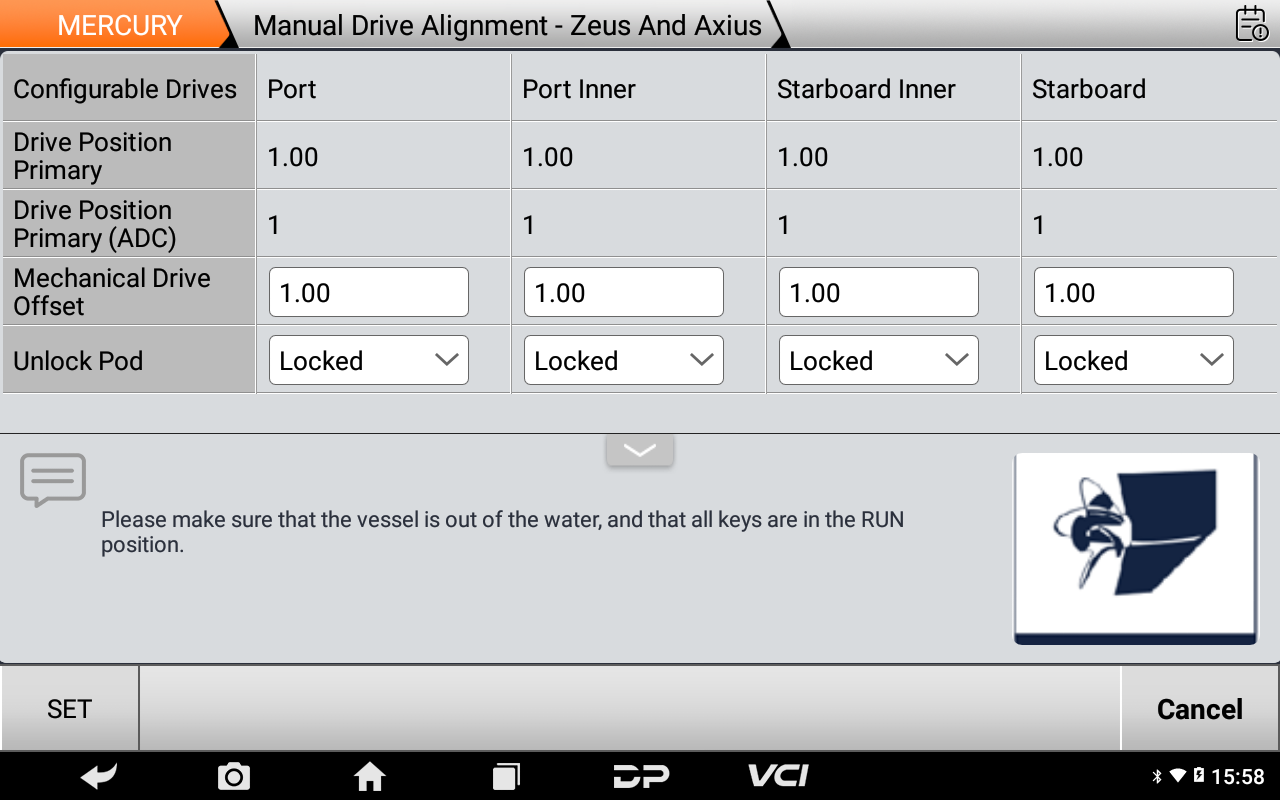

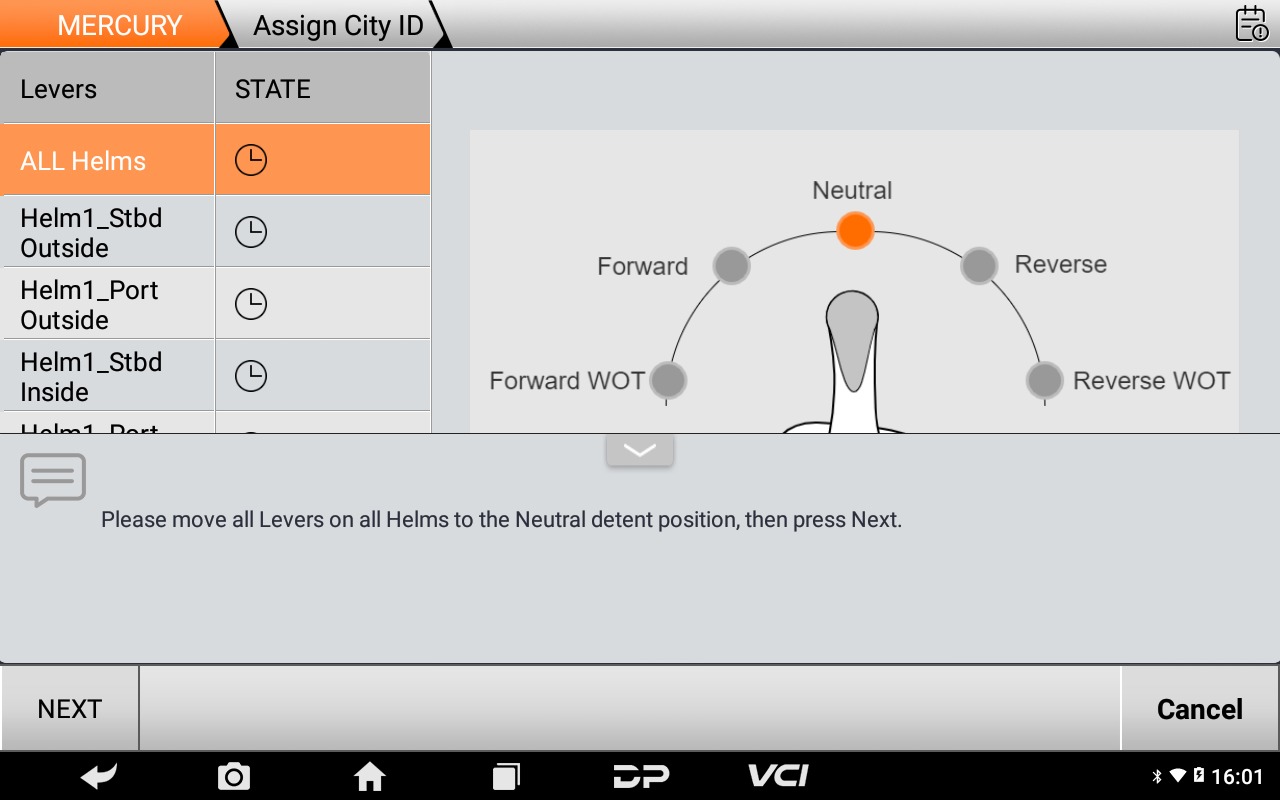

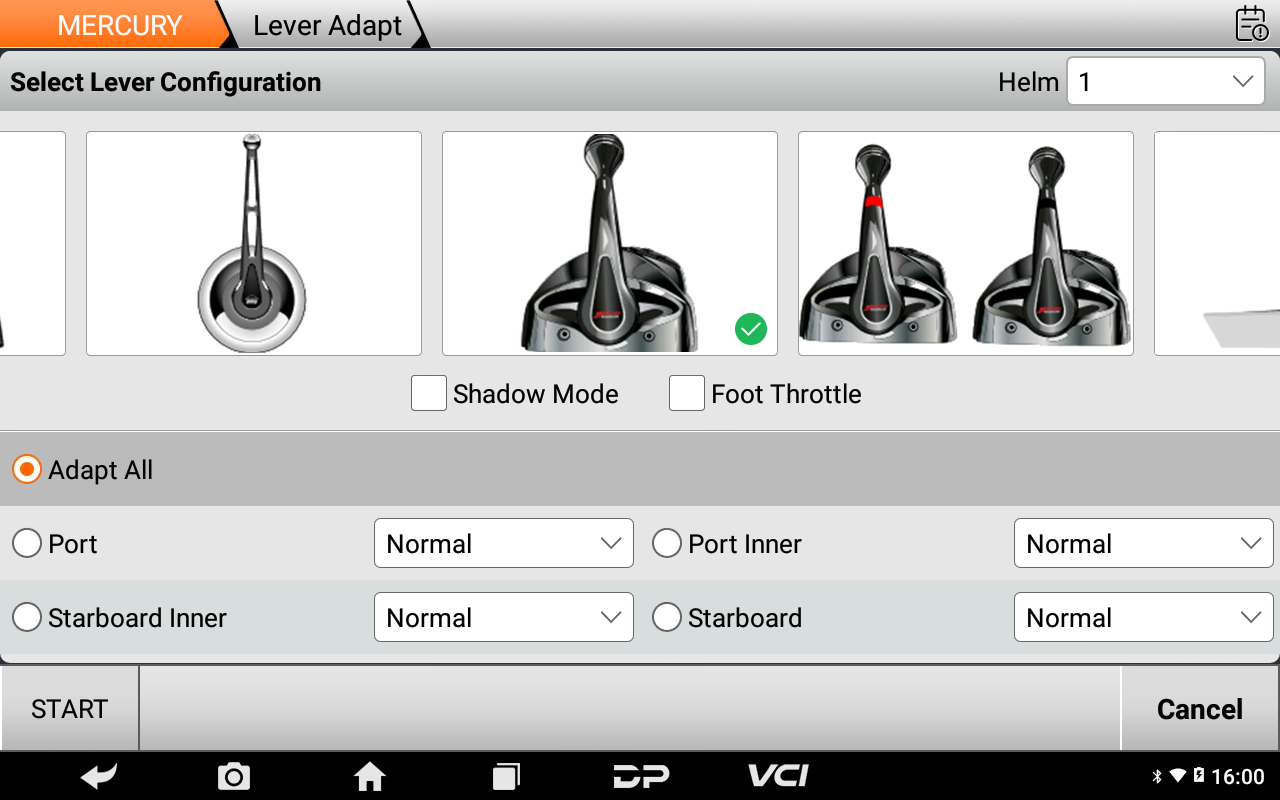

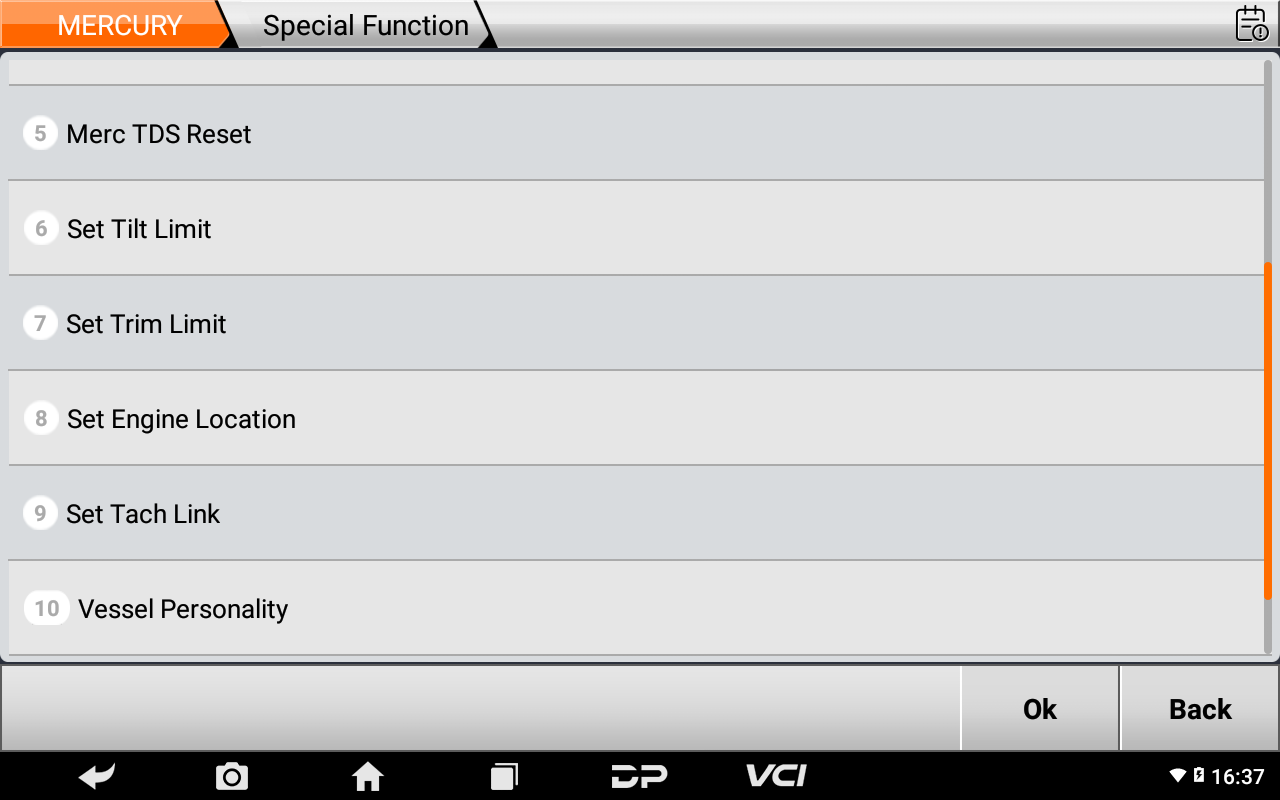

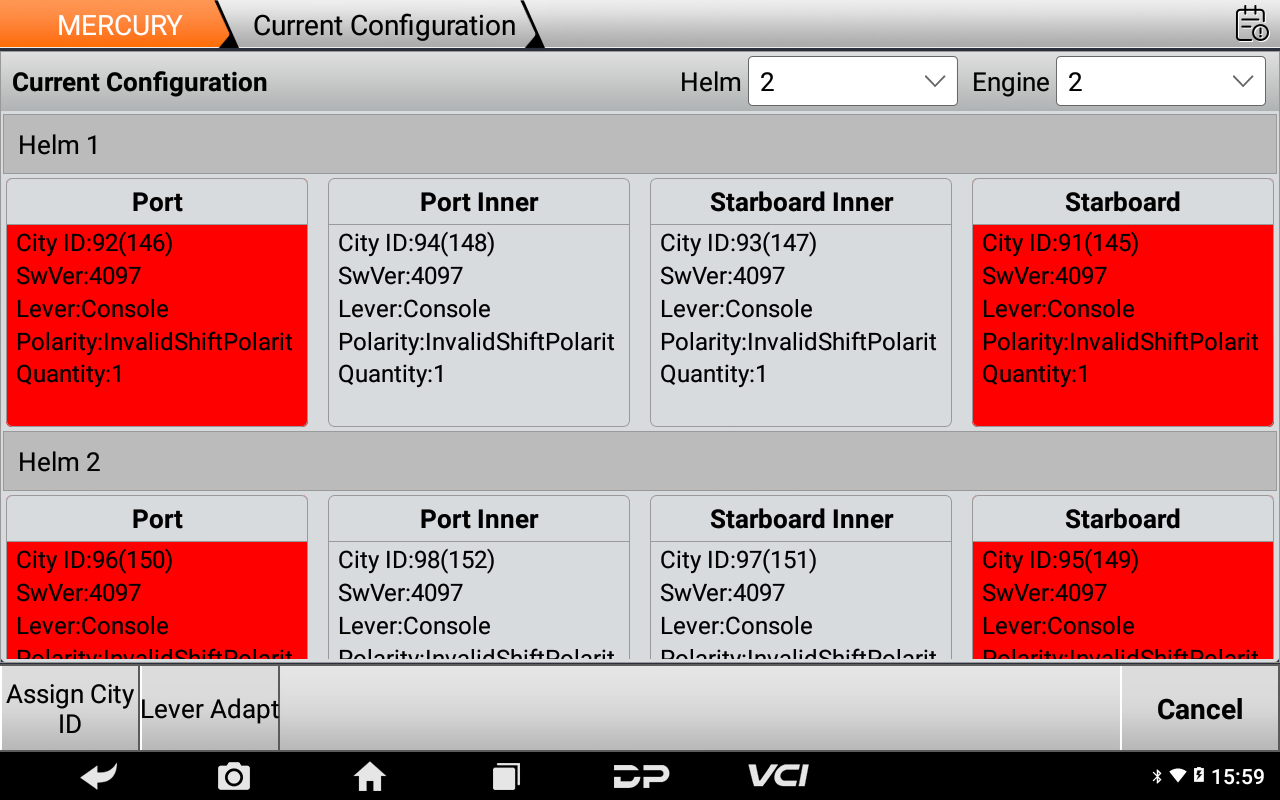

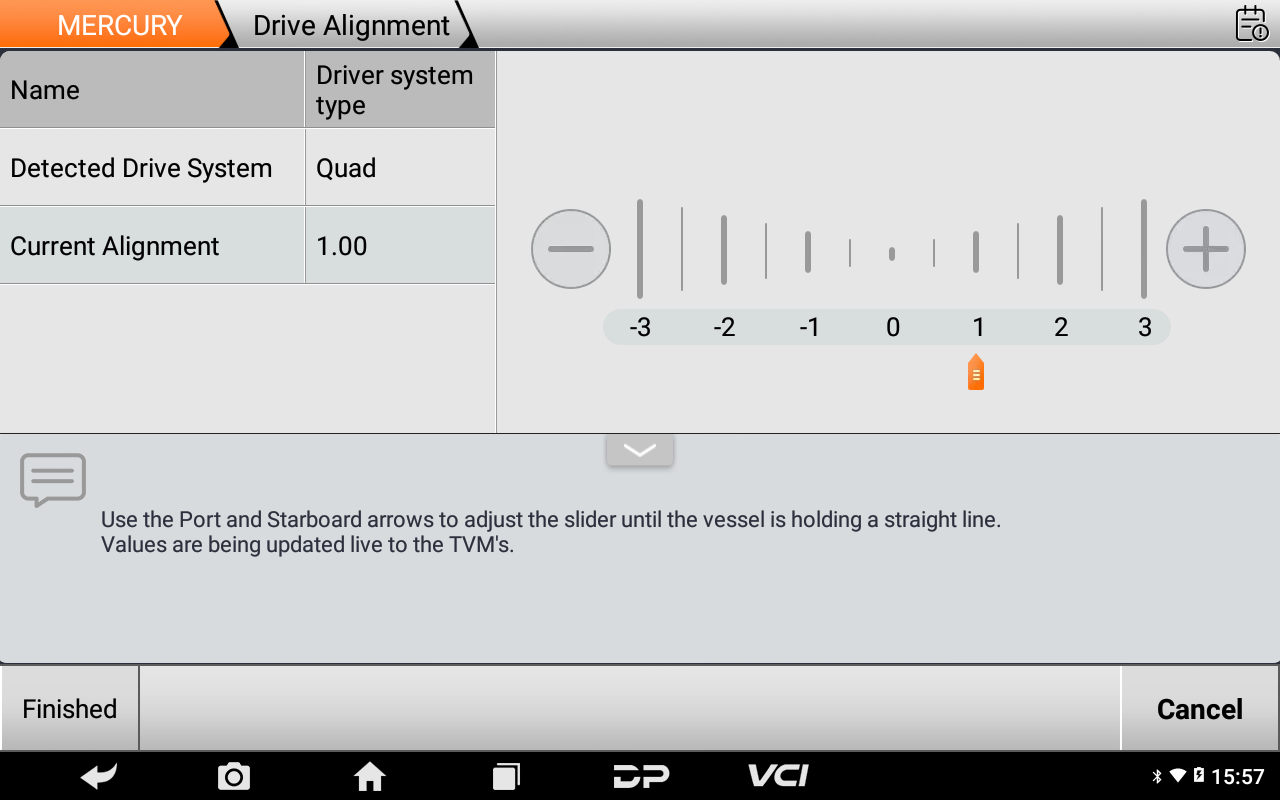

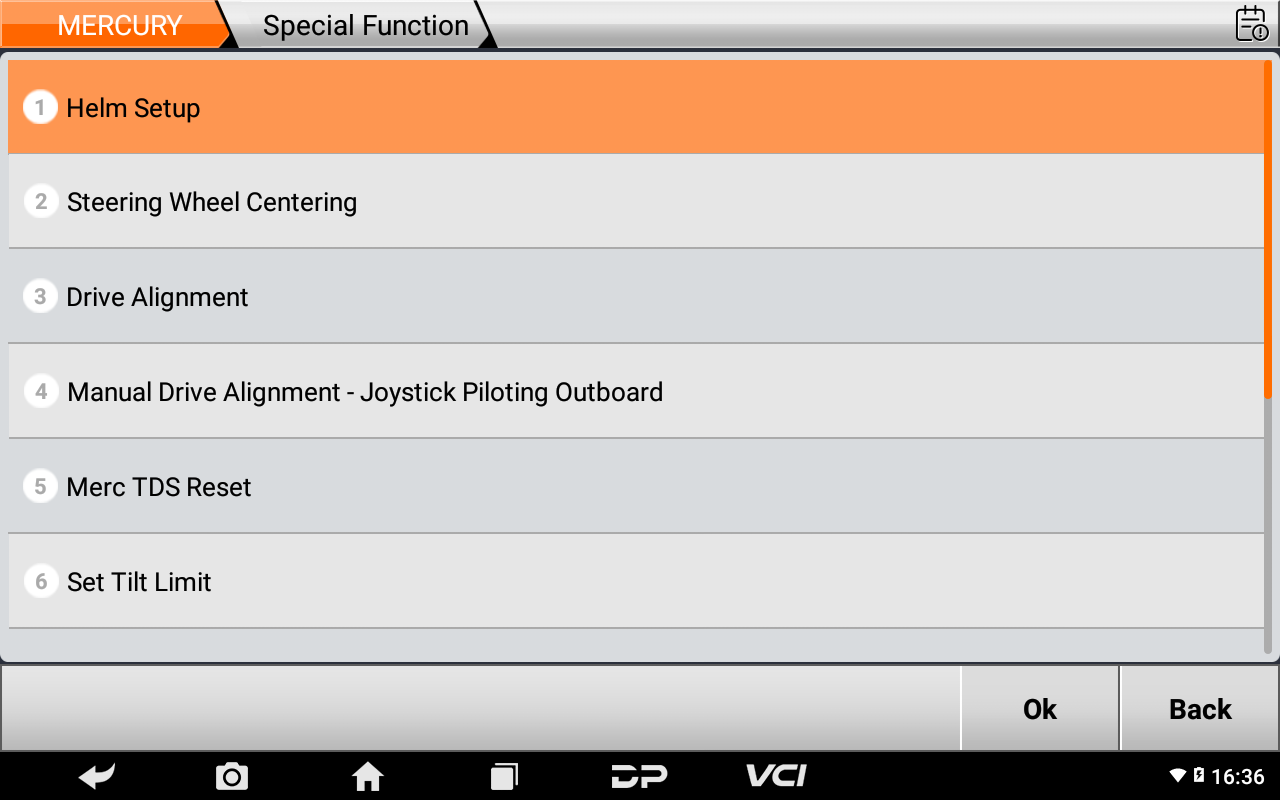

12) Special Functions-MERCURY

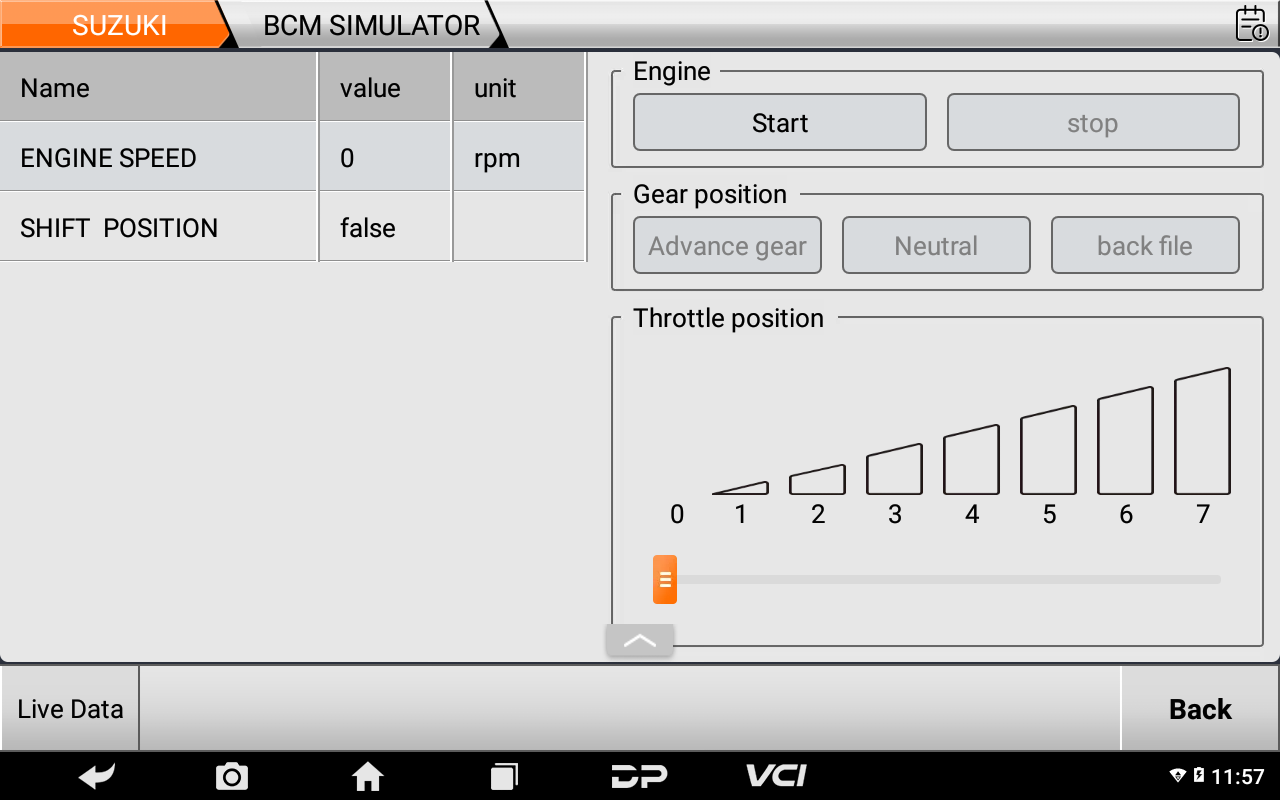

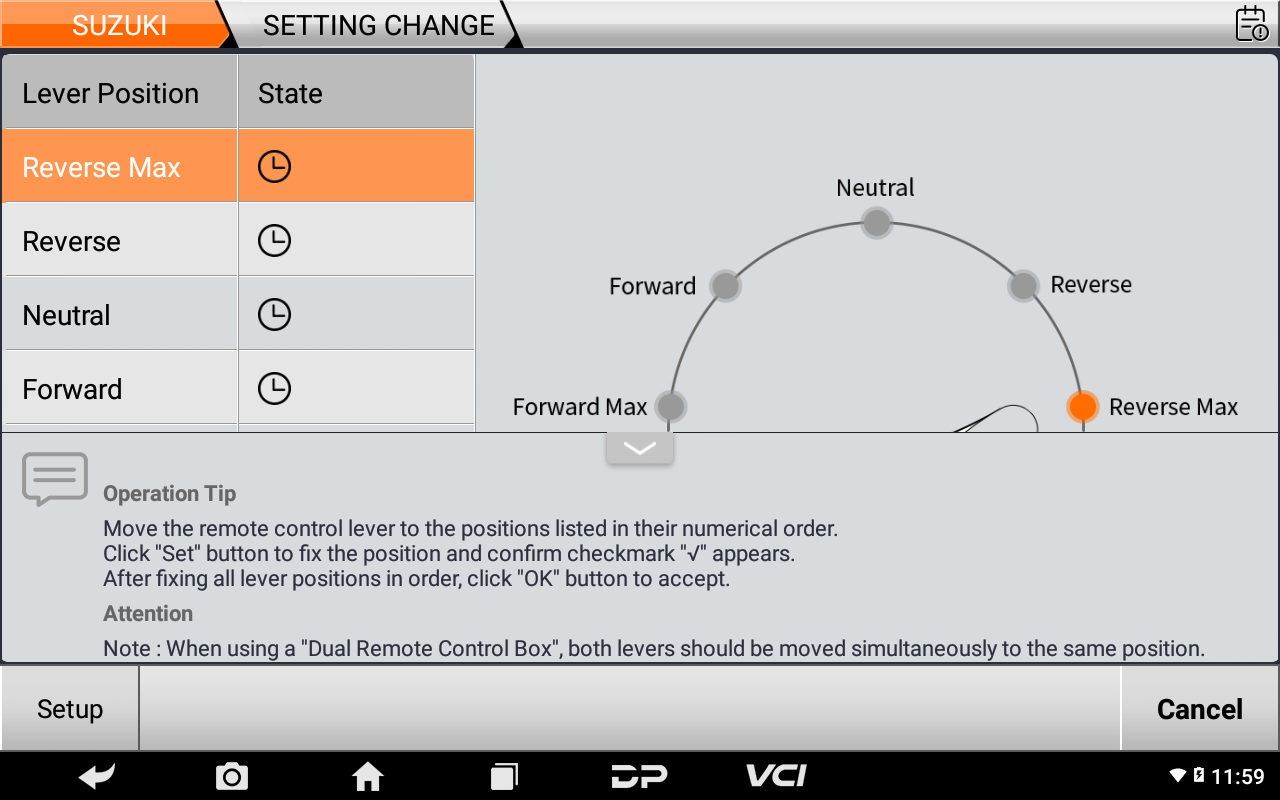

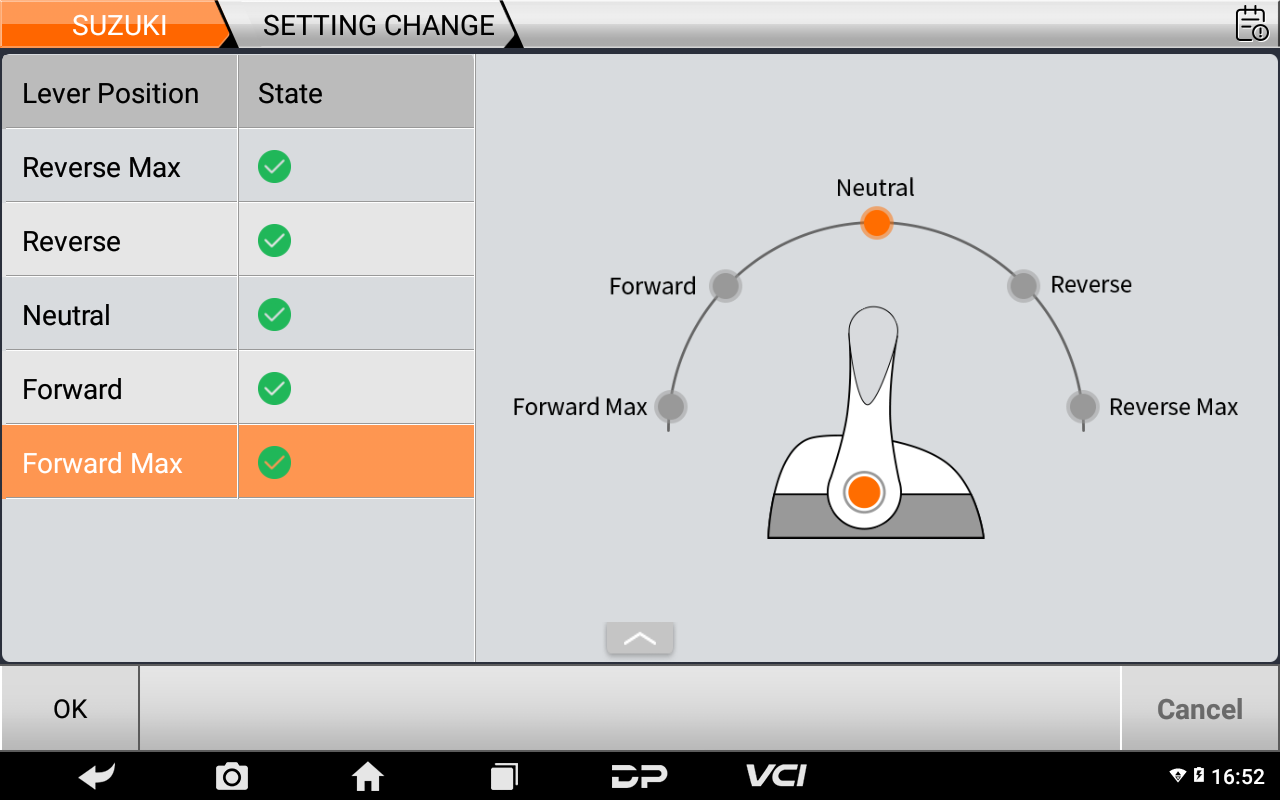

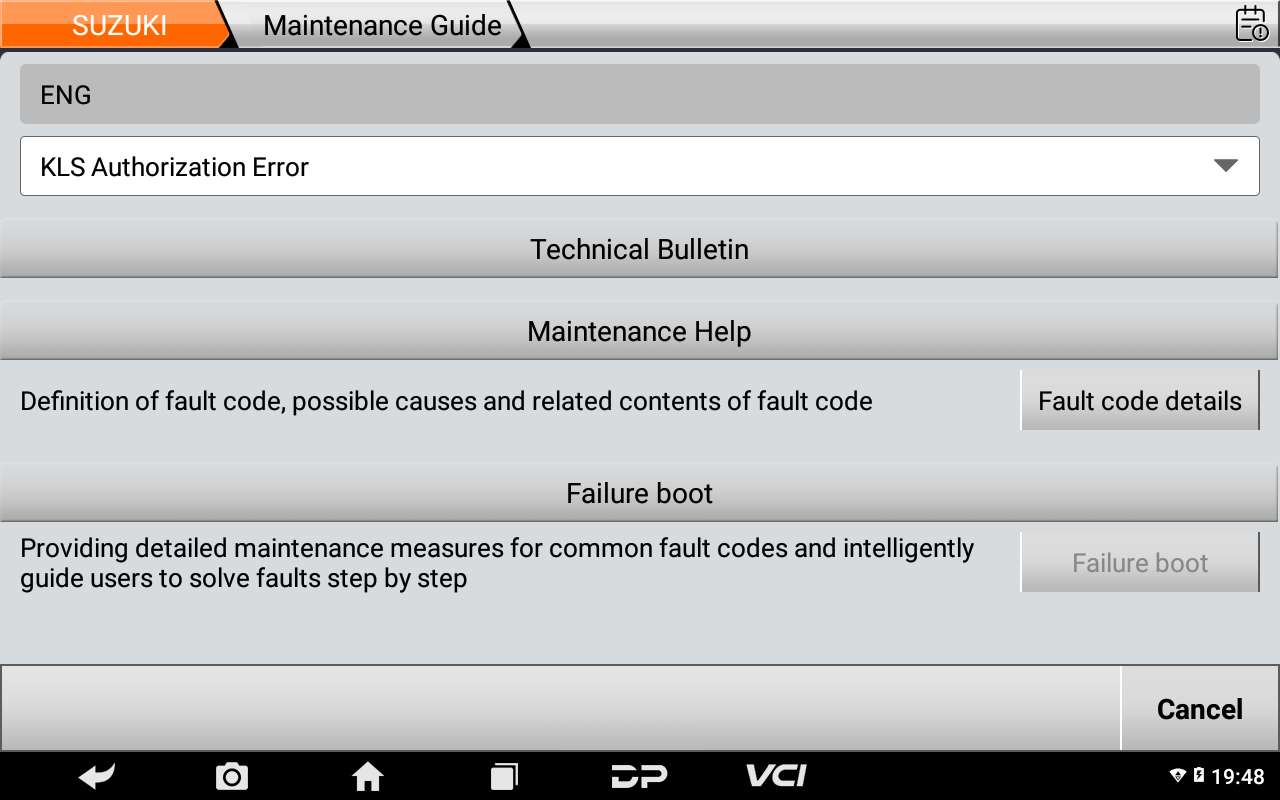

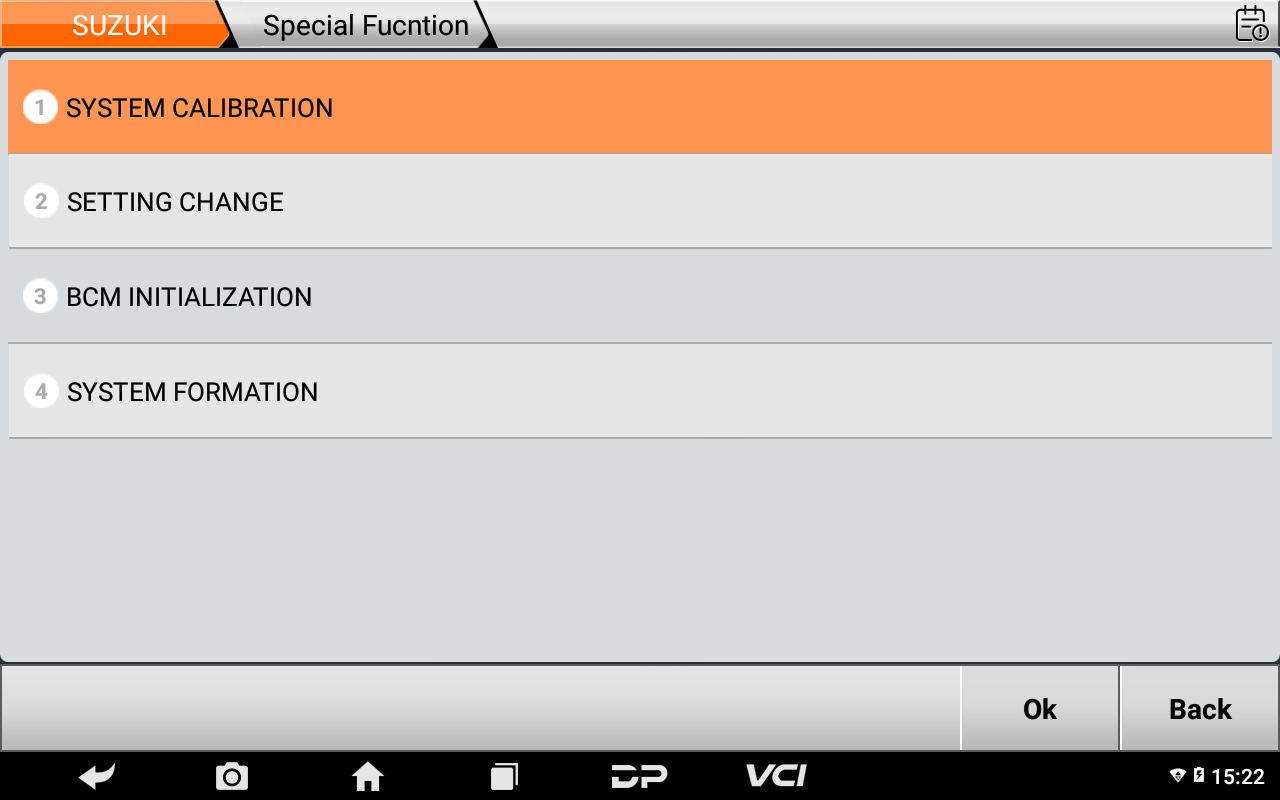

13) Special Functions-SUZUKI

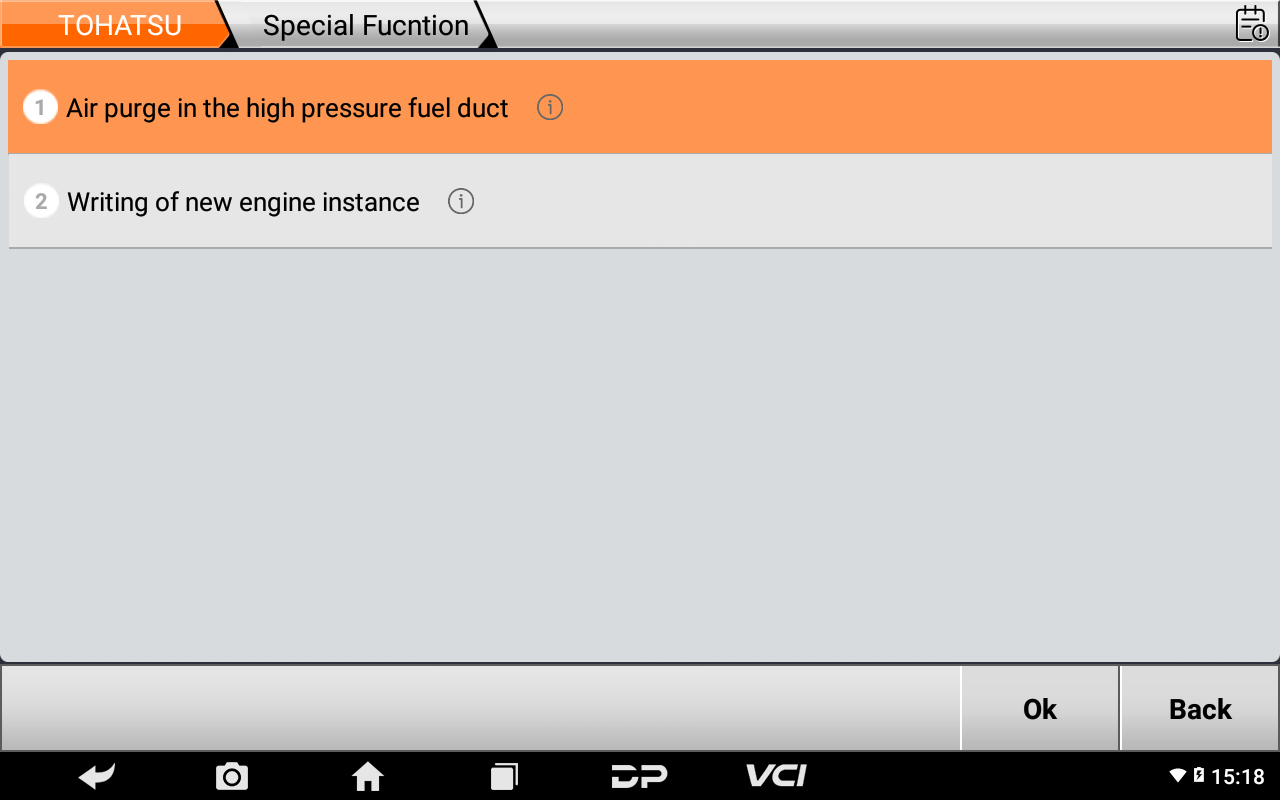

14) Special Functions-TOHATSU

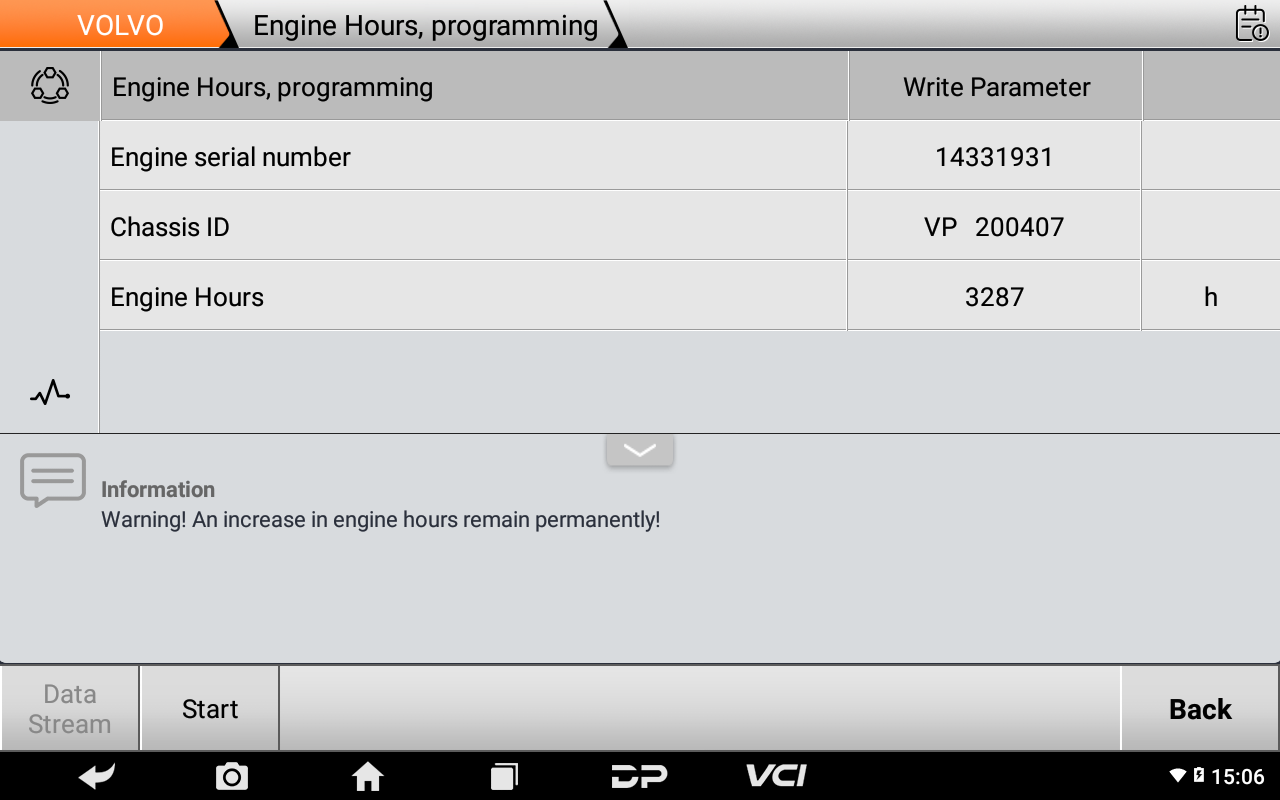

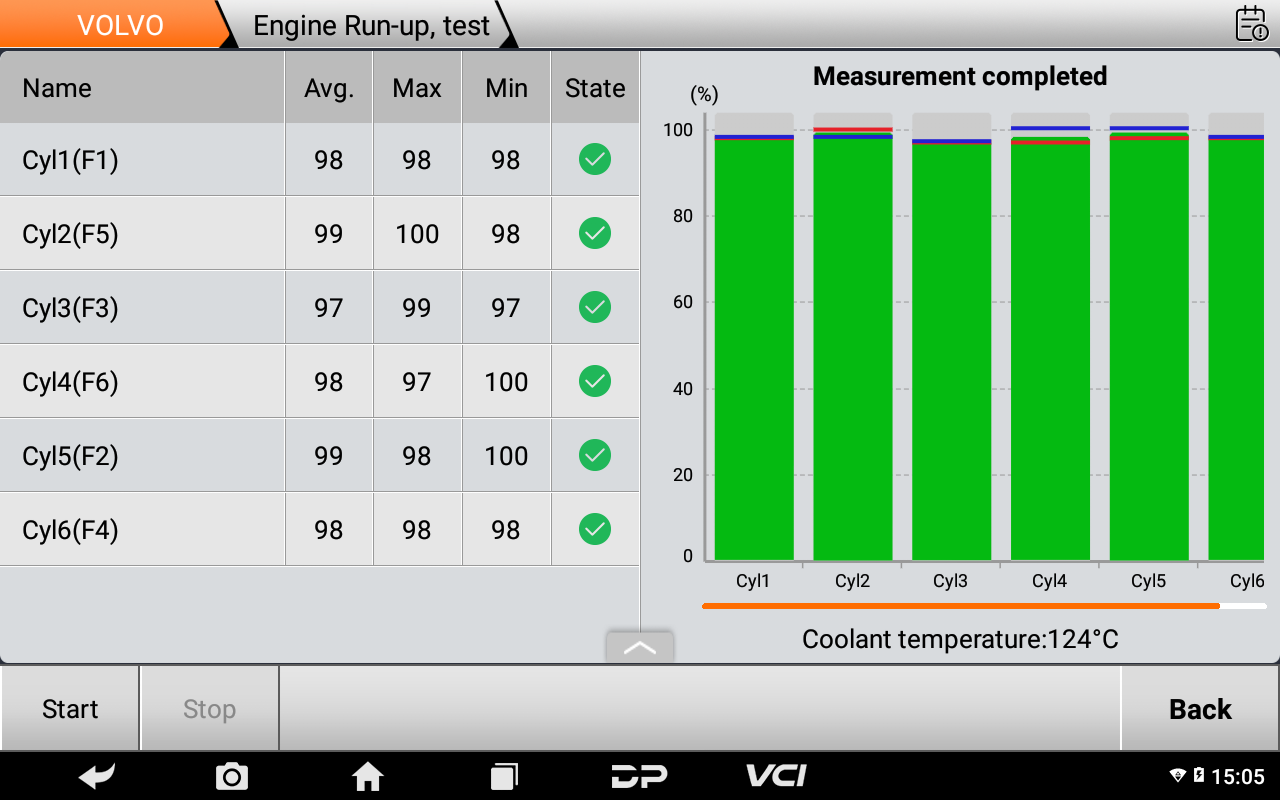

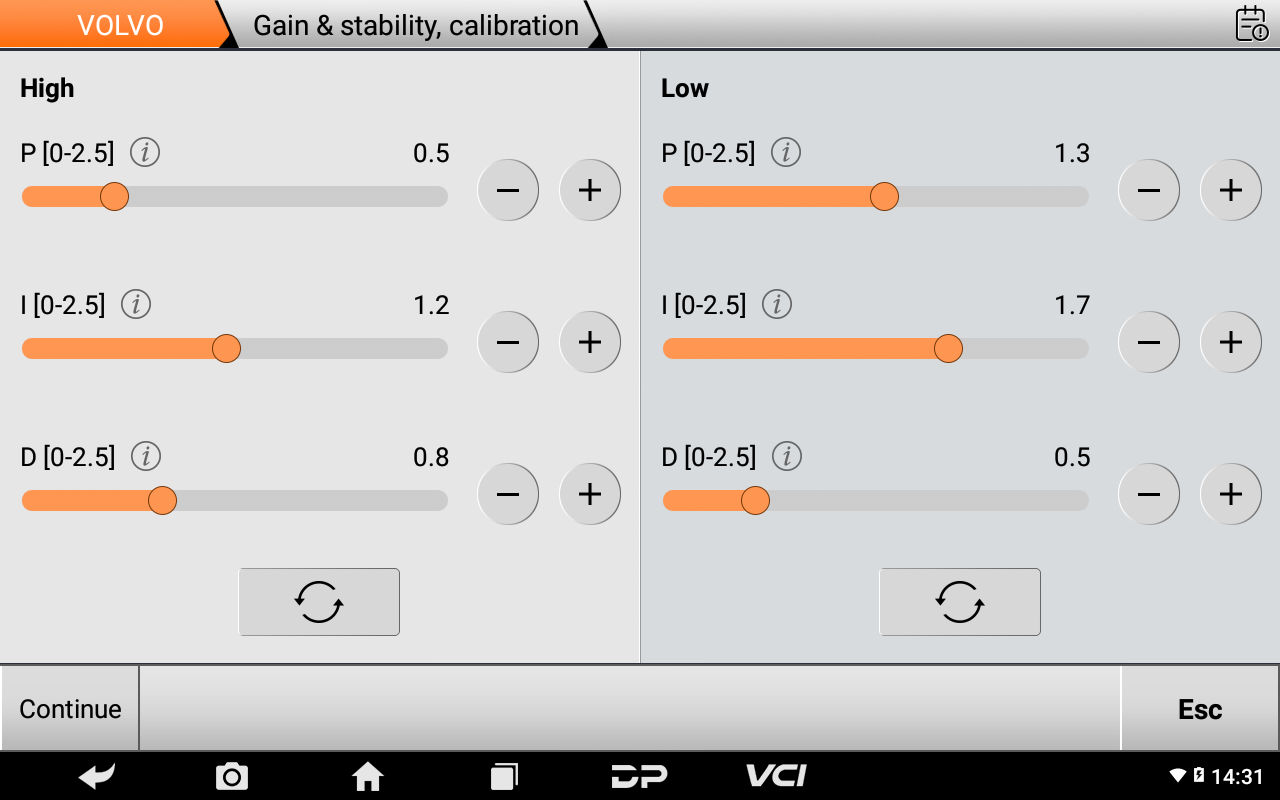

15) Special Functions-VOLVO

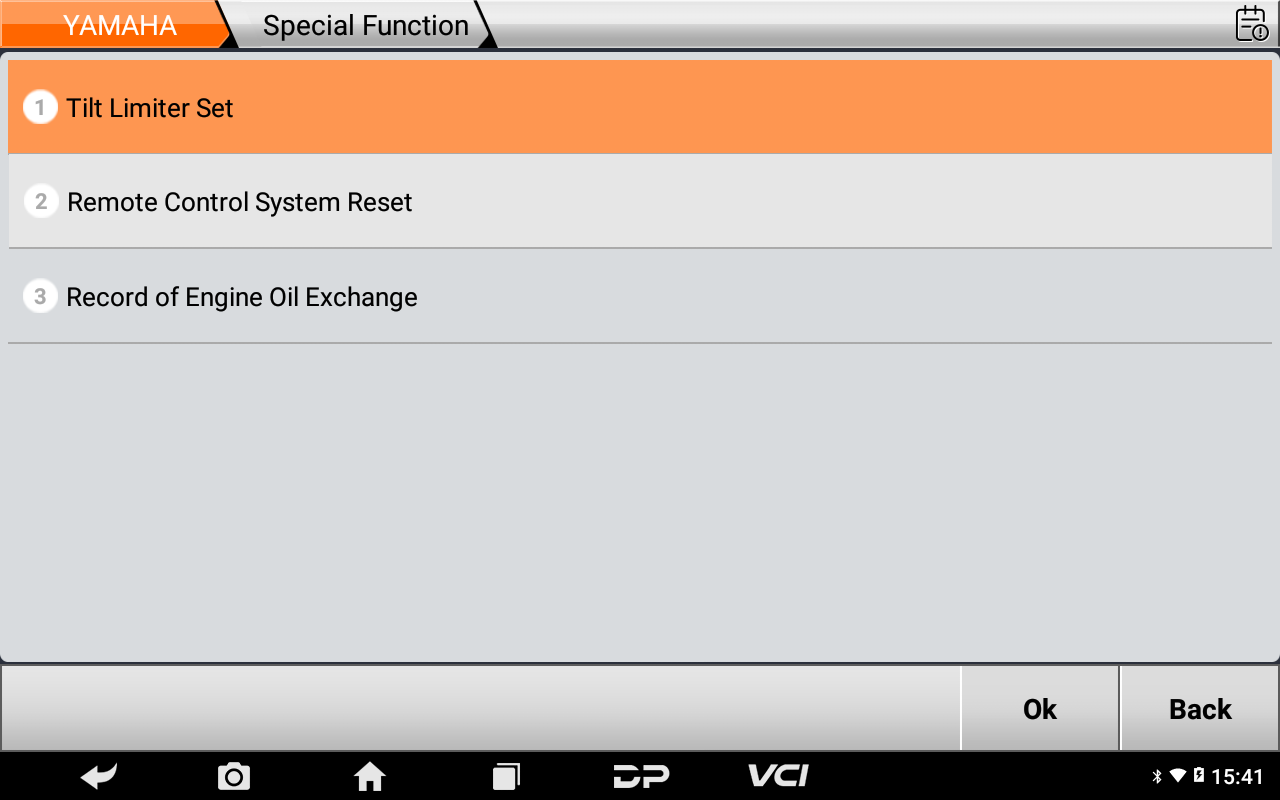

16) Special Functions-YAMAHA
