Key Features
- FLEX FLK02 V02 Full Hardware Kit
- FLS0.1S ECU SLAVE software activation
- ECU programming
- OBD programming
- Bench programming
- ECU Flash Read / Write
- EEPROM operations for supported ECUs
- Full Backup for supported protocols
- Checksum functions for supported protocols
- ECU cloning for supported ECUs
- FLEXBox for advanced ECU programming
- Master–Slave workflow
- Software updates
Configuration
FLS0.1S – ECU SLAVE version for cars, vans and motorcycles with OBD and Bench programming support.
The SLAVE version is designed to work with a Master. Files are encrypted in the SLAVE workflow and file modification requires the connected Master.
Compatible Vehicles
FLS0.1S is designed for:
- Cars
- Vans
- Motorcycles
Actual ECU coverage and available functions depend on the selected FLEX protocol.
OBD Programming
OBD mode allows supported ECUs to be programmed through the vehicle’s diagnostic connector.
Depending on the ECU and protocol, available functions may include:
- ECU Read
- ECU Write
- Flash Read / Write
- EEPROM operations
- Checksum
- Other protocol-specific functions
Bench Programming

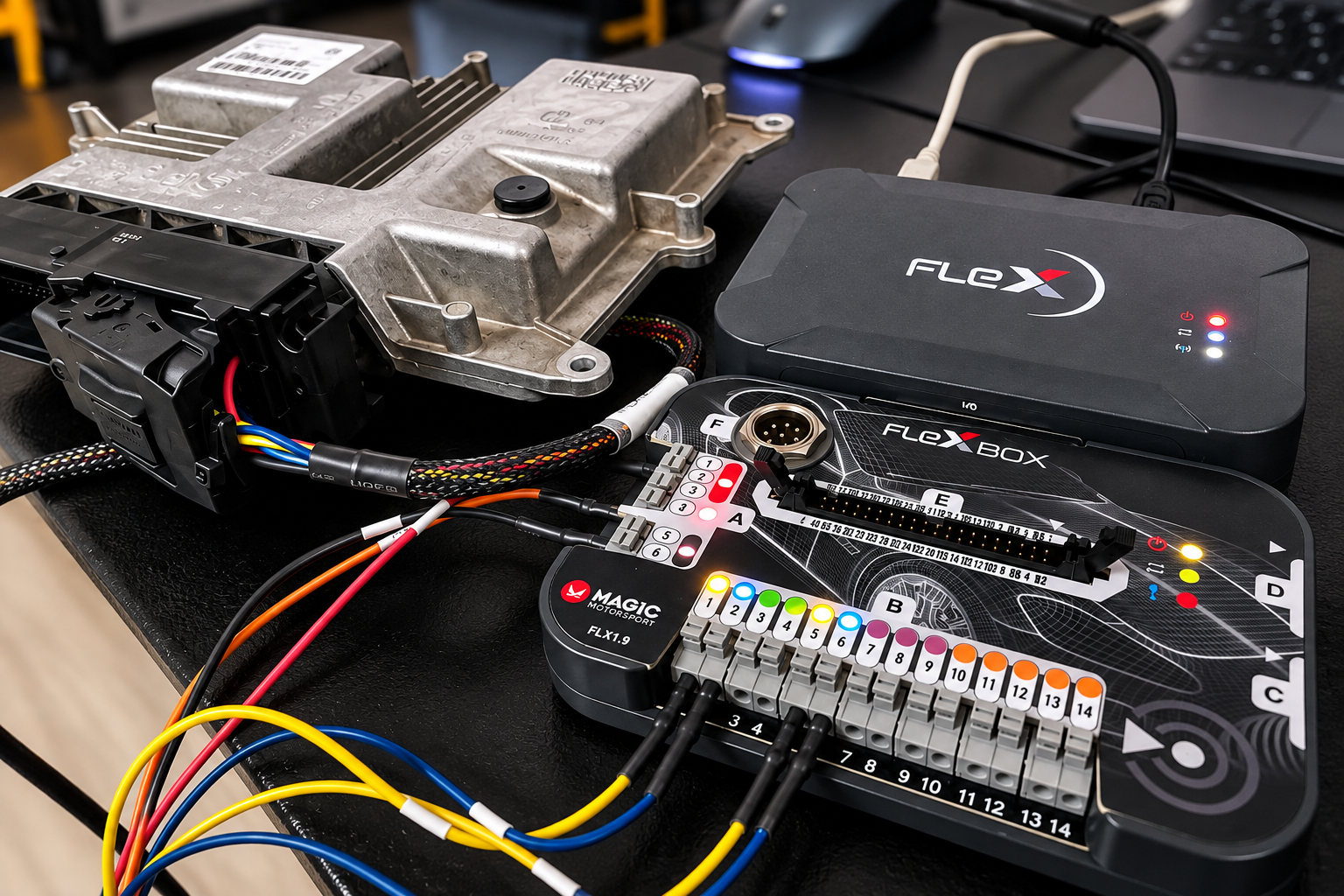

Bench mode is designed for direct ECU connection and programming on a workbench.
It is particularly useful when OBD programming is not supported or direct access to the ECU is required.
Depending on the ECU, Flash, EEPROM, Full Backup, Checksum and other functions may be available.

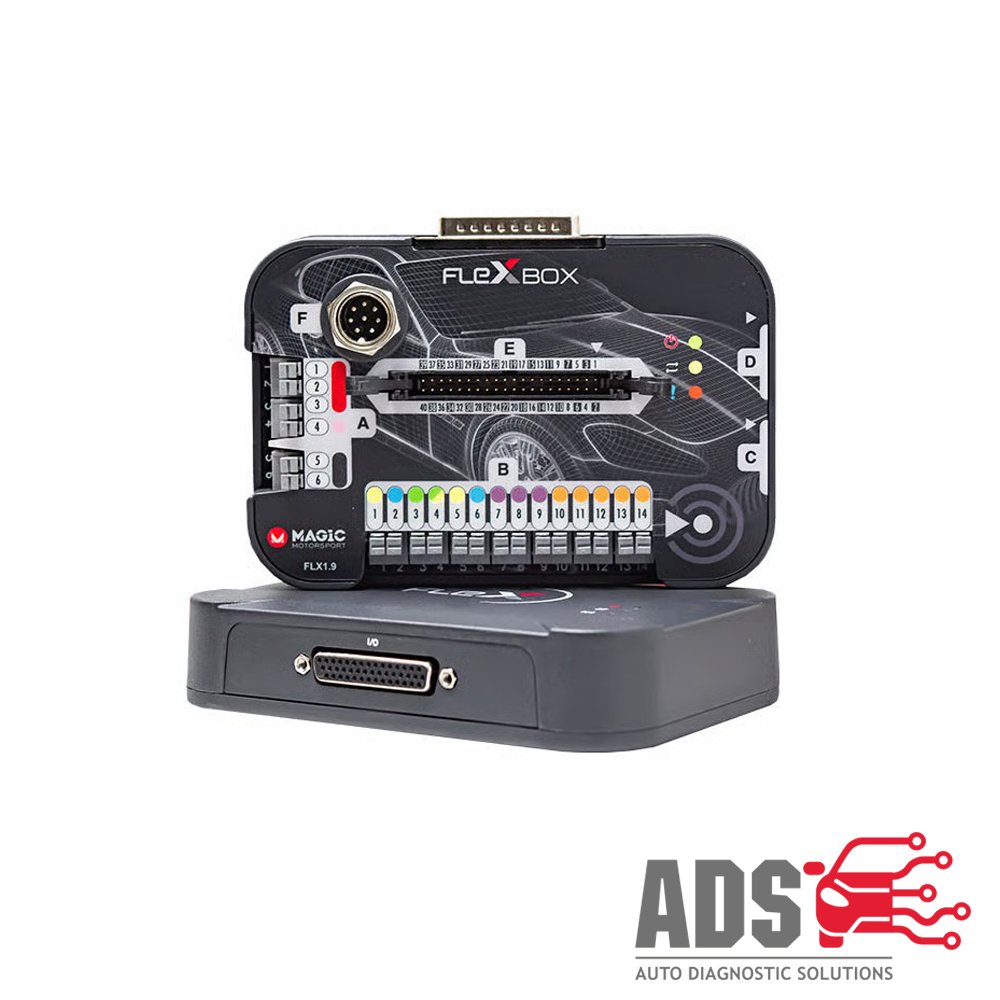

FLEXBox
FLEXBox is a hardware component designed for advanced ECU programming.
Depending on the supported ECU and protocol, FLEXBox can be used for programming modes including BDM, Bootloader, JTAG and AUD.
This allows the FLEX system to be used for advanced ECU programming and repair operations in addition to standard OBD programming.
ECU Reading & Writing
Depending on the selected ECU and protocol, FLEX may support:
- Internal Flash Read
- Internal Flash Write
- Internal EEPROM Read
- Internal EEPROM Write
- External EEPROM Read
- External EEPROM Write
- Full Backup
- Checksum Calculation
- Maps Read / Write
- ECU Cloning
Important: not every ECU supports all listed functions. Available functions depend on the specific ECU and FLEX protocol.
ECU Cloning
For supported ECUs, FLEX may provide ECU cloning functionality.
Depending on the selected protocol, required data can be read from the original ECU and transferred to a compatible replacement control unit.
Master–Slave System
FLS0.1S is the SLAVE version.
The SLAVE user works with encrypted files and cannot directly modify them. File encryption and decryption are handled by the connected Master user.

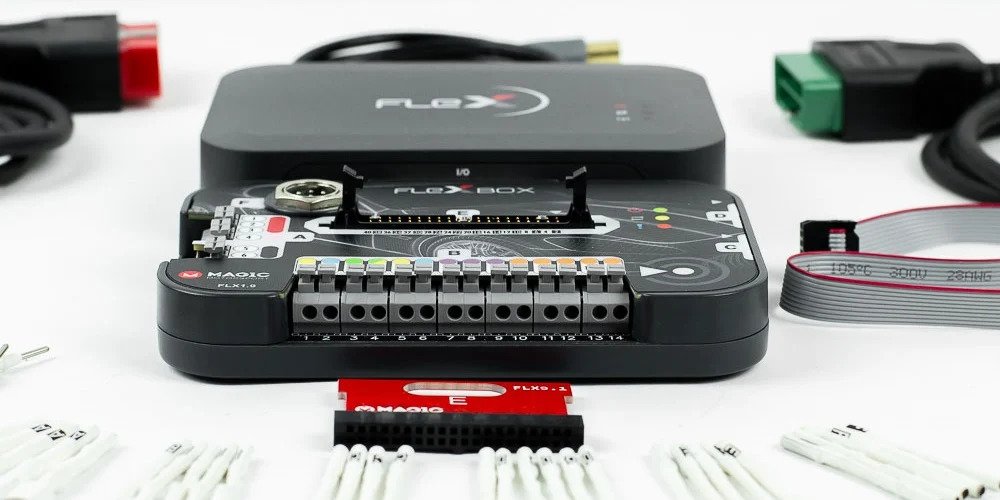

FLEX FLK02 V02 Full Hardware Kit
FLK02 V02 is a complete FLEX hardware kit designed for professional ECU and TCU programming.

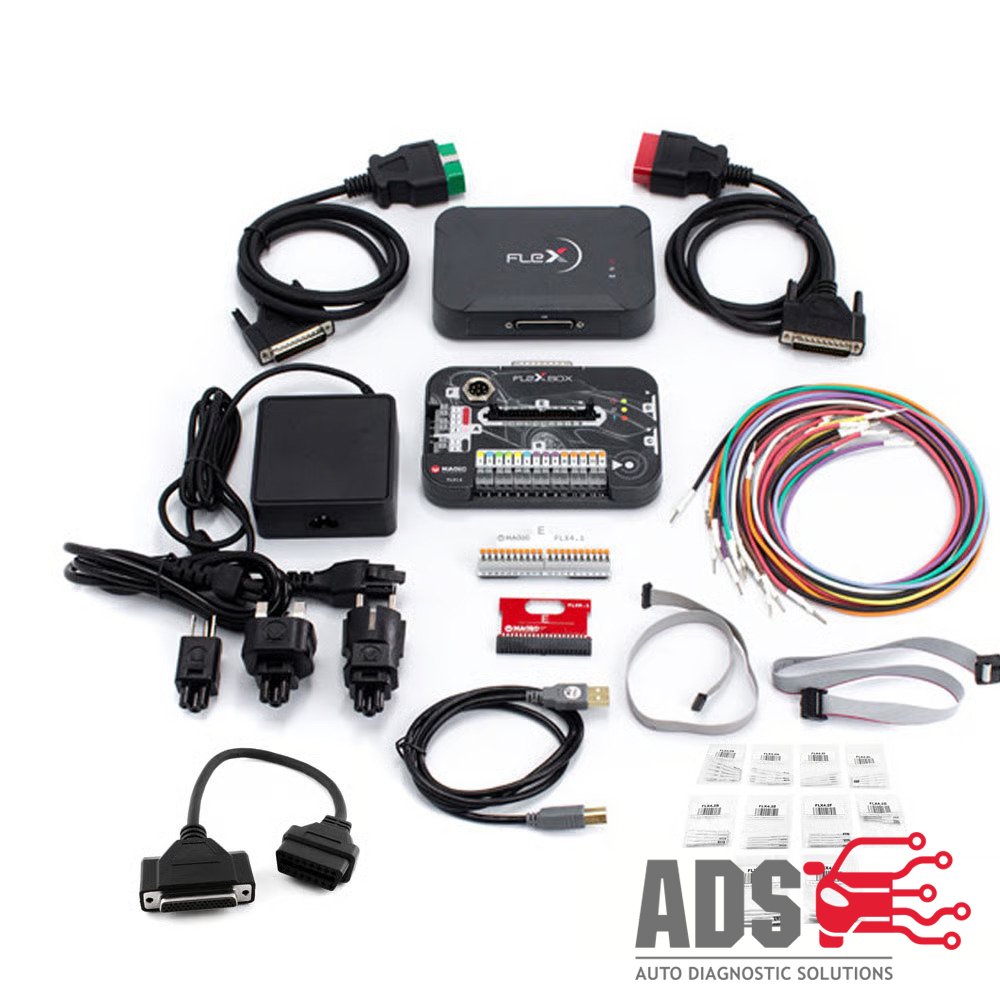

The kit includes the FLEX main module, FLEXBox, wiring harness, OBD and ECU connection cables, adapters and power supply equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | MAGIC Motorsport |
| System | FLEX |
| Hardware | FLK02 V02 Full Hardware Kit |
| Software | FLS0.1S |
| License Type | SLAVE |
| Application | ECU Programming |
| Vehicles | Cars, Vans, Motorcycles |
| Programming Modes | OBD / Bench |
| FLEXBox | Yes |
| Flash | Protocol dependent |
| EEPROM | Protocol dependent |
| Full Backup | Supported ECUs |
| Checksum | Supported protocols |
| ECU Cloning | Supported ECUs |
| Master–Slave | Yes |
| Software Updates | Yes |
