ChipTuning PRO is an editing software usually used in conjuction with ChipLoader and Combiloader. The program allows modifying the calibration files of the injection control system by changing the parameters of:
- the air-fuel mixture in different modes;
- injection phase;
- spark advance;
- fuel delivery at start;
- zones for changing the engine operating mode;
- various correction factors;
- complete set of lambda probes;
- DTC mask and much more (hundreds of tables and calibration constants).
Main features

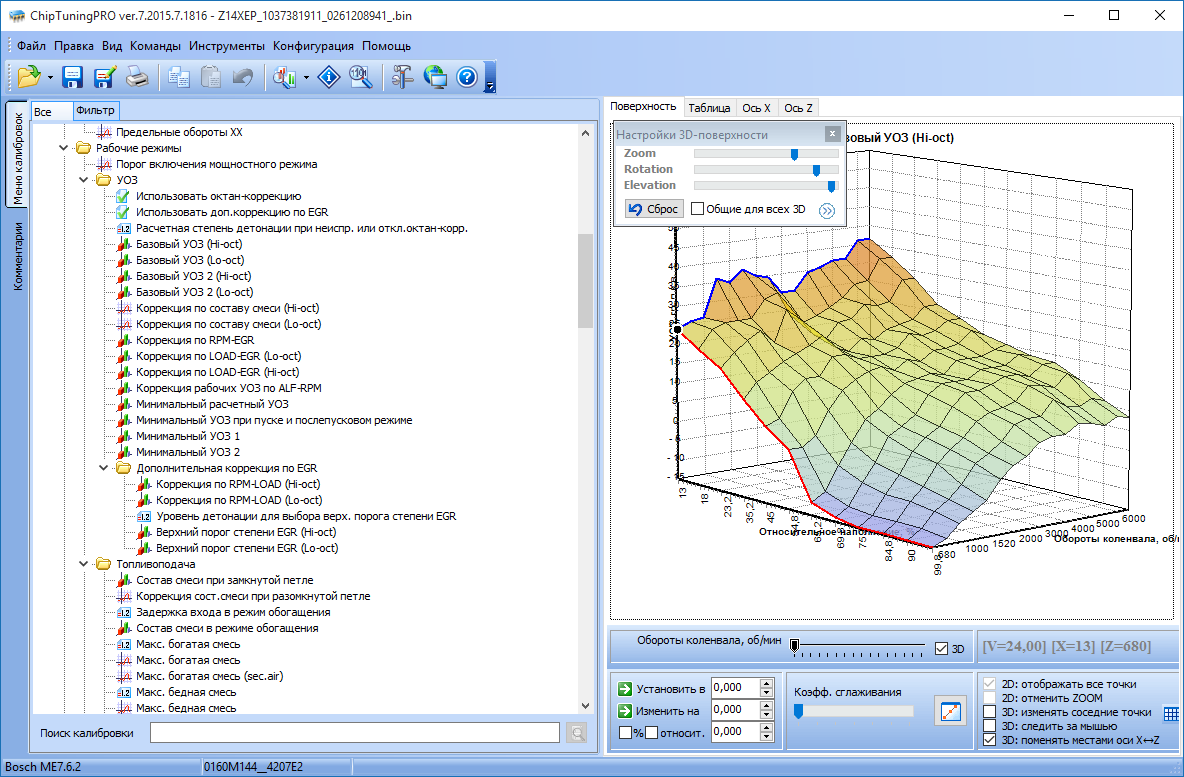

Displaying of calibration constants in the form of graphs (2D) and surfaces (3D) with the possibility of editing
- Anti-aliasing function for 3D maps;
- Built-in HEX editor;
- Viewing and editing maps in the form of tables with the ability to export to MS Excel;
- Automatic calculation of checksums;
- Automatic generation of digital signatures (Bosch ME17.9.7);
- Comparison function of two files with detailed visualization of differences;
- Export and import of individual calibrations or sets of calibrations;
- Filter to display a set of the most important calibrations;
- User database for new versions of the files;
- Ability to save comments to firmware (Rich Text Format);
- Special functions for ECM Bosch M1.5.4 (file copy protection, writing EEPROM via ROM);
- Built-in help system with additional materials and a detailed description of the ECM operation algorithms using the example of the Yanvar-5/7 system;
- Inserting calibrations from file.
Please note that most of the modules are available in the Russian language only. The support is provided in Russian.
ChipTuningPRO 7 Modules:
Bosch (19)
Bosch M7.9.7 China
Chinese vehicles with Bosch M7.9.7 and M7.9.7+.
Bosch ME7.9.7 China
This module allows chip-tuning of Chery cars (QQ, Fora, B11, Acteco, Elara, Jagga, Eastar) equipped with BOSCH ME7.9.7 ECUs. The module works in conjunction with ChipTuningPRO 7.0 or higher.
The maps contain more than 90 basic calibrations of the Bosch ME7.9.7 control system: start-up parameters (fuel, spark advance, output rpm, etc.), spark advance in all modes, injection phase, fuel ratio, Torque-Based Model, including E-GAS, lambda control calibrations, redline rpm, pickup calibration, etc.
Bosch M7.9.7 Kia
KIA vehicles with KEFICO or Bosch 7.9.7.
Bosch M7.9.7 Hyundai
Hyundai vehicles with KEFICO or Bosch 7.9.7.
Bosch M7.8 China
Chinese vehicles with Bosch M7.8.
Bosch ME7.8.8 China
Designed for chip-tuning of Chinese-made vehicles with atmospheric gasoline engines with electronic throttle, ECU Bosch ME7.8.8.
The module works together with ChipTuningPRO 7.2014 or higher. ECU programming is done using the CombiLoader.
When developing this module, numerous wishes of our users were taken into account, as a result of which a large amount of work was carried out on a deeper study of the algorithms of the torque model, fuel supply, filters and torque limits, the AntiJerk algorithm and the VVT system. By popular demand from users from Uzbekistan, the calibrations of the engine cooling system have been added. It is possible to flexibly control the driving characteristics of the vehicle and the response to the foot trottle. The maps contain about 350 calibrations, some sections and individual calibrations have an additional description of algorithms for calculating the main parameters of the system.
Bosch M7.9.8 Hyundai / Kia
Hyundai and KIA (Cerato, Ceed, ProCeed, Rio etc.) with Bosch M(G)7.9.8 or KEFICO.
Bosch ME7.9.9 Chevrolet Captiva
Chevrolet Captiva with 2.4L engine with BOSCH ME7.9.9
Bosch ME9.1 Chevrolet Captiva
Chevrolet Captiva and Opel Antara vehicles with 3.2L engines.
Bosch ME7.6.x Opel
Opel vehicles with Z10XEP, Z12XEP, Z14XEP.
Bosch ME7.6.x Opel Z20LEx
Opel with turbo pressure with Z20LEL, Z20LEH, Z20LER engines.
Bosch ME17.9.11/12/13 Hyundai / Kia
Hyundai и Kia with Bosch ME17.9.11/12/13.
Bosch EDC15C2
Hyundai and Kia with diesel engines (CRDI).
Bosch MSE3.0
For Bosch MSE3.0 in Moto vehicles.
Bosch ME7.9.20 Nissan
For Nissan X-Trail 2.5L.
Bosch MED17.1.6
For VW Touareg 3.6 FSI with CGRA и CMTA engines, equipped with Bosch MED17.1.6.
ME17.9.61 Suzuki
Suzuki SX4 and Vitara (1.6L engines) withBosch ME17.9.61.
Supported software:
1037535822_33980-61M4_0000
1037551101_33980-61M4_0002
1037551102_33980-61M5_0002
1037556868_33980-54P3_0000
10SW009241_33981-61M1_0000
10SW009242_33981-61M3_0000
10SW039097_33981-54P8_0000
Bosch ME7.4.5 PSA
Peugeot and Citroen with naturally aspirated petrol engines with electronic throttle, Bosch ME7.4.5.
Supported software:
08Sg0_D08Sg0
11Sb0_D11Sb0
13Sd0_D13Sd0
13Tb0_D13Tb0
18Ta0_D18Ta0
19Te0_D19Te0
The module works with ChipTuningPRO 7.2020.
Bosch MG1CS201 BMW
Bosch MG1CS201 (DME83Tx, DME84Tx, DME86Tx, DME88Tx, DME8CT) installed in BMW and MINI vehicles with petrol B38xx, B46хх, B48xx, B58xx, N63xx, N74, and S63xx engines.
Supported vehicles:
BMW 2 Series F22, F23, F44, F45, F46 and G42
BMW 3 Series G20 and G21
BMW 4 Series G22 and G26
BMW 5 Series G30, G31, G32, F90, and F91
BMW 7 Series G11
BMW 8 Series G14, G15 and G16
BMW X1 Series F48 and F49
BMW X3 Series G01
BMW X5 Series F95 and G05
BMW X6 Series G06
BMW X7 Series G07
BMW Z4 Series G29
MINI F54, F55, F56 and 57
Supported software versions (any maps based on these software versions are supported):
H4C99274B
R4C9J755B
R4C9J758B
R4C9J797B
Siemens/Continental (16)
Siemens SIM2K-141 / 341
Kia and Hyundai
Siemens SIM28 Ford Focus II 1.6L
Ford Focus II with 1.4—1.6L engine without the valvetrain, Siemens SIM28.
Siemens SIM29 Ford Focus II 1.6L
Ford Focus II with 1.6L engine with variable valve timing, Siemens SIM29
Siemens SIMK43 / SIMK41 Hyundai / Kia
Hyundai (Sonata, Elantra, Tiburon, Tucson, Coupe, Seed, Sportage etc.).
Siemens EMS3132 Renault
Renault (Logan, Sandero, Symbol), Nissan (Almera) and VAZ (Largus).
Siemens MS42/MS43 BMW
BMW vehicles, MT52TU engine, Serie 3 E36, Serie 5 E39 и MS43 Serie 3 E46, Serie 5 E39, X5 E53.
Siemens Vagon VAx
Lifan
Siemens VDO MSE3.5
Tagaz Tager / Road Partner and Ssang Yong Musso, Actyon, Rexton, Kyron with petrol engines 2.3 / 2.8 / 3.2L.
Siemens SIMTEC75 Opel
Opel with Z16XER and Z18XER engines.
Siemens SIMTEC76 Chevrolet
Chevrolet Cruze, Chevrolet Orlando with Z16XER and Z18XER engine.
EMS3120 Logan/Sandero
Renault Logan, Renault Sandero.
EMS3125 Lada X-Ray, Renault Duster
For Renault Duster, Renault Kaptur, Lada X-Ray with Continental EMS3125 ECUs.
Siemens SIM2K-243
Chevrolet Spark M300 with engine 1.25L.
Siemens EMS3134 Renault
Renault Logan, Renault Sandero, Nissan Almera cars with 1.6L engines, automatic transmissions equipped with Continental / Siemens EMS3134 ECUs.
Supported software versions:
- REA820
- REA830
Features:
- Opening the files in SMS-Soft Container File format (new format for ChipTuningPRO and CombiLoader).
- Opening the file (only FullFlash) in BIN format.
- Automatic calculation of checksums when saving the file.
- Providing additional protection against accidental data modifications that may affect the safety of driving, the default file is saved in the SMS-Soft Container File format, compatible with the CombiLoader.
- Converting files to BIN format while saving.
Siemens Sirius
Chevrolet and Daewoo Matiz vehicles with Sirius D3x / D4x ECUs and Siemens SIM2K-D52.
This module allows working with Chevrolet (Lacetti, Aveo, Tacuma, Rezzo, Spark, etc.) vehicles assembled in Russia or Ukraine, as well as Daewoo (Matiz, Nexia) equipped with Sirius and Siemens SIM2K-D52 ECUs. The module works in conjunction with ChipTuningPRO 7.2014 or higher. ECU programming is carried out using the CombiLoader.
The maps contain more than 170 calibrations of the Sirius control system, including starting fluid, spark advance in all modes, dynamic corrections of spark advance, injection phase, VGIS system calibrations, pickup calibration, coefficients for calculating filling, octane selector, etc.
An error mask is supported, which makes it possible to disable the second lambda probe, EGR, etc.
The module also includes calibration maps for Chevrolet Aveo vehicles equipped with Bosch M7.9.7 + ECUs that were made in China.
Continental SIM2K-241/242/245
Hyundai and Kia with SIM2K-241/242/245.
Supported software:
KR77315135
KR77315138
KR77315142
KR77315144
KR77355119
KR77355121
KR77355122
KR77355137
KR77385115
KR77385119
KR77385121
KR77385124
KR77395114
KR77395116
KR77395119
Visteon (Ford) (2)
Ford Focus II and C-Max (Visteon ESU-411/418 7M51)
Ford Focus II and C-Max, Visteon ESU-411/418 7M51 for Ford Focus II и C-Max with 1.8 и 2.0L engines, yesr 2007-2012.
Ford Focus II and C-Max (Visteon ESU-131 5M51/8M51)
Valeo (3)
Valeo V42 Renault Duster
Renault Duster 1.6L and 2.0L.
Valeo V42 Renault Logan / Sandero / Megane / Fluence
Renault Logan / Sandero / Megane / Fluence with 1.2L и 1.6L.
Valeo V46 Citroen/Peugeot
Citroen/Peugeot with 1.2L и 1.6L engines.
Delphi (6)
Delphi MR-140 / HV-240
Chevrolet (Chevrolet Aveo 1.5, Chevrolet Lanos 1.5, Chevrolet Lacetti 1.8, Chevrolet Evanda 2.0), MR-140 или HV-240
Delphi MT60
Daewoo Gentra vehicles.
Delphi MT80
Chevrolet and Geely Emgrand.
Delphi MT20U
Chinese vehicles Great Wall Hover, Great Wall Safe, BYD F3, Chery Tiggo, etc.
Delphi MT20U2/MT22U
Chinese vehicles Great Wall Hover, Great Wall Safe, BYD F3, Chery Tiggo, etc.
Delphi MT05
For Delphi MT05 installed in moto vehicles.
ACDelco (1)
ACDelco E83
Opel and Chevrolet.
MELCO (Mitsubishi) (3)
MELCO Mitsubishi Lancer 10
For Mitsubishi Lancer 10 (besides vehicles with 1.5L engines).
MELCO Mitsubishi Lancer 10 1.5L
Mitsubishi Lancer 10 with 1.5L.
MELCO Mitsubishi Outlander XL / Mitsubishi ASX
Mitsubishi Outlander XL and Mitsubishi ASX.
GM (1)
GM Daewoo
Daewoo with ITMS-6F and IEFI-6 ECUs.
Additional Third-Party Software (91)
Nissan Qashqai/X-Trail 2.0 Hitachi SH725331N
For Nissan Qashqai 2.0 and Nissan X-Trail 2.0, with Hitachi SH725331N.
Bosch MED17.9.8 Hyundai/Kia
For Hyundai and Kia with Bosch MED17.9.8 ECUs.
Bosch MEV17.4.x Citroen/Peugeot
For Citroen and Peugeot with Bosch MEV17.4 and MEV17.4.2.
Bosch MED17.4.2 Citroen/Peugeot
For Citroen and Peugeot with Bosch MED17.4.2.
Bosch ME17.9.21 Hyundai/Kia
For Hyundai and Kia with Bosch ME17.9.21.
Bosch ME17.5.26 VAG
For VAG ECUs with Bosch ME17.5.26.
Bosch MED17.5.21 VAG
For VAG vehicles with Bosch MED17.5.21, for example, VW Golf 1.4 TSI, Skoda Octavia 1.2 TSI, Audi A3 1.4 TSI.
Bosch MED17.5.2 VAG
For VAG vehicles with Bosch MED17.5, for example VW Tiguan 2.0L TSI, VW Passat B6 1.8L, Skoda Oktavia 1.8L TSI, Audi A4 1.8L TFSI, Seat Altea, Skoda Yeti 1.8L TSI etc.
Bosch MED17.5.25 VAG
For VAG vehicles with Bosch MED17.5.25, for example VW Golf 1.2 TSI, Skoda Octavia 1.4 TFSI, Skoda Superb 1.4 TFSI, VW Jetta 1.4 TFSI.
Bosch ME17.8.8 China
For chinese vehicles with Bosch ME17.8.8, for example Chery Tiggo 2.0L, Chery Bonus (A19), Lifan X60, Lifan Solano II etc.
Bosch MED17.5 VAG
For VAG vehicles with Bosch MED17.5, for example VW Tiguan 2.0L TSI, VW Passat B6 1.8L, Skoda Oktavia 1.8L TSI, Audi A4 1.8L TFSI, Seat Altea, Skoda Yeti 1.8L TSI etc.
Magneti Marelli MM7GV
For VAG vehicles with Magneti Marelli MM7GV.
Bosch MED17.5.5 VAG
For VAG vehicles with Bosch MED17.5.5.
Magneti Marelli MM4HV
For VAG vehicles with Magneti Marelli MM4HV.
For VAG vehicles with Magneti Marelli 7GV, for example VW Polo 1.6L, VW Jetta 1.6L, Skoda Rapid 1.6L, Skoda Fabia 1.6L.
For VAG vehicles, with Magneti Marelli 4HV, for example VW Polo 1.4L, VW Jetta 1.4L, Skoda Rapid 1.4L, Skoda Fabia 1.4L.
Bosch EDC17CP44 VAG
VAG with 3.0L engine, ECU Bosch EDC17CP44.
Supported software: C1071B0AH, C1071B0AL, C1353C0Q1, C804T5HG, C804T5HH, C815Q5OB.
Bosch EDC17CP14 VAG
VAG (VW Tiguan, Touareg) with diesel egine 3.0L, Bosch EDC17CP14.
Delphi MT22.1
Geely Emgrand EC7, Geely Emgrand X7, Lifan X60, Lifan Cebrium, Lifan Solano, with Delphi MT22.1.
Supportd software versions Delphi MT22.1:
22p1Eg43p2
22p1Eg43p4
22p1Eg44p4
22p1Eg44p6
22p1Eg45p4
Delphi MT22.5
Geely Emgrand EC7, Geely Emgrand X7, Lifan X60, Lifan Cebrium, Lifan Solano, with Delphi MT22.5.
Supported Software Delphi MT22.5:
22p1Eg46p0;
22p1Eg46p4;
22p1Eg46p5;
22p1Eg46p6;
22p1Eg46p7.
Bosch MED17.1 VAG
Bosch MED17.1
Bosch MED17.8.10 China
Chinese vehicles with Bosch MED17.8.10, for example Geely Atlas 1.8T.
Bosch EDC17C54 VAG
VAG (VW Amarok, VW Crafter, VW LT) with diesel engine 2.0L, Bosch EDC17C54.
Supported software:
C1109DI6A1
C1169DM6FT
C874DP5WL
C874DP5WU
C874DP5WV
C874DQ5WQ
Continental SID807
Vehicles with diesel engines and Continental SID807:
Citroen C3 1600 HDi
Citroen C3 Picasso 1600 HDi
Citroen C4 1600 HDi
Citroen C4 Grand Picasso 1600 HDi
Citroen C5 1600 HDi
Citroen DS3 1600 HDi
Citroen DS4 1600 HDi
Peugeot 308 1600 HDi
Peugeot 408 1600 HDi
Peugeot 3008 1600 HDi
Peugeot 5008 1600 HDi
Peugeot Partner 1600 HDi
Supported software:
CAPR0C50
CAPR0F00
CAPR1910
CAPR1C00
CAPR1E30
CAPR1F00
Bosch MEVD17.4.x Citroen/Peugeot
Bosch MEVD17.4.2.
Supported software:
9T071D
9T086C
Bosch EDC17CP14 Hyundai/Kia
Hyundai (IX35, IX55, Santa-Fe, Tucson) and Kia(Carnival, Mohave, Sorento, Sportage) with diesel dongines 2.0 CRDi (D4HA, 184HP), 2.2 CRDi (D4HB, 197HP) and 3.0 V6 CRDi (D6EB, 247HP).
Supported software versions:
P_1087_LC0A_1037517293
P_1087_LD0B_1037522638
P_1087_LE1A_1037526971
P_1087_LE1A_1037527113
P_1087_LE1A_1037528086
P_1087_LF0A_1037528279
P_1087_LF0A_1037528284
P_1087_LF1A_1037534887
P_1087_LF1A_1037535214
P_1087_LF1A_1037544506
P_609_P73A_1037502423
P_609_P81A_1037503822
P_609_P81A_1037503823
P_609_P83A_1037504635
P_609_P83A_1037504642
P_609_P83A_1037505301
P_609_P83A_1037506243
P_609_P83A_1037508139
P_609_P83A_1037508148
P_609_P83A_1037508176
P_609_P83A_1037508178
P_609_P83A_1037508188
P_609_P83A_1037508190
P_609_P83A_1037509514
P_609_P83A_1037510006
P_609_P83A_1037510013
P_609_P83A_1037510061
P_609_P83A_1037510096
P_609_P83A_1037511853
P_609_P83A_1037514109
P_609_P83A_1037516092
P_609_P83A_1037516121
P_609_P83A_1037516129
P_609_P83A_1037517270
P_609_P83A_1037517272
P_609_P83A_1037519201
P_609_P83A_1037519244
P_609_P83A_1037519246
P_609_P83A_1037520507
P_609_P83A_1037522532
P_609_P83A_1037522539
P_609_P91A_1037517239
Bosch EDC17C08 Hyundai/Kia
Hyundai (I30, I40, IX35, Santa-Fe) and Kia (Cee’d, Optima, Soul, Sportage, Venga) with diesel engines 1.6CRDi, 2.0CRDi.
Supported software:
P_610_V71C_1037398530
P_610_V80A_1037501556
P_610_V80B_1037502476
P_610_V80B_1037502477
P_610_V82B_1037398497
P_610_VB0A_1037510091
P_610_VB0A_1037512594
P_610_VB0A_1037515190
P_610_VD1A_1037520535
P_610_VD1A_1037526037
ACDelco E78
Opel and Chevrolet with ACDelco E78. For example, Opel Astra J A14NET, Opel Zafira C A14NET, Opel Mocca A14NET, Chevrolet Cruze A14NET, Chevrolet Tracker A18XER, Chevrolet Malibu A24XE.
Working with files that do not contain the control program code has some peculiarities: the type of ECU and the calibration map must be selected manually, and when saving the file, it is necessary to load a full flash. These limitations are related to the impossibility of calculating all checksums in the absence of a control program in the file.
Supporteed software:
12640750
12644082
12646746
12647732
12650973
12653708
12654130
12655492
12655493
12656286
Bosch ME17.9.2 Hyundai/Kia
Hyundai Grandeur 3.0L, Bosch ME17.9.2.
Bosch EDC17C46
VAG (Audi A3/A4/A5/A6/Q3/Q5/TT, Skoda Superb, VW Golf, VW Passat, VW Tiguan, etc.) with diesel engine 2.0L, Bosch EDC17C46.
Supported software:
C643X5LA_1037558522
C643DX5WK_1037561599
C643X5WF_1037519355
C643DX5X0_1037542201
Bosch EDC17C53 Hyundai/Kia
Hyundai I40, Hyundai IX35, KIA Soul with diesel engines 1.6CRDi and 1.7CRDi.
Supported software:
P1100_T40B
P1100_T61A
Bosch EDC17C57 Hyundai/Kia
Hyundai Santa-Fe, Hyundai Tucson, KIA Carnival, KIA Sorento Prime, KIA Sportage with diesel engines 2.0CRDi and 2.2CRDi.
Supported software:
P1200_R91A
P1200_R92B
P1200_RA1A
P1200_RC0A
P1200_RD0A
P1200_RE1A
P1200_RF0A
P1200_RF1A
P1200_RG0A
P1200_RJ0A
P1200_RJ1A
P1587_U71A
Continental SID208
Ford, Peugeot and Citroen, with Continental SID208:
Ford Ranger 3.2 TDCI
Ford Transit 2.2 TDCI
Ford Transit 2.4 TDCI
Peugeot Boxer 2.2 HDI
Citroen Jumper 2.2HDI
Supported software:
CAFRP950
CAFRQ950
CAFRQA50
CAFRQA70
CAFRQB20
CAFRQC00
CAFRQC20
CAFRQC40
CAFRQC60
CAFRQC80
The module does the cheecksum calculation for:
CAFRR750
CAFRR780
CAFRR810
CAFRRE40
Delphi MT-38
Hyundai/Kia with engines V6 2.7/3.3/3.8L and Delphi MT38 ECUs.
Supported software:
BH9E38
BL7E33
BL7N33
CM7E27
CM8T27
NF5N33
VQ6E27
DSG DQ200
VAG with TCU DSG6 DQ200 Rev. DQ200 (0AM), DQ200MQB (0CW), DQ200G2 (0CW).
Supported software DQ200:
0CW300040H_0006
0CW300040Q_0002
0CW300041B_0006
C18S
C27SR1
C30S
C36SR1
C51S
C52MR1
C65S
C90S
DSG DQ250
VAG with TCU DSG6 DQ250 Rev. C/E/F(02E), MQB(0D9).
Supported software DQ250:
E19
E19R1
F26S
F27SК1
F35S
F40S
F43SR1
F49S
F52M
NF5H
OF8J
DQ500
VAG (7-speed transmission DSG in VAG vehicles with transverse engine.
DL501
VAG with longitudinal engines.
Delphi MT86
Hyundai Genesis/Equus, Kia Cadenza/Quoris/Sorento Prime with engines 3.3/3.8/5.0L, with Delphi MT86.
Supported software:
KHCE38*M2**BJ8AW
NCCE33*M2**BJ7CM
VICE38*M2**BJ4AE
VIDM38GM2**CL1DW
Bosch EDC17C64 VAG
Audi A3/A4/A6/Q5, VW Golf7/Sharan/Tiguan, Skoda Octavia, etc. with diesel engines 1.6L and 2.0L TDI.
Supported software EDC17C64:
C866DA762_04L906021M_4792
C866DA762_04L906021M_4944
C866DA763_04L906021M_5517
C866DA76Q_04L906021AE_6170
C866DA76S_04L906021EB_7183
C866DA76S_04L906021EB_9327
C866DA76S_04L906021M_6545
C866DA785_04L906021AE_8134
C866DA785_04L906021DS_8125
C866DA785_04L906021EP_8359
C866DA785_04L906021FD_8122
C866DA785_04L906021FD_9231
C866DA785_04L906021M_7635
C866DA785_04L906021M_9210
C866DE7PO_04L906021CK_8259
C866DE7PO_04L906021CK_8350
C866DE7PO_04L906021CK_8507
C866DE7PT_04L906021FM_2070
C866DG8A4_04L906016CN_1843
C866DG8A4_04L906016DS_1139
C866DG8A4_04L906016DS_1844
C866DG8A8_04L906016CJ_3352
C866DG8B5_04L906016CF_1644
C866DG8B5_04L906016CF_2807
C866DG8P0_04L906016GJ_1666
C866DG8PB_04L906016GJ_4653
The module does checksum corrections when saving the modified file.
Bosch EDC17C74 VAG
Audi A3/Q2, VW Golf/Passat/Tiguan, Skoda Superb/Kodiaq, etc. with diesel engines 2.0L TDI.
Supported software Bosch EDC17C74:
C1274DL8K4_04L906026AG_1953
C1274DL8K4_04L906026AG_1969
C1274DN8A9_04L906026DS_1136
C1274DN8AC_04L906026DS_1934
C1274DT8K1_04L906026BF_1570
C1274DT8K1_04L906026BS_1541
C1274DT8K1_04L906026DA_2806
C1274DT8K1_04L906026GK_1369
C1274DT8K2_04L906026ES_1989
C1274DT8K2_04L906026GK_1992
C1274DT8KE_04L906026DE_3215
C1274DT8KG_04L906026DE_5418
The module does checksumm corrections when saving the modified file.
ACDelco E39/E39A
Opel, Chevrolet, Cadillac with ACDelco E39 and E39A. For example, Opel Insignia 2.0L A20NHH/A20NHT (LHU), Opel Antara 2011+ 3.0L (LF1), Opel Antara 2012+ 3.0L (LF1, LFW), Opel Astra-J A16XHT/1.6L SIDI, Opel Astra-J OPC A20NHH, Chevrolet Captiva (C140) 2011+ 3.0L (LF1, LFW), Cadillac SRX 2010+ 3.0L (LF1).
Please note: Working with files that do not contain the control program code Is not supported. These limitations are related to the impossibility of calculating all checksums in the absence of a control program in the file.
Supported software:
ACDelco5_E39A_12651384
ACDelco5_E39A_12655860
ACDelco5_E39A_12658499
ACDelco5_E39_12646099
ACDelco5_E39_12648907
ACDelco5_E39_12657777
The module does checksum corrections when saving the modified file.
Toyota Denso Diesel 3.0D
Toyota Denso Diesel 3.0D (1KDFTV) with 76F0040GD, 76F0039AGD, 76F0070, 76F0085, diesel engines 3.0L.
Supported software:
89663-0K121
89663-0K223
89663-0K242
89663-0K832
89663-0K873
89663-0KK90
89663-0KK91
89663-0KK93
89663-0KR30
89663-0KR31
89663-0KR32
89663-0KR50
89663-0KR51
89663-0KR52
89663-60F22
89663-60G00
89663-60G01
89663-60G02
89663-60G03
89663-60G12
89663-60G13
89663-60G22
89663-60G32
89663-60G42
89663-60G52
89663-60G82
89663-60G90
89663-60G92
89663-60M90
89663-60R00
89663-60R01
89663-60Z31
89663-535F0
89663-535F1
89663-25173
89663-25176
89663-25186
89663-26596
89663-26601
89663-26605
89663-26606
89663-26626
89663-26631
89663-60500
89663-60502
89663-60881
89663-60883
89663-60884
89663-60892
Toyota Denso Diesel 4.5D
Toyota Denso Diesel 4.5D (1VD-FTV) with 76F0070, diesel engines 4.5L.
Supported software:
89663-60A31
89663-60A32
89663-60A33
89663-60A34
89663-60A60
89663-60A61
89663-60A62
89663-60A63
89663-60A70
89663-60A71
89663-60A72
89663-60A73
89663-60A80
89663-60A82
89663-60A83
89663-60B00
89663-60B01
89663-60B02
89663-60B03
89663-60B04
89663-60B30
89663-60B32
89663-60J01
89663-60J10
89663-60J20
89663-60J21
89663-60J30
89663-60J40
89663-60J50
89663-60J80
89663-60K40
89663-60K41
89663-60K60
89663-60K61
89663-60K62
89663-60K90
89663-60K91
89663-60L10
89663-60L11
89663-60L20
89663-60L21
89663-60L50
89663-60L60
89663-60N40
89663-60N41
89663-60N70
89663-60N71
89663-60N72
89663-60N73
89663-60N74
89663-60P10
89663-60P90
89663-60U80
89663-60U81
89663-60U82
89663-60U83
89663-60U90
89663-60U91
89663-60U92
89663-60U93
89663-60U94
89663-60V20
89663-60V21
89663-60V60
89663-60640
89663-60641
89663-60642
89663-60643
Toyota Denso Diesel 2.5D
Toyota with diesel engines 2.5L.
Supported software Toyota Denso Diesel 2.5D:
89663-0K351
89663-0KA12
89663-0KN13
89663-0KP91
89663-0KR70
89663-25073
89663-25094
89663-26401
89663-26410
89663-26411
89663-26421
89663-F0020
89663-F0021
89663-F0031
89663-F0051
89663-0KM60
89663-0KM61
89663-0KM63
89663-0KM64
89663-0KM91
89663-0KM93
89663-0KM95
89663-0KM96
Toyota Denso Diesel 2.8D
The modules supports all software including GEN3. D76F0196F1 (1536Kb), D76F0219F1 (2048Kb), R7F701202 (4096Kb). Diesel engines 2.8L.
Supported software Toyota Denso Diesel 2.8D:
89663-60X13
89663-60X15
89663-60X16
89663-60X18
89663-60X23
89663-60X24
89663-60X26
89663-60X27
89663-60X28
89663-60X29
89663-60X35
89663-60X44
89663-60X46
89663-F0F33
89663-F0F41
89663-F0S93
89663-F0593
89663-F0595
89663-F0597
89663-F0598
89663-F0599
89663-F0681
89663-F0682
89663-F0683
89663-F0684
89663-F0685
89663-F0686
89663-F0687
89663-F0688
89663-F0689
89663-60Z35
89663-60Z42
89663-60Z43
89663-F0R73
89663-F0121
89663-F0507
89663-F0566
89663-F0613
89663-F0733
89663-F0742
89663-F0801
89663-FA100
89663-FAD60
89663-6A770
89663-6A830
89663-26F40
89663-26J20
89663-26M10
89663-26U10
89663-29C48
Bosch MEVD17.2.9 BMW
Bosch MEVD17.2.9
Supported software:
9VT9D60B
9VT9E80B
9VT9G01B
9VT9G20B
9VT9G40B
The module does checksum corrections when saving the modified file.
SIMOS-12.x
VAG with petrol engines 1.8TFSI и 2.0TFSI 3rd generation: Audi A4 1.8TFSI, Audi A5 1.8TFSI, Audi A5 2.0TFSI, Audi A6 1.8TFSI, Audi Q5 2.0TFSI, Skoda Octavia 1.8TFSI, Skoda SuperB
Supported software:
CASC18F5
CASC18F6
CASC1C58
CASC1C81
CASC1CB6
CASC1CC5
CASC2E56
Over 850 basic calibrations are available for modification.
The module calculates checksums when saving the firmware.
Bosch MEVD17.2.4
BMW Bosch MEVD17.2.4.
Supported software Bosch MEVD17.2.4:
9ZQ9BD0B
9ZQ9BE0B
9ZS9BC5B
9ZS98R0B
9ZS9BE5B
9ZS9BG0B
9ZS9BF0B
9ZT9BG0B
Toyota Denso Diesel 2.2D
Toyota/Lexus (Verso, Avensis, RAV4, Auris, IS220) with diesel engines 2.2L 2AD-FHV / 2AD-FTV, ECU Denso, with 76F0039 496kB, 6F0038 736kB, 76F0085 992kB.
Supported software:
89663-0F107
89663-0F370
89663-05A70
89663-05B40
89663–05523
89663–05526
89663–05534
89663-05B50
89663–42474
89663-42F60
89663-0F097
89663-0F098
89663-0F360
89663-0F112
89663-0F350
89663–02431
89663–02434
89663–02435
89663-02U80
89663–02435
89663–05511
89663–05513
89663–05514
89663–05516
89663–05517
89663–05518
89663–05519
89663-05B30
89663–42243
89663–42244
89663–42245
89663–42246
89663-42E70
89663–42782
89663–53354
89663–53356
89663–53396
89663–53590
89663-53A31
89663-0F126
89663-0F136
89663-02E30
89663-02E31
89663-02E34
89663-02E35
89663-42A91
89663-42A94
89663-42B01
89663-42B06
89663-42B11
89663-42B16
89663-42B21
89663-42B31
89663-42F90
89663-42G00
89663-42G10
89663-42M90
89663-42M91
89663–05685
89663–05765
89663–05760
89663–05764
89663–05775
89663–05784
89663–05790
89663–05794
89663–05795
Toyota Denso Diesel 2.4D
Toyota (Hilux) with diesel engine 2.4L 2GD-FTV, Denso ECU, processors D76F0196F1 1.5MB, D76F0219F1 2MB.
Supported software:
89663-F0T03
89663-F0T11
89663-F0T13
89663-F0307
89663-F0284
89663-F0305
89663-F0308
89663-F0309
89663-FAM10
89663-F0E72
89663-F0E75
89663-F0E77
89663-F0E78
89663-F0M23
89663-F0334
89663-F0337
89663-F0364
89663-F0366
89663-F0435
89663-F0437
89663-F0439
89663-F0445
89663-F0447
89663-FAL20
ACDelco E80
For Chevrolet with ACDelco E80
Supported software:
12673258
12673402
12676842
12699626
12709531
Suzuki Denso
Suzuki Jimny, Liana, Grand Vitara, Swift, SX4 with 1.3L, 1.5L, 1.6L, 2.0L, 2.4L engines, Denso ECUs with SH7055 and SH7058.
Supported software:
Jimny_4E21xxx
Jimny_4E22xxx
Liana_5E06xxx
SGV_1.6_5E34xxx
SGV_1.6_6E43xxx
SGV_1.6_8A08xxx
SGV_2.0_2E02xxx
SGV_2.0_5E39xxx
SGV_2.0_5E41xxx
SGV_2.0_5J36xxx
SGV_2.0_6E50xxx
SGV_2.0_6J50xxx
SGV_2.0_8E73xxx
SGV_2.4_2A02xxx
SGV_2.4_2J02xxx
SGV_2.4_8A71xxx
Swift_4E10xxx
Swift_4J08xxx
Swift_5C08xxx
Swift_5E00xxx
Swift_5I00xxx
Swift_6J07xxx
Swift_7E08xxx
Swift_7F06xxx
Swift_7J06xxx
SX4_1.6_5E08xxx
SX4_1.6_6E02xxx
SX4_1.6_6E05xxx
SX4_1.6_6E10xxx
SX4_1.6_6E13xxx
SX4_1.6_6U19xxx
Bosch MEVD17.2.5
Bosch MEVD17.2.5
Supported software:
9ZX9890B
9ZX99C0B
9ZX99R0B
9ZX99T0B
Toyota Denso Petrol 5.7i
Toyota Sequoia, Tundra, Lexus LX570 with 3UR-FE and 3UR-FBE engines 5.7L, Denso ECU
Supported software:
89663-0C430
89663-0C572
89663-0C582
89663-0C584
89663-0C592
89663-0C600
89663-0C601
89663-0C602
89663-0C604
89663-0C710
89663-0C711
89663-0C821
89663-0C831
89663-0C841
89663-0C850
89663-0C851
89663-0C852
89663-0C891
89663-0CA01
89663-0CA02
89663-0CA11
89663-0CA21
89663-0CA31
89663-0CA32
89663-0CA33
89663-0CA41
89663-0CA42
89663-0CA43
89663-0CA51
89663-0CA52
89663-0CA53
89663-0CA61
89663-0CA63
89663-0CA71
89663-0CA81
89663-0CA91
89663-0CB01
89663-0CD01
89663-0CD11
89663-0CD13
89663-0CD21
89663-0CD22
89663-0CD31
89663-0CD33
89663-0CD61
89663-0CD70
89663-0CD72
89663-0CE20
89663-0CG32
89663-0CG33
89663-0CJ43
89663-0CJ54
89663-0CJ64
89663-0CJ96
89663-0CK02
89663-0CK04
89663-0CK06
89663-0CK14
89663-0CK24
89663-0CK56
89663-0CK66
89663-0CL03
89663-0CL13
89663-0CL34
89663-0CL44
89663-0CM04
89663-0CM41
89663-60A50
89663-60A51
89663-60A52
89663-60C21
89663-60C22
89663-60C26
89663-60C30
89663-60C31
89663-60C32
89663-60C33
89663-60C35
89663-60C36
89663-60C41
89663-60C44
89663-60C51
89663-60D80
89663-60M50
89663-YWF05
89663-YWF06
89663-YWF07
89663-YWF08
89663-YWF13
89663-YWF14
89663-YWF15
89663-YWF16
89663-YWF17
89663-YWF18
89663-YWF19
89663-YWF20
89663-YWF21
89663-YWF22
89663-YWF23
89663-YWF24
89663-YWF25
89663-YWF26
89663-YWF27
89663-YWF28
89663-YWF30
89663-YWF31
89663-YWF32
89663-YWF33
89663-YWF34
89663-YWF35
89663-YWF36
89663-YWF84
89663-YWF94
89663-YWF95
89663-YWF99
89663-YWL01
89663-YWL02
89663-YWL03
89663-YWL04
89663-YWL09
89663-YWL10
89663-YWL11
89663-YWL12
89663-YWL13
89663-YWL14
89663-YWL15
89663-YWL16
89663-YWL17
89663-YWL18
89663-YWL19
89663-YWL20
89663-YWL21
89663-YWL22
89663-YWL23
89663-YWL24
89663-YWL49
89663-YWL50
89663-YWL51
89663-YWL52
Delphi DCM3.7 HK
Hyundai Starex, Porter, HD78, i30, KIA Bongo etc. with diesel engines 2.5CRDI, Delphi DCM 3.7 ECU
Supported software:
U7M87
U7M88
U7M90
U7M92
U7M96
U7M97
U7M99
U7M99_TQPE04
Denso Nissan 2.5TDI SH7059
Nissan Navara, Pathfinder, Cabstar, Murano, NV300, Caravan etc. with 2.5TDI diesel engines, Denso ECUs with SH7059
Supported software:
E51AU4E_T29B5X05C
E51BU4E_T29C5X06C
E51ZU4E_T2G1LC10D
E525U4E_T2I13XN2A
E526U4E_T29E5X06C
E53DU4E_T2MB3XS2A
E61KU4E_T2B25X07C
E61XU4E_T2B35X08C
E627U4E_T2B45X09C
E62MU4E_T2B55X32B
Delphi DCM3.7 GM
Chevrolet Captiva, Cruze, Orlando, Daewoo Winstorm, Opel Antara etc. with 2.0TDI and 2.2TDI diesel engines, Delphi DCM 3.7 ECU
Supported software:
UGD83N
UGD83Q
UGD90L
UGD90P
UGD90Q
UGD90U
UGD90W
UGD91B
UGE82G
UGE82J
UGE82L
Delphi DCM3.7 China
GreatWall Hover etc. with diesel engine 2.0TDI, Delphi DCM 3.7 ECU
Supported software:
UQA08A01
UQA08A03
UQA08B01
UQA08B03
UQA09B01
UQC40
UQC62
UQG14D01
UQR44D01
Delphi DCM3.7 Ssang Yong
Ssang Yong Actyon, Korando, Rexton, Rodius, Stavic etc. with diesel engines 2.0TDI and 2.2TDI, ECU Delphi DCM 3.7
Supported software:
UCA33D01
UCA34E148
UCA34E150
UCA34E154
UCA34H175
UCA34H176
UCA34H184
UCA34H185
UCA34H186
UCA34H187
UCA34H188
UCA34H190
UCA34I188
UCA34Z160
UCA40A192
UCA40A193
UCA40A194
UCA40B197
UCA40B198
UCA40B199
UCA40B200
UCA41A200
UCA41A201
UCA41C207
UCD40F210
UCE38B73
UCE39C82
UCE40Bxx
UCE50Axx
UCF51Bxx
UCF52Axx
Denso Diesel HK SH72543/SH72546
Hyundai and Kia vehicles with EURO-6 diesel enagines, Denso ECUs with SH72543/SH72546
Supported software:
JD40A2__A0M0e40
JD4BA2__A0M4e40
JD4PA2__A0M7e40
JD57A2__A0R3e40
JD5AA2__A0Q9e40
JD5HA2__A0R7e40
JD60A2__A0V0e40
JD63A2__A0V3e40
JD68A2__A0W3e40
JD69A2__A0W4e40
Bosch/Kefico CPEGD2/CPGDSH2/CPGPSH2
Vehicles of year 2018 and later with petrol engines GDI, with Kefico CPEGD2.20.1 / CPEGD2.20.2 / CPEGD2.20.3 / CPGDSH2.26.1 / CPGDSH2.26.3 / CPGPSH2.14.1 ECUs
Vehicle list:
Hyundai Elantra, Avante (AD) 1.6 GDI 132HP, 1.6Turbo 201HP
Hyundai HB20 1.0 GDI 120HP
Hyundai Kona 1.0 GDI 120HP
Hyundai Tucson 1.6Turbo 201HP
Hyundai I20 1.0 GDI 120HP
Hyundai I30 1.4Turbo 140HP, 1.6 GDI 132HP
Hyundai I40 1.6 GDI 132HP
Hyundai Veloster 1.6Turbo 201HP
KIA RIO 1.0 GDI 120HP, 1.6 GDI 132HP
KIA Stonic 1.0 GDI 120HP
KIA Soul 1.4Turbo 140HP, 1.6 GDI 132HP
KIA Cee’d 1.4Turbo 140HP, 1.6Turbo 201HP
KIA Seltos 1.6Turbo 201HP
KIA Sportage 1.6 GDI 132HP
KIA Cerato 1.6 GDI 132HP, 1.6Turbo 201HP
KIA Picanto 1.0 GDI 80HP, 1.2 GDI 82HP
Supported ECU options:
Kefico CPEGD2.20.1: HEPG2B03
Kefico CPEGD2.20.2: HEPG761C
Kefico CPEGD2.20.3: HEPG516D; HEPG5DD9; HEPG6D47
Kefico CPGDSH2.26.1: HEPG2FA7; HEPG28C0
Kefico CPGDSH2.26.3: HEPG5576; HEPG5D85
Kefico CPGPSH2.14.1: HEPG31BC; HEPG39F2; HEPG4223; HEPG4690; HEPG7BC3; HEPG7BD2
Bosch ME17.8.5
Chip tuning of BRP Vehicles
ATV/UTV Can-Am 4-stroke 600/800/900/1000/1300cc engines (atmospheric and turbocharged)
Commander
Maverik
Maverick X3
Maverick X DS
Spider
Sea-Doo Jet Skis with 900/1500/1630 cc 4-stroke engines (atmospheric and mechanically supercharged)
GTI
GTX
RTX
RXT-X
Supported software versions:
7A1124OAxRDS1
7A1128RA8FOSx
7A1150QC7FOS3
7A1150QE2FOS3
7A1163NC7FOS1
7A1163PC7FOS1
7A1163QC6FOS1
7B1164PC1VLS2
7B1164PC1VLS3
7E2163OG9VLS4
7E2175NG9VQS4
7E50118W2RRS0
7E5122RB1RHS1
7E5169OF4VVS2
7E5173NH3VXS3
7F1126UD1FBS2
DCM 6.2 PSA
Module is designed for chip tuning of Peugeot, Citroen, Opel, Toyota vehicles with 2.0L diesel engines (PSA EMP2 platform). Delphi DCM6.2 / 6.2A / 6.2C.
The module contains more than 400 calibrations: speed limiter, torque and power limiters (more than 60 limiters in total including limiters by EGT and transmission protection), torque model (injection quantity calculation, torque request by driver), idling, injection and turbocharging control, glow plug control, calibration of EGT sensors. This module allows you to disable ADBlue, EOLYS injection, particulate filter and EGR valve.
Supported versions of the files:
9693143580
9693143480
9693143380
9692947780
9694036780
9694036280
9692542580
9692542680
9692492080
9692491080
9693333380
9693488980
9693332280
9692312080
9692365980
9692775180
More than 400 calibrations are available for change.
The module calculates checksums when saving the file.
Visteon EEC-V
Ford Focus 2.0, Maverick 3.0, Escape 2.3, Escape 3.0, Mazda Tribute 2.3, equipped with Visteon EEC-V ECU
Supported software versions:
FDDP1A4
MBDHAA2
MBDHBAZ
MBDK055
MBDK0CZ
MBDM153
MBDM1A3
MBDM1E3
QIAJBA2
QIAN0A2
QIEF3A2
Bosch EDC17C50 BMW
The Bosch EDC17C50 (DDE701) BMW module is designed for chip tuning BMW and MINI cars with N47xx, B47xx and B37xx diesel engines. Fitted to:
1st series F20 and F21
2 serie F22, F23, F45 and F46
3. E90, E91, F30, F31, and F34 series
4th series F32, F33 and F36
5 series F07, F10 and F11
X1 series E84 and F48
X2 series F39
X3 series F25
X4 series F26
X5 series F15
MINI F54
MINI F55
MINI F56
MINI F57
MINI F60
MINI R60
MINI R61
Supported software versions (any calibrations based on these software versions are supported):
O_7HEL3
O_7HHL0
O_7HKL0
O_7HLL0
More than 1,300 calibrations available for change.
The module calculates checksums when saving the file.
Bosch EDC17CP45/CP49 BMW
The Bosch EDC17C45/49 (DDE731 P_730), (DDE731a P_731), (DDE731a P_731), (DDE751a P_1319) module allows to work with BMW vehicles with N47xx, N57xx, and B47хх diesel engines. This ECU can be found in:
1 series F20 and F21
2 series F22 and F23
3 series F30, F31, and F34
4 series F32, F33 and F36
5 series F07, F10 and F11
6 series F06, F12, F13 and F14
7 series F01 and F02
X1 series E84
X2 series F39
X3 series F25
X4 series F26
X5 series E70, F15 and F16
X6 series E71 and F16
The following software versions (all calibrations based on these versions) are supported:
O_7ALA (DDE731 P_730)
O_7ALG (DDE731 P_730)
O_7ALJ (DDE731 P_730)
O_7ETA (DDE731a P_731)
O_7ETL0 (DDE731a P_731)
O_7ETN0 (DDE751a P_731)
O_7GLL0 (DDE751a P_1319)
X_7AK5 (DDE731 P_730)
More than 1300 maps available for editing. Checksum recalculation when saving the file.
Bosch MD1CS001 BMW
The Bosch MD1CS001 (DDE802L, DDE803S) BMW module is for chip tuning of BMW vehicles with B47D20хх diesel engines installed in:
3 series G20
5 series G30 and G31
X3 series G01
X4 series G02
The following software versions (all calibrations based on these versions) are supported:
O_8LWD0
O_8LWH0
O_8LWM0
O_8LWN0
O_8PGM0
More than 1200 maps available for editing. Checksum recalculation when saving the file.
SIMOS-18.x
The module is for chip tuning of VAG vehicles with 3rd generation petrol 1.8TFSI and 2.0TFSI engines: Audi A4 1.8TFSI, Audi A5 1.8TFSI, Audi A5 2.0TFSI, Audi A6 1.8TFSI, Audi Q5 2.0TFSI, Skoda Octavia 1.8TFSI, Skoda SuperB
Supported software versions:
CASC18F5
CASC18F6
CASC1C58
CASC1C81
CASC1CB6
CASC1CC5
CASC2E56
More than 850 maps available for editing. Checksum recalculation when saving the file.
Bosch EDC17C76 BMW
Bosch EDC17C76 (DDE742) module was developerd for chip tuning of BMW cars with N57xx diesel engines. It is installed on:
X5 series F15
X6 series F16
Supported software versions (any calibrations based on these software versions are supported):
O_7UCA2
O_7UE10
More than 1200 calibrations are available for modification.
The module calculates checksums when saving the file.
Bosch MD1CP032 BMW
Bosch MD1CP032 (DDE853) BMW module is designed for chip tuning of BMW vehicles with B47xx and B57xx diesel engines. It is installed on:
X5 series G05
X6 series G06
X7 series G07
Supported software versions (any calibrations based on these software versions are supported):
O_8OJ91
O_8OMS0
O_8OMU0
More than 950 calibrations are available for modification.
The module calculates checksums when saving the firmware.
Bosch EDC17C06 BMW
Designed for chip tuning of BMW vehicles with N47xx diesel engines. It is installed on:
1-series E81, E82, E87 and E88
3-series E90, E91
X1 series E84
X3 series E83
Supported software versions (any calibrations based on these software versions are supported):
73MD (P_557)
73MJ (P_557)
73RW (P_557)
73S4 (P_557)
73S7 (P_557)
More than 650 calibrations are available for modification.
The module calculates checksums when the file is saved.
Bosch MG1UA008
The module is designed for chip tuning of Chinese-made cars (Geely Emgrand 1.5L, Haval Jolion 1.5T, JAC J7) equipped with Bosch MG1UA008 ECU.
Please note: it is a third party module!
Supported software versions:
F01R0AD1WS.
F01R0AD3RT
F01R0AD5J7
F01R0AD6U8
F01R0AD6V2
About 200 of the most important calibrations are available for modification.
The module calculates checksums when the firmware is saved.
ACDelco E37
The module allows chip tuning of Opel, Chevrolet, Cadillac cars equipped with ACDelco E37 ECU.
Examples of cars equipped with this type of ECU: Chevrolet Captiva (C140) 2011+, Opel Antara 2011+.
Please note: Module of a third-party developer! Technical support from the author of the module (KHN09).
Supported software versions:
12634915
12647468
12653292
12657728
About 150 of the most important system calibrations are available for modification.
The module calculates checksums when the file is saved.
Bosch MG1US008 China
The module is designed for chip tuning of Chinese-made cars (Geely Emgrand 1.5L, Haval Jolion 1.5T, JAC J7) equipped with Bosch MG1US008 ECU.
Please note: Module of third-party developer! Technical support from the author of the module (KHN09).
Supported software versions:
F01R00D0X7
F01R00D1F4
F01R0AD5NX
F01R0AD7PP
F01R0ADS7P
About 200 of the most important calibrations are available for modification.
The module calculates the checksums when the file is saved.
Bosch MEVD17.2.8 BMW
Supported software versions:
8AC9795B
8BC959CB
8BC98BGB
More than 300 calibrations are available for modification.
The module calculates checksums when the firmware is saved.
Bosch EDC17CP09 BMW
The Bosch EDC17CP09 (P_573 DDE73), (P_574 DDE73a), (P_613 DDE73) module is designed for chip tuning of BMW cars with N57xx diesel engines. Installed on:
3 Series E90, E91, E92 and E93
5 Series F07
7 Series F01 and F02
X5 series E70
X6 series E71
Note: Third party module! Supported software versions (any calibrations based on these software versions are supported):
O_76RC (P_573 DDE73)
O_77TN (P_613 DDE73)
O_78RV (P_574 DDE73a)
O_78T3 (P_574 DDE73a)
O_78T7 (P_574 DDE73a)
O_78T8 (P_574 DDE73a)
Bosch MG1US008
The module is designed for chip tuning of modern Chevrolet cars equipped with a Bosch MG1US008 ECU, for example:
Chevrolet Tracker 1.0T
Chevrolet Monza 1.3T
Chevrolet Monza 1.5L
Supported software versions:
F01R0AD3S4
F01R0AD6BB
F01R0AD6CA
Bosch MD1CS089 CHINA
The Bosch MD1CS089 CHINA module is designed for chip tuning of GAZ (Gazelle Next), ISUZU, SAIC, FOTON, etc. cars with diesel engines.
Note:
External developer module! Technical support from the author of the module (M. Glazykin).
Supported software versions (any states based on these software are supported):
A123456789
S13045TEST
STC0000304
There are over 500 calibrations available for modification.
The module calculates checksums when saving the file.
ZF AL551-8Q VAG
The ZF AL551-8Q VAG module is designed for chip tuning of the ZF AL551-8Q automatic transmission of VAG vehicles. This 8-speed automatic transmission is installed on:
Audi A4 B8 (8K)
Audi A5 1 (8T)
Audi A6 C7 (4G)
Audi A6 C7 Allroad (4GH)
Audi A7 C7 (4G)
Audi A8 D4 (4H)
Audi Q5 1 (8R)
Supported software:
D001003EV_TCMAL551112
D002020EV_TCMAL551211
D002020EV_TCMALX51011
Bosch MG1CS003 BMW
The Bosch MG1CS003 (DME840, DME840H, DME841, DME841H, DME860, DME861, DME880, DME8C0) BMW module is designed for chip tuning of BMW vehicles with N63xx, N74xx, B46xx, B48xx and B58xx gasoline engines. Installed on:
1st series F20
2nd series F22 and F23
3 Series F30, F31, F34, F35, G20 and G21
4 Series F32, F33 and F36
5 Series G30, G31 and G38
6 Series G32
7 Series G11 and G12
X3 series G01 and G08
X4 series G02
X7 series G07
Z4 series G29
Supported software versions (any calibrations based on these software versions are supported):
C0C9J6E5B
R0C9H453B
R0C9I553B
R0C9J754B
R0C9J772B
R0C9J792B
R0C9J8B2B
R0C9J8D2B
R0C9J8D3B
R0C9J8I2B
R0C9J962B
R0C9J963B
R1C9A175B
R1C9F358B
R1C9F359B
R1C9I553B
R1C9J754B
R1C9J772B
R1C9J8B2B
R1C9J8B3B
R1C9J8I2B
R1C9J9E5B
R1C9J9E7B
R1C9JE15B
V0C9J6J2B
ACDelco E38
The module allows chip tuning of Chevrolet and Cadillac cars with 5.3L and 6.2L engines equipped with ACDelco E38 ECU.
Examples of cars equipped with this type of ECU: Cadillac Escalade, Chevrolet Tahoe, Chevrolet Express, Chevrolet Camaro.
Please note:
Third-party module! Technical support from the module developer (KHN09).
Working with firmware that does not contain the control program code is not supported. These limitations are due to the impossibility of calculating all checksums in the absence of a control program in the firmware.
Supported software versions:
12614088
12617631
12622139
12628983
12630501
12636005
12636008
12639835
12647991
12653249
12653674
12656198
About 140 of the most important system calibrations are available for modification.
The module calculates checksums when saving the firmware.
Toyota Denso Petrol 5.0i
Toyota Denso Petrol 5.0i module for chip tuning of Toyota Century G60 (2017 — present), Lexus IS-F XE20 (2007 — 2014), Lexus RC-F XC10 (2014 — present), Lexus GS-F L10 (2015 — present), Lexus LC 500 URZ100 (2016 — present), Lexus LS 600h XF40 (2007 — 2017) and other models with 2UR-GSE and 2UR-FSE engines with a volume of 5.0 liters.
Please note: Third-party modules! Technical support from the authors of the module (V. Kulikov and A. Teslya).
Supported software versions:
53A30-01051
89663-11081
89663-11091
89663-11171
89663-24284
89663-50460
89663-50461
89663-50470
89663-50472
89663-50480
89663-50482
89663-50521
89663-50522
89663-53A01
89663-53B61
89663-53B70
More than 350 basic calibrations are available for modification.
Bosch MD1CP002 BMW
Module Bosch MD1CP002 (DDE832) BMW allows chip-tuning BMW cars with diesel engines B57D30хх and B47D20хх. The engines are installed on:
Series 3 G20
Series 5 G30 and G31
Series 6 G32
Series 7 G11 and G12
Series 8 G14, G15 and G16
Series X3 G01
Series X4 G02
Series X5 G05
Series X6 G06
Series X7 G07
NOTE:
External developer module! Technical support from the author of the module (M. Glazykin)
Supported software versions:
O_8KSA0-00004569-008
O_8KTB1-0000362 °F-028
O_8KWH0-00004569-004
O_8KWR0-00004755-001
O_8KWT0-00004569-010
O_8KWT0-00004569-018
O_8KYM0-00006978-007
There are over 1100 calibrations available for modification.
The module calculates checksums when saving the file.
Bosch MEVD17.2.6
Supported software:
75P9BA5B
75P9E75B
75P9EF0B
75P9EJ0B
75P9EL0B
75S9EI0B
79S9D65B
79S9E60B
Delphi DCM 6.2 VAG 2.0L
The module is designed for chip tuning of VAG cars with 2.0L diesel engines. ECU Delphi DCM6.2. The module contains more than 450 calibrations: speed limiter, engine (including smoke) and transmission torque limiters, torque model (calculation of injection quantity, torque request by the driver), injection and turbocharging control (including surge warning, compression ratios , rate of pressure increase), calibration of EGT sensors.
Allows to disable urea injection (ADBlue), particulate filter and EGR valve.
Supported software versions (any calibrations based on these software versions are supported):
DCM6.2 VAG 2.0L module:
B0A4Q (04L906056FS_2543 and others)
B0A4X (04L906056KB_4209, 04L906056KE_3772, 04L906056KL_3802 and others)
B0D02D1 (04L906056AF_5957, 04L906056LB_6177 and others)
B0E01D1 (04L906056KH_5952 and others)
B0E02D1 (04L906056KA_6163, 04L906056KB_6189, 04L906056KF_6185, 04L906056KG_6168, 04L906056KM_6186 and others)
BB69D11 (04L906056MA_6429 and others)
FA8E (04L906056PT_4156 and others)
FA8TD31 (04L906056PQ_6051, 04L906056RF_5799 and others)
FA8UD11 (04L906056SQ_6213 and others)
FA8ZD21 (04L906056NB_9970 and others)
FA92D11 (04L906056EP_9971 and others)
FC00 (04L906056ME_4742 and others)
FC02D21 (04L906056MS_6300 and others)
FC03D21 (04L906056BP_6392, 04L906056ME_6052 and others)
FC06D11 (04L906056AR_9817 and others)
FM31D11 (04L906056SK and others)
FM42D11 (04L906056AL_9970 and others)
FM43D11 (04L906056AM_9894, 04L906056QK_9874 and others)
FM45D11 (04L906056SK_9970 and others)
FM46D11 (04L906057AP_1186 and others)
FM47D61 (04L906056QE_9972 and others)
FM48D11 (04L906056SH_9973 and others)
FM49D11 (04L906056LG_9971 and others)
More than 450 calibrations are available for modification.
The module calculates checksums when saving the firmware.
Delphi DCM 6.2 VAG 1.4/1.6L
Contains from 300 to 450 (depending on the software version) calibrations: speed limiter, engine torque limiters (including smoke) and transmission, torque model (injection quantity calculation, driver torque request), injection and turbocharging control (including surge warning, compression ratios, pressure increase rate), EGT sensor calibrations.
Allows disabling urea injection (ADBlue), diesel particulate filter and EGR valve. Built-in scripts for easy disabling of “ecology”.
Please note:
Firmware for engines of other size is not supported by these modules!
DCM6.2 module VAG 1.4/1.6L:
C0B08 (04B906027B_9084 and others)
C0B12 (04B906027AP_2766, 04B906027AL_2762, 04B906027AM_2763 and others)
D0A7D (04L906056GT_3757 and others)
D0A7E (04L906056HE_5721, 04L906056HF_5722, 04L906056QT_5745 and others)
D0B17 (04L906056CL_2795 and others)
D0B1A (04L906056CL_6336, 04L906056CS_6335 and others)
GAJ0D11 (04L906056LK_5931 and others)
GB16D11 (04L906056HN 6590, 04L906056HT_5628, 04L906056HT_6591, 04L906056TH_6987, 04L906056TH_7422, 04L906056TJ_6988 and others)
GB17D11 (04L906056HN_7807, 04L906056HT_7805 and others)
More than 450 calibrations are available for modification.
The module calculates checksums when saving the firmware.
Delphi DCM 6.2 VAG 2.0L.
Price for users of Delphi DCM 6.2 VAG 1.4/1.6L
Delphi DCM 6.2 VAG 1.4/1.6L.
Price for users of Delphi DCM 6.2 VAG 2.0L
Bosch EDC17CP02 BMW
Bosch EDC17CP02 module (P_558 DDE71), (P_595 DDE71a), is designed for chip tuning of BMW cars with diesel engine N47xx. Installed on:
1st series E81, E82, E87 and E88
3rd series E90, E91, E92 and E93
5th series E60 and E61
X1 series E84
X3 series E83
Supported software versions (any calibrations based on these software versions are supported):
70L4 (P_595)
70ME (P_595)
70MJ (P_595)
70ML (P_595)
70MN (P_595)
70RW (P_595)
70S4 (P_595)
71MD (P_558)
71MJ (P_558)
71RW (P_558)
71S3 (P_558)
71S4 (P_558)
71S7 (P_558)
More than 650 calibrations are available for modification.
The module calculates checksums when saving the firmware.
KEFICO CPEGD3.20.1
The module is designed for chip tuning of Hyundai and Kia cars with T-GDI petrol engines equipped with Kefico CPEGD3.20.1 ECU. Trademarks mentioned on this site are the property of their legal owners and are used solely to identify their products and services.
These ECUs are used on cars such as:
Elantra VII (CN7)1.6T GDI
Tucson IV 1.6T GDI
Santa Fe 1.6T GDI
Ceed (CD) 1.5T GDI
K5 1.6T GDI
Sportage IV 1.6T GDI
Supported software versions:
ATRN7A1C
ATRN82DD
ATRN928C
ATRN970A
ATRN9A90
About 350 main calibrations are available for modification.
The module calculates checksums when saving the firmware.
KEFICO CPEGD3.26.1
The Kefico CPEGD3.26.1 module is designed for chip tuning of Hyundai and Kia cars (naturally aspirated GDI engines) equipped with the Kefico CPEGD3.26.1 ECU
Kefico CPEGD3.26.1 ECUs are used on cars such as:
Elantra (CN7) 1.5 GDI
Avante (CN7) 1.6 GDI
Rio 1.6 GDI
K3 1.6 GDI
Seltos (KX3) 1.5 GDI
Supported software versions, module CPEGD3.26.1:
ATRN7149
ATRN776D
ATRN9062
ATRN9710
Additional module EMS3140
This module enables professional chip tuning of Renault Duster/Kaptur/Arkana vehicles equipped with the Continental EMS3140 ECU.
Please note:
The module does NOT calculate checksums, as the areas required for calculating checksums are encrypted by all bootloaders. Therefore, checksum calculation is only possible with the bootloader that read the firmware.
All calibration variants created using supported software versions are supported.
Supported software versions:
C00540
C00570
ChipTuningPro Modules (7)
DSI TCM Geely
The module is designed for chip tuning of Geely vehicles equipped with DSI TCM automatic transmission.
Module Features:
Limited module with a limited number of calibrations!
The module calculates the COP.
Hardware versions 02F and 02R are supported.
Supported software versions:
HW02F_104_010_005_000_001
HW02F_104_010_009_000_000
HW02F_104_011_003_000_000
HW02F_104_025_001_000_000
HW02F_104_028_001_000_000
HW02F_104_028_005_000_000
HW02R_002_003_011_001_002
HW02R_002_006_008_000_000
HW02R_002_008_001_000_000
HW02R_004_003_008_000_000
HW02R_004_007_003_000_000
HW02R_004_013_002_000_000
About 50 calibrations are available for change, allowing for “easy” tuning of automatic transmissions.
Abit MD22 and MD22A
The module allows chip tuning of diesel trucks and commercial vehicles equipped with Abit MD22 and MD22A ECUs.
ECU programming is carried out using the CombiLoader.
Research by reverse-engineering of the control program allowed to create an unparalleled tool for full-fledged chip tuning of trucks and commercial vehicles equipped with ABIT MD22 ECU.
This family of ECUs is used to control diesel engines:
GAZON NEXT 53445-A32
MAZ 53603-G01
MAZ 53603-50
MAZ 53623-G01
MAZ 53623-50
MAZ 53653-G01
MAZ 53653-G50
PAZ 53423-03
TIGR-M 5347-30
URAL 53603-G01
URAL 53603-G10
URAL 53613-A20
URAL 53613-A28
URAL 53613-A120
URAL 53613-G10
URAL 53623-A24
URAL 53623-A120
URAL 53623-G10
URAL 53623-G14
URAL 53653-A120
URAL 53653-G01
URAL 53653-G50
Module features:
The module allows you to edit more than 350 calibrations required for professional chip tuning.
When saving the file, the checksums of the calibration area and control programme are automatically recalculated.
Working with firmware that does not contain the control programme code has peculiarities: when opening the file, it is necessary to load the file containing the control programme area (software). These limitations are due to the fact that the DTC mask is located in the control programme area and not in the calibrations. If the file is not loaded, calibrations can be operated, but the DTC mask will not be editable.
Supported software versions (any calibrations based on these software versions are supported):
MD22A_AEC 07.07.150 Jul 11 2022
MD22A_AEC 07.07.150 Oct 28 2022
MD22_AEC 07.07.141 Nov 19 2020
MD22_AEC 07.07.143 Jul 15 2021
MD22_AEC 07.07.145 Sep 13 2021
MD22_AEC 07.07.150 Jul 12 2022
MD22_AEC 07.07.150 Mar 28 2022
MD22_AEC 07.07.150 Oct 28 2022
MD22_AEC 07.07.152 Jul 17 2023
OnLineTuner M86 M86/M74M (VAZ)
With the help of this module and special engineering firmware of our development, it becomes possible to edit calibrations in real time (function of the “engineering” ECU). This allows you to save a lot of time when customizing your car, since all the changes you make in the editor are immediately recorded in the ECU and are reflected in the operation of the system. The use of special engineering ECUs is not required; the firmware works in serial ECUs. Communication with the ECU is carried out via a J2534-compatible adapter.
The kit includes the following engineering versions of serial firmware:
I765BL07 – suitable for writing to any M86 ECU of Lada Vesta 1.6L cars (except for pre-production versions of the ECU)
I765BH04 – for use on M86 versions installed on Lada Vesta 1.6L (except for pre-production ECU versions)
I765BM01 – for use on M86 versions installed on Lada Vesta 1.6L (except for pre-production ECU versions)
I766BH03 – for use on M86 versions installed on Lada Vesta 1.6L (except for pre-production ECU versions)
I765LA52 – for use on M86 versions installed on Lada Largus 1.6L 16V (can be used instead of any software with the LA index)
I765LE52 – for use on M86 versions installed on Lada Largus 1.6L 16V (can be used instead of any software with the LE index)
I765LG06 – for use on M86 versions installed on Lada Largus 1.6L 8V
I535GM03 – for use on the M74M (except for “anti-crisis” versions of the ECU with firmware size 851968 bytes)
I565AI07 – for use on the M74M (except for “anti-crisis” versions of the ECU with firmware size 851968 bytes)
I575GM01 – for use on the M74M (except for “anti-crisis” versions of the ECU with firmware size 851968 bytes)
I575MG07 – for use on the M74M (except for “anti-crisis” versions of the ECU with firmware size 851968 bytes)
Please note: this module works in conjunction with the M86 and M74M VAZ + MULTIMODE module (an appropriate license is required)!
The module allows for online configuration with parallel display of diagnostic information, reading and erasing error codes, switching to operation from FLASH or RAM.
M86 and M74M VAZ + MULTIMODE
OnLineTuner M86 M86/M74M (VAZ)
The module includes a constructor for creating double and triple mode files. It allows to transform any serial software into the double or triple mode version. It may be used for professional installation of gas equipment.
Module functions:
– Switching of calibration full sets;
– Switching options: via DTV, via route control, via accelerator pedal (new!)
– Locking or non-locking button (new!)
– Protection against contact rattling and interference on the switching input (new!)
– Indication of selected mode by Check Engine LED (new!)
– It is possible to turn off the fuel pump (with a programmable delay) and injectors individually for each mode.
Additional module for chip tuning ECU M74.9 GAZ
The module works with GAZ vehicles with Evotech 2.7L engines manufactured in 2024 and newer with an electronic gas pedal (EGAS), equipped with the latest M74.9.1 ECU.
Module features:
Opening firmware in SMS-Soft Container File format/ BIN format (regular binary file)
Automatic calculation of checksums when saving the firmware
Checksum fixing
Protection from reading
Automatic removal of the cycle filling limiter when saving the firmware
M74.9 GAZ firmwares are saved only in the SMS-Soft Container File format. To load such firmware, you must use only the CombiLoader loader
More than 1000 calibrations are available for editing
ChipTuningPro AECS UAZ
This module allows chip tuning of UAZ Pickup and Patriot 2023+ vehicles equipped with the Chinese AECS ECU.
The ECU is programmed using the CombiLoader. When saving the firmware, the checksums are automatically recalculated. Research using reverse engineering of the control program allowed us to create a unique tool for high-quality chip tuning of UAZ Pickup and UAZ Patriot vehicles equipped with the AECS ECU.
The module allows you to edit more than 370 ECU calibrations.
Supported software versions:
20220016_50A8NA5P01
20230022_50A8N5P02D
20230050_50A8N5P04B
20230140_50A8NA5P08
20240082_50A8NA5P14
20240145_50A8NA5P16
20240167_50A8N5P18B
Saving the original CVN in MDG1
The CVN (Calibration Verification Number) is a special checksum (number) calculated for a specific calibration area. When a vehicle under warranty is serviced at a dealership, it undergoes a mandatory check to ensure that the actual CVN, read by a diagnostic tester, matches the CVN stored in the manufacturer’s database. If these CVNs do not match, the dealer will deny warranty service due to tampering with the engine management system calibrations. Obviously, any calibration changes will inevitably result in a change to the original firmware CVN.
To fix the checksum (CVN), open the desired firmware and, without changing any calibrations, select Commands – Fix Checksum (CVN) from the menu. The firmware checksum will then be displayed in the window that appears. To fix the checksum, select the “Fix” checkbox and click “OK.” You can then edit the firmware without changing its checksum (CVN).
Please note:
This feature may not work with all MDG1 firmware versions. Please check this before purchasing by contacting technical support.
The CVN that was in the original firmware is saved. If this firmware has been modified without CVN saving mode, do not use that firmware, as its CVN will be incorrect and will not pass dealer verification.
If the checksum in the open firmware is not calculated or is incorrect, correct CVN recording will be impossible.
Base (1)
Basic Module Set
— GM ISFI-2S — VAZ vehicles, the first serial electronic control system on domestic cars
— January-4 — VAZ vehicles, the second serial electronic injection control system, a domestic analogue of the ISFI-2S system. Used since 1995
— January-5.1.x — VAZ vehicles, domestic analogue of the Bosch M1.5.4 system. Used since 1999
— January-7.2 — VAZ vehicles. Used since 2003
— January-7.2+ — VAZ vehicles. Used since 2007
— Bosch M1.5.4 — VAZ vehicles
— Bosch MP7.0 — VAZ vehicles
— Bosch M7.9.7(+) — VAZ vehicles. Used since 2001
— VS-5.1 — VAZ vehicles, functional analogue of ECM January-5.1.
— VS-5.6 — GAZ vehicles
— Mikas-5.4 — GAZ vehicles
— Mikas-7.1 — GAZ vehicles
— Mikas-7.6 — ZAZ vehicles, Daewoo
Patches (2)
BMW MG1CS201
Bosch MG1CS201 patch (DME83Tx, DME84Tx, DME86Tx, DME88Tx) for BMW and MINI vehicles with B38xx, B46хх, B48xx, B58xx, N63xx and S63xx petrol engines.
This ECU is installed in:
BMW Series 2 F22, F23, F44, F45, F46 and G42
BMW Series 3 G20 and G21
BMW Series 4 G22 and G26
BMW Series 5 G30, G31, G32, F90, and F91
BMW Series 7 G11
BMW Series 8 G14, G15 and G16
BMW Series X1 F48 and F49
BMW Series X3 G01
BMW Series X5 F95 and G05
BMW Series X6 G06
BMW Series X7 07
BMW Series Z4 G29 MINI F54, F55, F56 and F57
The patch is intended for recovering standard remote emgine start after tuning or unlocking ECUs made after mid 2020. It can also activate the remote start on the vehciles where this option was not included in the factory configuration.
Please note that the patch does not activate the remote start on the vehicles where this option was not included in the factory configuration, but is necessary for adding into the configuration.
The patch supports only FULL FLASH.
BMW MG1CS201/MG1CS024 Patch
Bosch MG1CS024 (DME86T0) patch for BMW cars with S58 petrol engines.
This ECU is installed on:
X3M series F97
X4M series F98
M3 series G80 and G81
M4 series G82 and G83
Designed to restore the standard autostart after tuning or unlocking the ECU.
Also, patches are needed to activate autostart on cars where the autostart option was not in the factory configuration of the car.
Please note that the patches do not activate autostart on cars where the autostart option was not in the factory configuration, but it is necessary when adding it to the configuration.
Patches only work with FULL FLASH.
Please note:
Patches do not activate autostart on cars where the autostart option was not included in the factory package!
